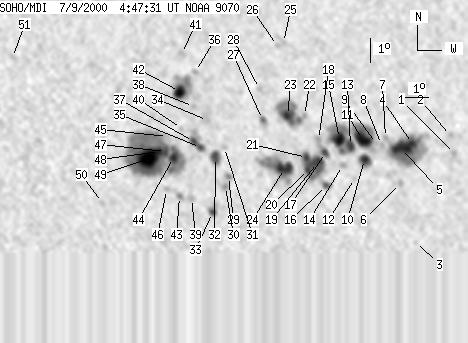

SOHO MDI 2000-07-09 04:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 218 | 1216 | 115 | 643 | 18.07 | 31.68 | 13.95 | 318.33 | 0.3425 | 213.2 | 103.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-09 04:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | 17.66 | 40.07 | 22.34 | 303.96 | 0.4385 | 1000.0 | 861.0 | |
| 0 | 4 | 0 | 2 | 18.40 | 39.99 | 22.26 | 305.50 | 0.4433 | 948.0 | 806.7 | |
| 0 | 3 | 0 | 1 | 14.10 | 37.95 | 20.22 | 298.55 | 0.3832 | 598.0 | 544.8 | |
| 6 | 141 | 3 | 77 | 18.12 | 38.25 | 20.52 | 306.97 | 0.4188 | 1195.8 | 800.2 | |
| 22 | -4 | 12 | -4 | 17.92 | 37.74 | 20.01 | 307.23 | 0.4106 | 1725.6 | 999999 | |
| 0 | 5 | 0 | 2 | 16.50 | 37.54 | 19.80 | 304.49 | 0.3958 | 951.0 | 782.4 | |
| 0 | 3 | 0 | 2 | 18.39 | 37.09 | 19.35 | 309.03 | 0.4066 | 793.0 | 722.2 | |
| 0 | 3 | 0 | 2 | 18.10 | 36.88 | 19.14 | 308.74 | 0.4014 | 904.0 | 985.0 | |
| 0 | 2 | 0 | 1 | 18.15 | 36.66 | 18.93 | 309.13 | 0.3991 | 904.0 | 830.8 | |
| 9 | 23 | 5 | 12 | 17.51 | 36.07 | 18.33 | 308.63 | 0.3856 | 1598.0 | 1044.0 | |
| 21 | 167 | 11 | 90 | 18.33 | 36.07 | 18.33 | 310.34 | 0.3934 | 1607.0 | 698.6 | |
| 0 | 3 | 0 | 2 | 16.74 | 35.55 | 17.82 | 307.71 | 0.3720 | 617.0 | 574.6 | |
| 8 | -11 | 5 | -11 | 18.09 | 35.51 | 17.78 | 310.67 | 0.3844 | 1487.2 | 999999 | |
| 0 | 5 | 0 | 3 | 17.28 | 35.08 | 17.35 | 309.60 | 0.3712 | 1021.0 | 886.0 | |
| 13 | -11 | 7 | -11 | 18.39 | 35.06 | 17.33 | 311.97 | 0.3818 | 1676.0 | 999999 | |
| 4 | 10 | 2 | 6 | 16.48 | 34.32 | 16.58 | 309.02 | 0.3538 | -1192.6 | -719.3 | |
| 4 | 10 | 2 | 5 | 17.83 | 34.40 | 16.66 | 311.86 | 0.3681 | 930.9 | 661.4 | |
| 0 | 12 | 0 | 7 | 18.36 | 34.15 | 16.41 | 313.40 | 0.3707 | 849.0 | 428.5 | |
| 8 | 71 | 4 | 38 | 17.43 | 34.01 | 16.28 | 311.62 | 0.3594 | 1521.2 | 704.4 | |
| 5 | -19 | 3 | -19 | 17.15 | 33.60 | 15.87 | 311.71 | 0.3515 | -248.8 | 999999 | |
| 5 | -19 | 3 | -19 | 17.64 | 33.56 | 15.82 | 312.86 | 0.3560 | 879.7 | 999999 | |
| 0 | 4 | 0 | 2 | 19.36 | 33.63 | 15.90 | 316.26 | 0.3755 | 761.0 | 546.5 | |
| 7 | 71 | 4 | 38 | 19.37 | 32.89 | 15.16 | 317.59 | 0.3674 | 1603.7 | 811.6 | |
| 16 | 88 | 9 | 46 | 17.21 | 32.57 | 14.84 | 313.66 | 0.3397 | 1590.6 | 760.4 | |
| 0 | 3 | 0 | 1 | 22.40 | 33.03 | 15.30 | 322.73 | 0.4046 | 812.0 | 722.7 | |
| 0 | 3 | 0 | 1 | 22.27 | 32.75 | 15.02 | 323.02 | 0.4004 | 872.0 | 643.4 | |
| 2 | 9 | 1 | 5 | 19.22 | 31.80 | 14.06 | 319.36 | 0.3539 | -1021.5 | -530.1 | |
| 0 | 6 | 0 | 3 | 20.50 | 31.78 | 14.05 | 321.78 | 0.3692 | 627.0 | 451.8 | |
| 0 | 5 | 0 | 2 | 16.92 | 30.16 | 12.43 | 317.91 | 0.3086 | -1065.0 | -896.2 | |
| 0 | 7 | 0 | 4 | 16.51 | 30.01 | 12.28 | 317.32 | 0.3020 | -1074.0 | -952.7 | |
| 0 | 5 | 0 | 3 | 18.10 | 30.08 | 12.34 | 320.67 | 0.3220 | -572.0 | -395.0 | |
| 10 | 21 | 5 | 11 | 17.70 | 29.66 | 11.93 | 320.75 | 0.3127 | -1305.2 | -830.3 | |
| 4 | 15 | 2 | 8 | 15.47 | 29.40 | 11.67 | 316.18 | 0.2827 | 888.9 | 324.6 | |
| 0 | 15 | 0 | 8 | 19.22 | 29.43 | 11.70 | 324.33 | 0.3297 | -609.0 | -688.5 | |
| 4 | 30 | 2 | 16 | 18.11 | 29.05 | 11.32 | 323.04 | 0.3117 | -1211.6 | -950.2 | |
| 0 | 4 | 0 | 2 | 21.24 | 29.07 | 11.33 | 328.64 | 0.3535 | 696.0 | 692.0 | |
| 5 | -35 | 2 | -35 | 18.36 | 28.77 | 11.04 | 324.21 | 0.3122 | -1381.2 | 999999 | |
| 0 | 5 | 0 | 2 | 19.80 | 28.87 | 11.14 | 326.67 | 0.3322 | -828.0 | -579.0 | |
| 0 | 9 | 0 | 5 | 16.04 | 28.55 | 10.82 | 319.71 | 0.2802 | -791.0 | -547.1 | |
| 0 | 3 | 0 | 1 | 18.90 | 28.30 | 10.57 | 326.40 | 0.3149 | -898.0 | -726.8 | |
| 0 | 7 | 0 | 4 | 22.00 | 28.52 | 10.78 | 331.00 | 0.3594 | 561.0 | 382.5 | |
| 12 | 61 | 6 | 32 | 20.43 | 28.31 | 10.58 | 329.03 | 0.3359 | -1390.5 | -210.0 | |
| 0 | 7 | 0 | 3 | 16.13 | 28.05 | 10.32 | 321.21 | 0.2759 | -1005.0 | -984.4 | |
| 6 | 350 | 3 | 181 | 17.72 | 27.89 | 10.15 | 325.14 | 0.2951 | -1756.5 | -718.7 | |
| 0 | 7 | 0 | 4 | 18.58 | 27.68 | 9.95 | 327.35 | 0.3049 | -238.0 | -302.9 | |
| 0 | 5 | 0 | 3 | 16.42 | 27.52 | 9.79 | 323.32 | 0.2743 | -773.0 | -635.7 | |
| 5 | -44 | 2 | -44 | 17.97 | 27.56 | 9.83 | 326.49 | 0.2954 | -1502.6 | 999999 | |
| 6 | -44 | 3 | -44 | 17.97 | 27.31 | 9.58 | 327.16 | 0.2932 | -1506.4 | 999999 | |
| 36 | -44 | 19 | -44 | 17.69 | 26.83 | 9.10 | 327.92 | 0.2850 | -2128.7 | 999999 | |
| 0 | 5 | 0 | 3 | 15.92 | 24.83 | 7.10 | 330.49 | 0.2424 | -760.0 | -629.3 | |
| 0 | 5 | 0 | 3 | 21.89 | 21.24 | 3.50 | 349.64 | 0.3167 | 404.0 | 338.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
