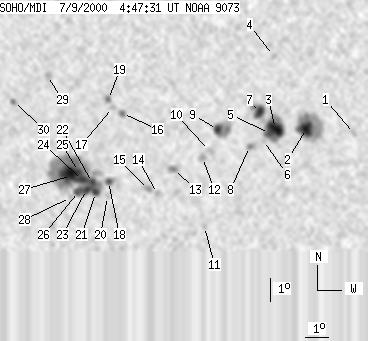

SOHO MDI 2000-07-09 04:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114 | 567 | 62 | 304 | -19.57 | 15.66 | -2.07 | 175.59 | 0.4054 | 249.9 | 118.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-09 04:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 3 | -18.71 | 23.47 | 5.74 | 193.89 | 0.3962 | 924.0 | 767.6 | |
| 12 | 90 | 7 | 48 | -18.48 | 21.45 | 3.72 | 189.21 | 0.3861 | -1730.7 | -726.1 | |
| 17 | 65 | 9 | 35 | -18.48 | 20.16 | 2.42 | 186.03 | 0.3832 | -1696.7 | -858.6 | |
| 0 | 4 | 0 | 2 | -15.38 | 20.03 | 2.30 | 186.71 | 0.3327 | 876.0 | 737.2 | |
| 5 | -3 | 3 | -3 | -18.69 | 19.91 | 2.18 | 185.37 | 0.3863 | -1117.5 | 999999 | |
| 0 | 3 | 0 | 2 | -18.99 | 19.66 | 1.93 | 184.69 | 0.3907 | -421.0 | -435.6 | |
| 10 | 27 | 5 | 14 | -17.79 | 19.48 | 1.75 | 184.51 | 0.3711 | -1453.3 | -939.8 | |
| 0 | 6 | 0 | 3 | -19.25 | 19.08 | 1.34 | 183.23 | 0.3942 | -970.0 | -800.4 | |
| 6 | 34 | 3 | 18 | -18.52 | 17.73 | 0.00 | 180.00 | 0.3818 | 1444.3 | 744.6 | |
| 0 | 8 | 0 | 4 | -19.42 | 17.40 | -0.33 | 179.20 | 0.3964 | -984.0 | -892.3 | |
| 0 | 4 | 0 | 2 | -22.74 | 17.18 | -0.56 | 178.85 | 0.4492 | 752.0 | 566.3 | |
| 0 | 9 | 0 | 5 | -19.72 | 17.10 | -0.63 | 178.52 | 0.4014 | -960.0 | -795.8 | |
| 0 | 8 | 0 | 4 | -20.24 | 15.88 | -1.86 | 175.74 | 0.4107 | -733.0 | -657.4 | |
| 0 | 4 | 0 | 2 | -21.29 | 15.18 | -2.55 | 174.42 | 0.4282 | 836.0 | 778.0 | |
| 0 | 5 | 0 | 3 | -21.12 | 14.80 | -2.93 | 173.55 | 0.4261 | 961.0 | 827.9 | |
| 0 | 8 | 0 | 4 | -17.84 | 13.78 | -3.95 | 169.92 | 0.3765 | -1280.0 | -772.0 | |
| 0 | 5 | 0 | 2 | -17.59 | 13.37 | -4.36 | 168.76 | 0.3737 | -731.0 | -680.8 | |
| 4 | 10 | 2 | 5 | -20.78 | 13.11 | -4.62 | 169.74 | 0.4247 | 1140.2 | 765.0 | |
| 0 | 6 | 0 | 3 | -17.25 | 13.21 | -4.52 | 168.17 | 0.3688 | -1406.0 | -1039.3 | |
| 0 | 2 | 0 | 1 | -21.43 | 13.05 | -4.68 | 169.90 | 0.4350 | 495.0 | 453.8 | |
| 4 | 246 | 2 | 135 | -21.26 | 12.54 | -5.19 | 168.75 | 0.4339 | 695.5 | 757.2 | |
| 5 | -21 | 3 | -21 | -20.82 | 12.43 | -5.30 | 168.29 | 0.4275 | 1199.8 | 999999 | |
| 4 | -21 | 2 | -21 | -21.13 | 12.16 | -5.57 | 167.88 | 0.4331 | 1059.6 | 999999 | |
| 36 | -21 | 20 | -21 | -20.74 | 12.01 | -5.72 | 167.35 | 0.4276 | 1588.1 | 999999 | |
| 5 | -21 | 3 | -21 | -20.35 | 11.85 | -5.88 | 166.79 | 0.4221 | 2006.8 | 999999 | |
| 6 | -21 | 3 | -21 | -21.22 | 11.82 | -5.91 | 167.21 | 0.4356 | 958.3 | 999999 | |
| -24 | -21 | -24 | -21 | -20.53 | 11.55 | -6.18 | 166.24 | 0.4259 | 999999 | 999999 | |
| 0 | 2 | 0 | 1 | -21.49 | 11.47 | -6.27 | 166.63 | 0.4410 | 449.0 | 458.0 | |
| 0 | 10 | 0 | 5 | -16.25 | 10.70 | -7.03 | 161.09 | 0.3640 | 910.0 | 644.8 | |
| 0 | 5 | 0 | 3 | -17.37 | 9.24 | -8.49 | 158.66 | 0.3890 | 1124.0 | 837.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
