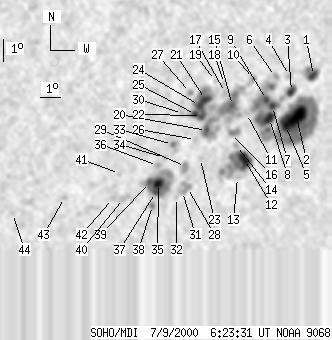

SOHO MDI 2000-07-09 06:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 138 | 1010 | 85 | 644 | -18.38 | 49.00 | 32.15 | 233.79 | 0.6280 | -496.7 | -190.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-09 06:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8 | 29 | 5 | 19 | -16.28 | 52.15 | 35.30 | 239.09 | 0.6488 | -881.8 | -796.4 | |
| 34 | 422 | 22 | 274 | -17.99 | 51.66 | 34.81 | 236.42 | 0.6540 | -1353.4 | -532.8 | |
| 8 | -2 | 5 | -2 | -16.92 | 51.17 | 34.32 | 237.54 | 0.6416 | -1034.8 | 999999 | |
| 0 | 5 | 0 | 3 | -16.23 | 50.93 | 34.08 | 238.32 | 0.6346 | -1118.0 | -830.3 | |
| 10 | -2 | 6 | -2 | -18.36 | 51.19 | 34.34 | 235.59 | 0.6512 | -1306.2 | 999999 | |
| 0 | 6 | 0 | 4 | -16.25 | 50.24 | 33.39 | 237.80 | 0.6267 | -940.0 | -859.7 | |
| 4 | -2 | 2 | -2 | -17.52 | 50.35 | 33.50 | 236.11 | 0.6363 | -1383.6 | 999999 | |
| 10 | -2 | 6 | -2 | -18.03 | 50.31 | 33.46 | 235.39 | 0.6393 | -1387.9 | 999999 | |
| 4 | -2 | 2 | -2 | -17.21 | 49.99 | 33.14 | 236.27 | 0.6301 | -1442.5 | 999999 | |
| 0 | 9 | 0 | 5 | -16.29 | 49.17 | 32.32 | 236.93 | 0.6146 | -1064.0 | -736.9 | |
| 0 | 3 | 0 | 2 | -17.77 | 49.11 | 32.26 | 234.82 | 0.6242 | -853.0 | -883.7 | |
| 13 | 92 | 9 | 59 | -19.75 | 49.44 | 32.59 | 232.42 | 0.6420 | -1173.3 | -761.0 | |
| 0 | 3 | 0 | 2 | -20.52 | 49.27 | 32.42 | 231.28 | 0.6459 | -355.0 | -407.4 | |
| 0 | 4 | 0 | 3 | -19.13 | 48.90 | 32.05 | 232.81 | 0.6317 | -877.0 | -732.3 | |
| 5 | 227 | 3 | 140 | -17.40 | 48.35 | 31.50 | 234.72 | 0.6130 | -237.7 | 279.9 | |
| 0 | 12 | 0 | 8 | -18.60 | 48.54 | 31.69 | 233.23 | 0.6239 | -756.0 | -764.3 | |
| 0 | 5 | 0 | 3 | -16.83 | 47.90 | 31.05 | 235.15 | 0.6039 | 757.0 | 683.1 | |
| 0 | 3 | 0 | 2 | -16.45 | 47.79 | 30.94 | 235.60 | 0.5998 | 513.0 | 345.5 | |
| 0 | 3 | 0 | 2 | -16.31 | 47.33 | 30.48 | 235.43 | 0.5934 | 809.0 | 670.9 | |
| 6 | -15 | 4 | -15 | -18.43 | 47.29 | 30.44 | 232.40 | 0.6088 | 479.5 | 999999 | |
| 8 | -15 | 5 | -15 | -17.10 | 46.99 | 30.14 | 234.00 | 0.5954 | 1292.1 | 999999 | |
| 5 | -15 | 3 | -15 | -17.77 | 46.92 | 30.07 | 232.99 | 0.5998 | 742.2 | 999999 | |
| 0 | 3 | 0 | 2 | -19.63 | 47.24 | 30.39 | 230.74 | 0.6176 | -478.0 | -399.6 | |
| 4 | -15 | 2 | -15 | -17.34 | 46.75 | 29.90 | 233.44 | 0.5945 | 1545.2 | 999999 | |
| 4 | -15 | 3 | -15 | -17.72 | 46.62 | 29.77 | 232.80 | 0.5960 | 1148.5 | 999999 | |
| 0 | 4 | 0 | 2 | -18.79 | 46.83 | 29.98 | 231.50 | 0.6067 | 467.0 | 569.5 | |
| 0 | 5 | 0 | 3 | -16.77 | 46.22 | 29.37 | 233.79 | 0.5841 | 1264.0 | 801.0 | |
| 0 | 11 | 0 | 7 | -20.87 | 46.87 | 30.02 | 228.78 | 0.6238 | -177.0 | 203.7 | |
| 0 | 11 | 0 | 7 | -19.95 | 46.58 | 29.73 | 229.72 | 0.6132 | 351.0 | -130.3 | |
| 0 | 5 | 0 | 3 | -17.66 | 45.99 | 29.14 | 232.33 | 0.5884 | 882.0 | 543.7 | |
| 0 | 7 | 0 | 4 | -21.03 | 46.66 | 29.81 | 228.38 | 0.6230 | 668.0 | 651.7 | |
| 0 | 2 | 0 | 2 | -21.29 | 46.43 | 29.58 | 227.84 | 0.6227 | 460.0 | 428.2 | |
| 0 | 12 | 0 | 8 | -18.97 | 45.75 | 28.90 | 230.28 | 0.5965 | 1299.0 | 901.7 | |
| 0 | 4 | 0 | 2 | -19.52 | 45.48 | 28.63 | 229.28 | 0.5980 | 759.0 | 733.7 | |
| 7 | 88 | 4 | 55 | -20.64 | 45.41 | 28.56 | 227.73 | 0.6069 | 1208.4 | 494.8 | |
| 0 | 4 | 0 | 3 | -19.86 | 45.21 | 28.36 | 228.57 | 0.5980 | 968.0 | 849.7 | |
| 4 | -35 | 2 | -35 | -21.03 | 45.35 | 28.50 | 227.16 | 0.6096 | 706.0 | 999999 | |
| 0 | 7 | 0 | 5 | -21.60 | 45.32 | 28.47 | 226.41 | 0.6142 | 803.0 | 603.8 | |
| 4 | -35 | 2 | -35 | -20.58 | 44.97 | 28.12 | 227.38 | 0.6018 | 1331.5 | 999999 | |
| 0 | 12 | 0 | 7 | -21.24 | 43.85 | 27.00 | 225.42 | 0.5964 | 866.0 | 723.1 | |
| 0 | 3 | 0 | 2 | -20.15 | 43.45 | 26.60 | 226.44 | 0.5823 | 893.0 | 727.2 | |
| 0 | 3 | 0 | 2 | -21.23 | 43.33 | 26.48 | 224.90 | 0.5910 | 796.0 | 756.9 | |
| 0 | 3 | 0 | 2 | -21.12 | 41.05 | 24.20 | 222.56 | 0.5674 | 933.0 | 790.6 | |
| 0 | 3 | 0 | 2 | -21.75 | 38.75 | 21.90 | 219.03 | 0.5523 | 621.0 | 622.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
