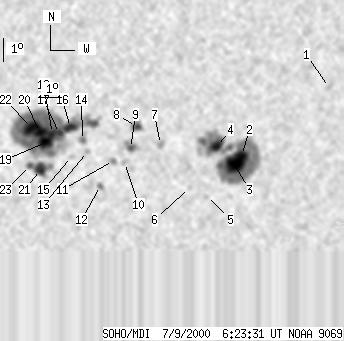

SOHO MDI 2000-07-09 06:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 140 | 806 | 75 | 444 | -17.62 | 31.26 | 14.41 | 212.47 | 0.4382 | 207.5 | 75.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-09 06:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -15.32 | 39.80 | 22.95 | 229.35 | 0.4977 | -610.0 | -694.3 | |
| 12 | 305 | 7 | 172 | -18.10 | 36.22 | 19.37 | 220.44 | 0.4880 | -1658.8 | -672.3 | |
| 28 | -2 | 16 | -2 | -18.48 | 35.95 | 19.10 | 219.53 | 0.4897 | -1772.3 | 999999 | |
| 10 | -2 | 5 | -2 | -17.69 | 35.07 | 18.22 | 219.32 | 0.4721 | -1614.4 | 999999 | |
| 0 | 3 | 0 | 2 | -19.83 | 34.87 | 18.02 | 216.16 | 0.4953 | -614.0 | -521.7 | |
| 0 | 3 | 0 | 2 | -19.42 | 34.08 | 17.23 | 215.47 | 0.4833 | -468.0 | -527.6 | |
| 0 | 6 | 0 | 4 | -17.55 | 32.63 | 15.78 | 215.58 | 0.4473 | -1158.0 | -973.5 | |
| 6 | 16 | 3 | 9 | -16.77 | 31.53 | 14.68 | 214.74 | 0.4275 | -1136.5 | -647.1 | |
| 3 | 18 | 2 | 10 | -17.70 | 31.35 | 14.50 | 213.16 | 0.4379 | -1087.0 | -748.0 | |
| 0 | 3 | 0 | 2 | -18.29 | 31.14 | 14.29 | 212.02 | 0.4438 | -770.0 | -498.6 | |
| 0 | 7 | 0 | 4 | -18.20 | 30.66 | 13.81 | 211.27 | 0.4386 | -881.0 | -644.9 | |
| 0 | 6 | 0 | 3 | -19.27 | 30.19 | 13.34 | 209.14 | 0.4491 | 517.0 | 630.9 | |
| 0 | 4 | 0 | 2 | -17.80 | 29.51 | 12.66 | 209.62 | 0.4241 | 564.0 | 379.3 | |
| 0 | 10 | 0 | 5 | -17.33 | 29.27 | 12.42 | 209.73 | 0.4157 | 888.0 | 605.0 | |
| 0 | 5 | 0 | 3 | -18.00 | 28.85 | 12.00 | 208.08 | 0.4218 | 666.0 | 527.0 | |
| 10 | 375 | 5 | 202 | -16.77 | 28.72 | 11.87 | 209.34 | 0.4038 | 1476.6 | 747.8 | |
| 5 | -16 | 2 | -16 | -17.02 | 28.27 | 11.42 | 208.10 | 0.4038 | 1320.1 | 999999 | |
| 7 | -16 | 4 | -16 | -17.01 | 27.98 | 11.13 | 207.49 | 0.4015 | 1691.9 | 999999 | |
| 14 | -16 | 7 | -16 | -17.39 | 27.70 | 10.85 | 206.47 | 0.4049 | 1530.5 | 999999 | |
| 11 | -16 | 6 | -16 | -16.96 | 27.47 | 10.62 | 206.47 | 0.3971 | 1952.6 | 999999 | |
| 13 | 41 | 7 | 22 | -18.54 | 27.56 | 10.71 | 204.91 | 0.4202 | 1140.2 | 690.0 | |
| 19 | -16 | 10 | -16 | -16.75 | 27.08 | 10.23 | 205.88 | 0.3912 | 2169.8 | 999999 | |
| 2 | -21 | 1 | -21 | -18.36 | 27.13 | 10.28 | 204.20 | 0.4148 | 1074.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
