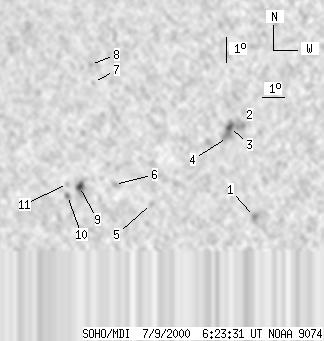

SOHO MDI 2000-07-09 06:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 85 | 0 | 47 | 13.86 | 352.42 | -24.43 | 65.53 | 0.4427 | 351.7 | 382.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-09 06:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 3 | 11.37 | 356.34 | -20.51 | 68.49 | 0.3707 | 1157.0 | 964.2 | |
| 0 | 18 | 0 | 10 | 15.01 | 355.49 | -21.36 | 60.60 | 0.4055 | 1006.0 | 809.4 | |
| 0 | 11 | 0 | 6 | 14.92 | 354.93 | -21.92 | 61.38 | 0.4127 | 1051.0 | 865.9 | |
| 0 | 14 | 0 | 7 | 14.51 | 354.88 | -21.97 | 62.32 | 0.4107 | 964.0 | 748.7 | |
| 0 | 4 | 0 | 2 | 11.78 | 351.79 | -25.06 | 70.81 | 0.4409 | 525.0 | 435.1 | |
| 0 | 6 | 0 | 3 | 12.49 | 350.04 | -26.81 | 70.32 | 0.4695 | 428.0 | 256.8 | |
| 0 | 3 | 0 | 2 | 16.56 | 348.52 | -28.33 | 63.38 | 0.5108 | 612.0 | 525.7 | |
| 0 | 3 | 0 | 2 | 17.29 | 348.26 | -28.59 | 62.24 | 0.5184 | 530.0 | 386.8 | |
| 0 | 12 | 0 | 7 | 12.36 | 348.46 | -28.39 | 71.42 | 0.4920 | -858.0 | -558.2 | |
| 0 | 5 | 0 | 3 | 11.98 | 347.95 | -28.90 | 72.41 | 0.4980 | -916.0 | -610.2 | |
| 0 | 3 | 0 | 2 | 12.46 | 347.89 | -28.96 | 71.50 | 0.5006 | -630.0 | -586.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
