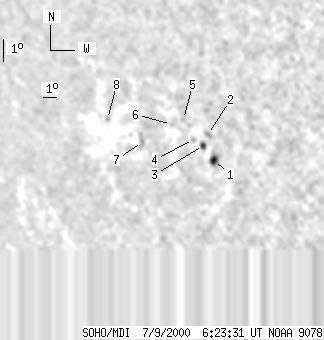

SOHO MDI 2000-07-09 06:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2 | 53 | 2 | 45 | -12.50 | 323.65 | -53.20 | 108.10 | 0.8239 | -498.4 | -148.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-09 06:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2 | 12 | 2 | 10 | -13.15 | 325.87 | -50.98 | 109.51 | 0.8048 | -690.6 | -597.7 | |
| 0 | 7 | 0 | 5 | -12.08 | 325.78 | -51.07 | 108.19 | 0.8029 | -763.0 | -625.0 | |
| 0 | 7 | 0 | 6 | -12.56 | 325.39 | -51.46 | 108.64 | 0.8079 | -623.0 | -418.8 | |
| 0 | 4 | 0 | 4 | -12.34 | 324.79 | -52.06 | 108.21 | 0.8132 | -367.0 | -266.0 | |
| 0 | 3 | 0 | 2 | -11.55 | 324.35 | -52.50 | 107.13 | 0.8156 | -336.0 | -300.0 | |
| 0 | 3 | 0 | 2 | -11.80 | 323.47 | -53.38 | 107.19 | 0.8246 | -364.0 | -243.5 | |
| 0 | 13 | 0 | 12 | -12.63 | 321.17 | -55.68 | 107.55 | 0.8473 | 574.0 | 503.8 | |
| 0 | 4 | 0 | 4 | -11.86 | 318.82 | -58.03 | 106.10 | 0.8661 | 312.0 | 261.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
