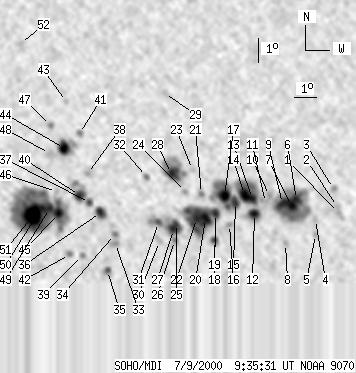

SOHO MDI 2000-07-09 09:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 204 | 1203 | 113 | 644 | 18.10 | 32.30 | 17.21 | 312.42 | 0.3798 | 232.7 | 124.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-09 09:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 9 | 0 | 5 | 17.53 | 40.09 | 25.00 | 301.04 | 0.4723 | 844.0 | 714.7 | |
| 0 | 2 | 0 | 1 | 17.78 | 40.08 | 24.99 | 301.51 | 0.4739 | 890.0 | 844.7 | |
| 0 | 5 | 0 | 3 | 18.51 | 40.01 | 24.92 | 302.96 | 0.4782 | 815.0 | 724.8 | |
| 0 | 6 | 0 | 3 | 17.27 | 39.00 | 23.92 | 301.55 | 0.4561 | 596.0 | 357.5 | |
| 0 | 4 | 0 | 2 | 16.66 | 38.92 | 23.83 | 300.42 | 0.4508 | -333.0 | -276.6 | |
| 6 | 149 | 4 | 82 | 18.11 | 38.26 | 23.17 | 303.92 | 0.4525 | 1203.7 | 714.8 | |
| 25 | -6 | 14 | -6 | 17.87 | 38.00 | 22.91 | 303.73 | 0.4473 | 1614.7 | 999999 | |
| 0 | 5 | 0 | 3 | 16.33 | 37.53 | 22.44 | 301.11 | 0.4297 | 694.0 | 590.5 | |
| -7 | -6 | -7 | -6 | 17.96 | 37.60 | 22.52 | 304.32 | 0.4429 | 999999 | 999999 | |
| 0 | 4 | 0 | 2 | 18.30 | 37.06 | 21.98 | 305.59 | 0.4387 | 801.0 | 712.5 | |
| 0 | 8 | 0 | 5 | 18.02 | 36.85 | 21.76 | 305.28 | 0.4337 | 894.0 | 835.4 | |
| 9 | 22 | 5 | 12 | 17.59 | 36.30 | 21.21 | 305.03 | 0.4230 | 1566.4 | 996.9 | |
| 6 | 187 | 3 | 102 | 18.20 | 36.29 | 21.20 | 306.28 | 0.4280 | 1326.2 | 640.2 | |
| 14 | -13 | 8 | -13 | 18.37 | 35.95 | 20.87 | 307.02 | 0.4252 | 1569.6 | 999999 | |
| 6 | -13 | 4 | -13 | 18.05 | 35.51 | 20.42 | 306.93 | 0.4168 | 1432.0 | 999999 | |
| 0 | 5 | 0 | 3 | 17.16 | 35.14 | 20.05 | 305.56 | 0.4044 | 1150.0 | 988.4 | |
| 10 | -13 | 6 | -13 | 18.35 | 35.06 | 19.97 | 308.10 | 0.4137 | 1668.6 | 999999 | |
| 5 | 121 | 3 | 65 | 17.62 | 34.57 | 19.49 | 307.25 | 0.4012 | 1080.9 | 597.0 | |
| 4 | 10 | 2 | 6 | 16.53 | 34.41 | 19.33 | 305.12 | 0.3895 | -1011.3 | -645.7 | |
| 10 | -18 | 6 | -18 | 17.43 | 34.11 | 19.03 | 307.46 | 0.3935 | 1614.6 | 999999 | |
| 0 | 6 | 0 | 3 | 18.45 | 34.05 | 18.97 | 309.66 | 0.4022 | 928.0 | 726.6 | |
| 7 | -18 | 4 | -18 | 17.44 | 33.72 | 18.63 | 308.02 | 0.3886 | 1678.5 | 999999 | |
| 0 | 5 | 0 | 3 | 19.45 | 33.77 | 18.68 | 312.02 | 0.4083 | 621.0 | 494.0 | |
| 0 | 5 | 0 | 3 | 18.55 | 33.36 | 18.27 | 310.85 | 0.3946 | -646.0 | -546.7 | |
| 3 | 72 | 2 | 39 | 17.25 | 32.82 | 17.74 | 308.91 | 0.3756 | 1123.4 | 872.7 | |
| 0 | 7 | 0 | 4 | 16.56 | 32.67 | 17.59 | 307.61 | 0.3672 | 102.0 | -161.6 | |
| 8 | -25 | 4 | -25 | 17.01 | 32.67 | 17.59 | 308.61 | 0.3713 | 1701.1 | 999999 | |
| 5 | 66 | 3 | 35 | 19.30 | 32.82 | 17.74 | 313.14 | 0.3957 | 1612.7 | 811.3 | |
| 0 | 5 | 0 | 3 | 22.62 | 32.92 | 17.84 | 318.96 | 0.4324 | 810.0 | 610.9 | |
| 0 | 9 | 0 | 5 | 16.54 | 32.02 | 16.93 | 308.54 | 0.3585 | -539.0 | -361.3 | |
| 2 | -25 | 1 | -25 | 17.31 | 32.05 | 16.96 | 310.22 | 0.3664 | 1270.2 | 999999 | |
| 0 | 6 | 0 | 3 | 19.20 | 31.71 | 16.63 | 314.69 | 0.3818 | -790.0 | -567.1 | |
| 0 | 6 | 0 | 3 | 16.49 | 30.12 | 15.04 | 311.62 | 0.3343 | -935.0 | -854.8 | |
| 0 | 7 | 0 | 3 | 16.85 | 30.11 | 15.03 | 312.49 | 0.3379 | -958.0 | -784.7 | |
| 2 | 7 | 1 | 3 | 15.40 | 29.70 | 14.62 | 309.75 | 0.3178 | 955.5 | 772.0 | |
| 8 | 18 | 4 | 10 | 17.76 | 29.58 | 14.50 | 315.48 | 0.3416 | -1336.0 | -912.6 | |
| 3 | 52 | 2 | 27 | 18.18 | 29.15 | 14.06 | 317.21 | 0.3413 | -1159.8 | -810.4 | |
| 0 | 4 | 0 | 2 | 19.36 | 29.16 | 14.08 | 319.58 | 0.3554 | -832.0 | -690.2 | |
| 0 | 6 | 0 | 3 | 16.02 | 28.68 | 13.60 | 313.27 | 0.3117 | -684.0 | -496.7 | |
| 8 | -37 | 4 | -37 | 18.47 | 28.74 | 13.66 | 318.62 | 0.3403 | -1490.6 | 999999 | |
| 0 | 4 | 0 | 2 | 21.02 | 28.97 | 13.88 | 322.99 | 0.3736 | 562.0 | 674.0 | |
| 0 | 5 | 0 | 2 | 16.07 | 28.14 | 13.05 | 314.52 | 0.3057 | -1242.0 | -948.2 | |
| 0 | 4 | 0 | 2 | 22.36 | 28.53 | 13.44 | 326.04 | 0.3865 | 724.0 | 526.7 | |
| 10 | 37 | 5 | 20 | 20.41 | 28.26 | 13.17 | 323.31 | 0.3591 | -1438.9 | -612.6 | |
| 8 | 304 | 4 | 158 | 17.75 | 27.79 | 12.70 | 319.10 | 0.3213 | -1576.4 | -763.1 | |
| 0 | 5 | 0 | 3 | 18.65 | 27.77 | 12.68 | 321.01 | 0.3321 | -744.0 | -557.0 | |
| 0 | 5 | 0 | 2 | 21.37 | 27.73 | 12.65 | 326.02 | 0.3665 | 701.0 | 479.7 | |
| 0 | 11 | 0 | 6 | 20.21 | 27.59 | 12.51 | 324.34 | 0.3501 | -261.0 | -454.5 | |
| 11 | -45 | 6 | -45 | 17.96 | 27.42 | 12.33 | 320.35 | 0.3199 | -1569.0 | 999999 | |
| -49 | -45 | -49 | -45 | 18.00 | 27.08 | 12.00 | 321.21 | 0.3169 | 999999 | 999999 | |
| 34 | -45 | 18 | -45 | 17.72 | 26.72 | 11.64 | 321.44 | 0.3096 | -2109.8 | 999999 | |
| 0 | 10 | 0 | 6 | 24.83 | 26.73 | 11.65 | 332.98 | 0.4050 | 825.0 | 366.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
