groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

9077 191 1222 234 1478 18.22 309.41 -65.68 71.64 0.9105 -337.9 -319.8


previous   or   next   observation for the same group / back to the solar disc

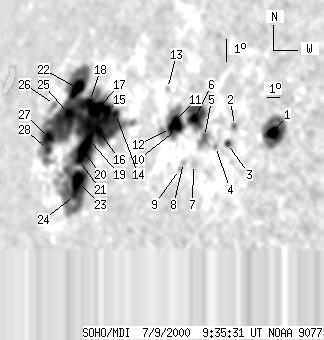

SOHO MDI 2000-07-09 09:35:31 UT
No observation available


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 12 87 10 72 18.92 323.22 -51.86 69.08 0.7987 1050.9 425.2
2 0 5 0 4 19.07 320.48 -54.60 69.42 0.8251 456.0 408.4
3 2 6 2 6 18.32 320.33 -54.75 70.35 0.8254 456.0 342.2
4 0 4 0 3 18.15 319.53 -55.55 70.68 0.8325 309.0 282.9
5 0 19 0 17 18.51 318.53 -56.56 70.41 0.8420 -392.0 -412.1
6 8 157 8 152 19.19 317.38 -57.70 69.77 0.8528 -981.6 -325.2
7 0 6 0 6 17.34 318.27 -56.82 71.82 0.8430 -422.0 -347.1
8 0 4 0 4 17.38 317.47 -57.61 71.88 0.8500 -516.0 -565.3
9 0 3 0 3 17.08 317.31 -57.78 72.25 0.8511 -666.0 -489.5
10 14 -6 13 -6 18.72 316.29 -58.80 70.48 0.8616 -760.3 999999
11 -10 -6 -10 -6 19.03 315.94 -59.14 70.16 0.8647 999999 999999
12 6 -6 6 -6 18.69 315.73 -59.35 70.58 0.8661 -517.0 999999
13 0 4 0 4 20.28 314.49 -60.59 68.92 0.8777 -286.0 -180.4
14 3 916 3 1191 19.01 310.58 -64.50 70.76 0.9056 -111.3 -370.7
15 9 -14 11 -14 19.09 309.73 -65.36 70.76 0.9115 -36.6 999999
16 6 -14 8 -14 18.21 309.57 -65.51 71.74 0.9121 -1076.9 999999
17 20 -14 24 -14 19.06 308.60 -66.48 70.87 0.9190 70.1 999999
18 7 -14 9 -14 19.34 307.62 -67.47 70.65 0.9254 150.9 999999
19 6 -14 7 -14 17.83 308.82 -66.27 72.20 0.9170 -1139.2 999999
20 17 -14 21 -14 17.40 308.50 -66.58 72.69 0.9189 -902.1 999999
21 6 -14 7 -14 16.94 308.41 -66.67 73.20 0.9193 -605.1 999999
22 20 -14 28 -14 19.77 305.84 -69.25 70.29 0.9362 340.4 999999
23 19 -14 24 -14 16.09 308.78 -66.30 74.10 0.9165 -742.7 999999
24 5 -14 7 -14 15.52 308.84 -66.24 74.72 0.9159 -558.9 999999
25 9 -14 13 -14 18.72 305.74 -69.35 71.42 0.9365 -934.6 999999
26 0 11 0 16 18.98 303.73 -71.36 71.25 0.9477 -60.0 -212.3
27 17 -14 26 -14 17.63 304.25 -70.83 72.65 0.9445 -261.0 999999
28 5 -14 7 -14 17.16 304.56 -70.53 73.14 0.9427 -180.0 999999


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
