groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

9068 117 915 76 602 -18.46 49.31 35.11 235.90 0.6609 -575.6 -228.4


previous   or   next   observation for the same group / back to the solar disc

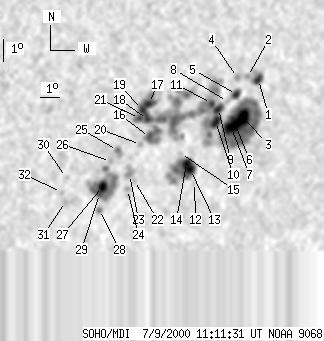

SOHO MDI 2000-07-09 11:11:31 UT
No observation available


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 7 22 5 15 -16.29 52.24 38.04 240.79 0.6799 -795.6 -681.6
2 0 4 0 3 -16.14 51.63 37.43 240.62 0.6723 -1001.0 -915.2
3 17 573 11 380 -17.88 51.83 37.63 238.43 0.6843 -1188.3 -281.6
4 0 6 0 4 -16.16 51.12 36.91 240.28 0.6666 -865.0 -784.6
5 5 14 3 9 -16.88 51.23 37.02 239.38 0.6719 -920.0 -721.3
6 5 -3 3 -3 -17.94 51.32 37.12 238.03 0.6791 -1522.8 999999
7 16 -3 11 -3 -18.28 51.30 37.10 237.57 0.6809 -1252.1 999999
8 0 4 0 3 -17.16 50.82 36.62 238.75 0.6690 -890.0 -779.8
9 5 -3 3 -3 -17.44 50.42 36.22 238.11 0.6663 -1235.3 999999
10 10 -3 7 -3 -17.99 50.40 36.20 237.36 0.6693 -1191.3 999999
11 3 -3 2 -3 -17.21 50.01 35.81 238.14 0.6603 -1403.7 999999
12 0 2 0 2 -20.59 49.97 35.77 233.70 0.6813 -393.0 -346.5
13 10 81 7 54 -20.02 49.61 35.41 234.18 0.6737 -922.3 -855.0
14 8 -13 5 -13 -19.70 49.32 35.12 234.37 0.6686 -1208.5 999999
15 0 3 0 2 -19.30 48.91 34.71 234.60 0.6616 -806.0 -832.7
16 6 34 4 22 -18.54 47.17 32.97 234.30 0.6376 592.9 -75.5
17 6 -3 4 -3 -17.09 46.82 32.62 236.02 0.6236 1215.1 999999
18 4 -3 2 -3 -17.77 46.91 32.71 235.15 0.6293 893.0 999999
19 4 -3 2 -3 -17.33 46.57 32.37 235.49 0.6225 1514.6 999999
20 0 4 0 3 -18.83 46.79 32.59 233.61 0.6355 780.0 567.2
21 2 -3 1 -3 -17.71 46.50 32.30 234.91 0.6244 1163.4 999999
22 0 5 0 3 -20.38 46.84 32.64 231.61 0.6473 158.0 30.1
23 0 15 0 9 -20.11 46.53 32.33 231.71 0.6420 -601.0 -168.0
24 0 13 0 8 -20.76 46.58 32.38 230.91 0.6474 609.0 449.2
25 0 8 0 5 -19.05 45.70 31.49 232.44 0.6252 968.0 893.9
26 0 4 0 2 -19.51 45.45 31.25 231.61 0.6261 765.0 559.2
27 7 104 5 67 -20.58 45.29 31.09 230.07 0.6327 1125.2 414.5
28 0 6 0 4 -21.59 45.38 31.18 228.86 0.6415 747.0 534.8
29 2 -27 1 -27 -20.88 45.21 31.01 229.61 0.6343 787.3 999999
30 0 4 0 2 -20.13 43.43 29.23 229.01 0.6097 792.0 751.8
31 0 5 0 3 -21.18 43.61 29.41 227.81 0.6202 935.0 765.5
32 0 4 0 2 -20.77 43.33 29.12 228.07 0.6140 843.0 719.2


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
