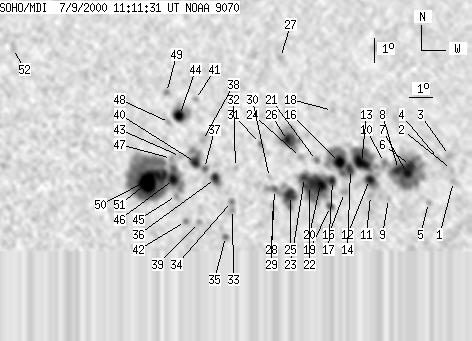

SOHO MDI 2000-07-09 11:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 198 | 1193 | 108 | 645 | 18.05 | 32.32 | 18.12 | 310.96 | 0.3902 | 264.3 | 122.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-09 11:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 9 | 0 | 5 | 17.43 | 40.11 | 25.91 | 300.05 | 0.4835 | 876.0 | 708.8 | |
| 0 | 3 | 0 | 2 | 17.92 | 40.09 | 25.89 | 300.98 | 0.4866 | 871.0 | 851.4 | |
| 0 | 7 | 0 | 4 | 18.49 | 40.09 | 25.89 | 302.04 | 0.4905 | 912.0 | 749.8 | |
| 0 | 6 | 0 | 3 | 18.39 | 39.57 | 25.36 | 302.31 | 0.4829 | 825.0 | 730.2 | |
| 0 | 5 | 0 | 3 | 16.61 | 38.84 | 24.64 | 299.56 | 0.4612 | -420.0 | -329.4 | |
| 7 | 149 | 4 | 83 | 18.13 | 38.24 | 24.04 | 303.08 | 0.4639 | 1149.0 | 737.5 | |
| 7 | -6 | 4 | -6 | 17.81 | 38.06 | 23.86 | 302.64 | 0.4592 | 1659.7 | 999999 | |
| 11 | -6 | 6 | -6 | 17.99 | 37.67 | 23.47 | 303.36 | 0.4554 | 1572.1 | 999999 | |
| 0 | 3 | 0 | 2 | 16.82 | 37.06 | 22.86 | 301.66 | 0.4388 | 806.0 | 751.6 | |
| 0 | 10 | 0 | 6 | 18.29 | 37.08 | 22.88 | 304.56 | 0.4501 | 801.0 | 757.9 | |
| 0 | 5 | 0 | 3 | 16.96 | 36.27 | 22.07 | 302.78 | 0.4293 | 645.0 | 556.9 | |
| 6 | 220 | 4 | 121 | 17.61 | 36.31 | 22.11 | 304.06 | 0.4348 | 1571.9 | 683.9 | |
| 16 | -12 | 9 | -12 | 18.31 | 36.05 | 21.84 | 305.75 | 0.4370 | 1544.1 | 999999 | |
| 6 | -12 | 3 | -12 | 18.04 | 35.52 | 21.31 | 305.82 | 0.4280 | 1422.6 | 999999 | |
| 0 | 8 | 0 | 4 | 17.11 | 35.13 | 20.93 | 304.37 | 0.4154 | 1113.0 | 877.2 | |
| 11 | -12 | 6 | -12 | 18.34 | 35.06 | 20.86 | 306.95 | 0.4247 | 1620.4 | 999999 | |
| 5 | 125 | 3 | 68 | 17.61 | 34.66 | 20.46 | 305.97 | 0.4134 | 1007.0 | 541.6 | |
| 0 | 3 | 0 | 2 | 20.48 | 35.04 | 20.83 | 311.05 | 0.4437 | 727.0 | 617.1 | |
| 3 | 8 | 2 | 4 | 16.55 | 34.45 | 20.25 | 304.00 | 0.4019 | -1034.0 | -691.2 | |
| 16 | -17 | 9 | -17 | 17.50 | 34.12 | 19.92 | 306.42 | 0.4055 | 1430.9 | 999999 | |
| 0 | 5 | 0 | 3 | 18.44 | 34.05 | 19.85 | 308.43 | 0.4130 | 975.0 | 803.0 | |
| 14 | -17 | 7 | -17 | 17.43 | 33.62 | 19.42 | 306.91 | 0.3985 | 1458.0 | 999999 | |
| 4 | -17 | 2 | -17 | 17.76 | 33.44 | 19.24 | 307.85 | 0.3991 | 1020.2 | 999999 | |
| 0 | 4 | 0 | 2 | 18.58 | 33.36 | 19.16 | 309.64 | 0.4056 | -672.0 | -688.4 | |
| 13 | 52 | 7 | 28 | 17.04 | 32.75 | 18.55 | 307.27 | 0.3838 | 1447.7 | 756.8 | |
| 7 | 58 | 4 | 31 | 19.29 | 32.87 | 18.66 | 311.73 | 0.4065 | 1544.1 | 789.8 | |
| 0 | 5 | 0 | 3 | 22.73 | 33.00 | 18.80 | 317.71 | 0.4436 | 450.0 | 556.9 | |
| 0 | 12 | 0 | 7 | 17.30 | 32.08 | 17.88 | 308.79 | 0.3776 | 1240.0 | 940.2 | |
| 0 | 5 | 0 | 3 | 16.61 | 31.92 | 17.72 | 307.50 | 0.3692 | -552.0 | -363.3 | |
| 0 | 3 | 0 | 2 | 17.79 | 31.91 | 17.71 | 310.10 | 0.3802 | 530.0 | 447.0 | |
| 0 | 5 | 0 | 3 | 19.19 | 31.66 | 17.46 | 313.33 | 0.3913 | -835.0 | -574.3 | |
| 0 | 4 | 0 | 2 | 18.23 | 30.47 | 16.27 | 313.30 | 0.3672 | -483.0 | -350.2 | |
| 0 | 5 | 0 | 3 | 16.52 | 30.19 | 15.99 | 310.02 | 0.3463 | -975.0 | -914.0 | |
| 0 | 8 | 0 | 4 | 16.84 | 30.17 | 15.97 | 310.79 | 0.3493 | -1031.0 | -772.4 | |
| 0 | 6 | 0 | 3 | 15.43 | 29.80 | 15.60 | 308.08 | 0.3307 | 846.0 | 687.3 | |
| 8 | 20 | 4 | 10 | 17.79 | 29.57 | 15.36 | 313.95 | 0.3519 | -1310.6 | -878.7 | |
| 0 | 8 | 0 | 4 | 18.21 | 29.13 | 14.93 | 315.62 | 0.3514 | -1254.0 | -964.5 | |
| 0 | 10 | 0 | 5 | 19.36 | 29.15 | 14.94 | 317.92 | 0.3646 | -831.0 | -609.1 | |
| 0 | 3 | 0 | 2 | 16.02 | 28.74 | 14.53 | 311.41 | 0.3230 | -715.0 | -590.6 | |
| 9 | 33 | 5 | 18 | 18.46 | 28.76 | 14.56 | 316.83 | 0.3501 | -1520.2 | -882.5 | |
| 0 | 4 | 0 | 2 | 21.05 | 29.01 | 14.80 | 321.31 | 0.3831 | 753.0 | 667.2 | |
| 0 | 5 | 0 | 2 | 16.07 | 28.14 | 13.94 | 312.67 | 0.3163 | -1213.0 | -855.5 | |
| 0 | 3 | 0 | 2 | 18.72 | 28.14 | 13.93 | 318.56 | 0.3461 | -734.0 | -630.6 | |
| 10 | 40 | 5 | 21 | 20.40 | 28.24 | 14.04 | 321.58 | 0.3675 | -1402.6 | -500.7 | |
| 0 | 5 | 0 | 2 | 17.13 | 27.84 | 13.64 | 315.76 | 0.3244 | -971.0 | -813.9 | |
| 7 | 307 | 4 | 161 | 17.78 | 27.76 | 13.56 | 317.36 | 0.3310 | -1589.1 | -760.0 | |
| 0 | 6 | 0 | 3 | 18.64 | 27.74 | 13.54 | 319.19 | 0.3410 | -780.0 | -703.7 | |
| 0 | 4 | 0 | 2 | 20.12 | 27.78 | 13.58 | 321.96 | 0.3594 | -613.0 | -685.6 | |
| 0 | 5 | 0 | 3 | 21.36 | 27.77 | 13.56 | 324.18 | 0.3748 | 609.0 | 538.4 | |
| 5 | -46 | 3 | -46 | 17.95 | 27.09 | 12.89 | 319.13 | 0.3257 | -1635.3 | 999999 | |
| 33 | -46 | 17 | -46 | 17.67 | 26.64 | 12.44 | 319.50 | 0.3175 | -2125.7 | 999999 | |
| 0 | 7 | 0 | 4 | 23.28 | 21.25 | 7.05 | 341.30 | 0.3531 | 423.0 | 296.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
