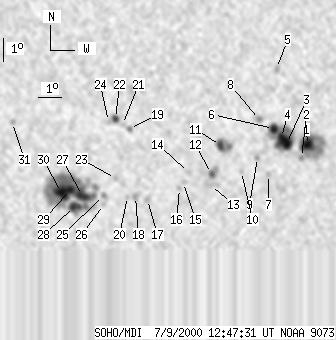

SOHO MDI 2000-07-09 12:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90 | 544 | 49 | 295 | -19.59 | 15.54 | 2.22 | 185.51 | 0.4073 | 91.0 | 86.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-09 12:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11 | 74 | 6 | 40 | -18.52 | 21.45 | 8.14 | 199.44 | 0.4049 | -1747.1 | -667.8 | |
| 0 | 4 | 0 | 2 | -19.08 | 21.23 | 7.91 | 198.47 | 0.4121 | -848.0 | -590.6 | |
| 17 | 89 | 9 | 48 | -18.47 | 20.57 | 7.25 | 197.50 | 0.3996 | -1722.6 | -957.6 | |
| -3 | -3 | -3 | -3 | -18.21 | 20.35 | 7.03 | 197.20 | 0.3946 | 999999 | 999999 | |
| 0 | 5 | 0 | 3 | -15.29 | 20.03 | 6.71 | 198.99 | 0.3480 | 1101.0 | 806.8 | |
| 6 | -3 | 3 | -3 | -17.83 | 20.00 | 6.68 | 196.69 | 0.3870 | -1549.3 | 999999 | |
| 0 | 3 | 0 | 2 | -19.80 | 19.86 | 6.54 | 194.97 | 0.4168 | 329.0 | 224.9 | |
| 0 | 5 | 0 | 3 | -17.44 | 19.40 | 6.08 | 195.55 | 0.3783 | -1063.0 | -795.0 | |
| 0 | 4 | 0 | 2 | -19.06 | 19.37 | 6.05 | 194.36 | 0.4034 | -807.0 | -558.7 | |
| 0 | 3 | 0 | 2 | -19.66 | 18.72 | 5.40 | 192.52 | 0.4103 | -843.0 | -649.6 | |
| 7 | 26 | 4 | 14 | -18.54 | 17.80 | 4.48 | 191.00 | 0.3897 | 1317.8 | 757.5 | |
| 3 | 14 | 2 | 7 | -19.74 | 17.45 | 4.13 | 189.62 | 0.4077 | -1383.2 | -971.4 | |
| 0 | 13 | 0 | 7 | -20.26 | 17.42 | 4.10 | 189.33 | 0.4158 | -718.0 | -685.3 | |
| 0 | 4 | 0 | 2 | -19.69 | 16.48 | 3.16 | 187.41 | 0.4046 | -571.0 | -335.3 | |
| 0 | 4 | 0 | 2 | -20.13 | 16.28 | 2.96 | 186.80 | 0.4111 | -667.0 | -640.4 | |
| 0 | 4 | 0 | 2 | -20.39 | 16.11 | 2.80 | 186.35 | 0.4149 | -685.0 | -485.9 | |
| 0 | 6 | 0 | 3 | -20.86 | 14.77 | 1.45 | 183.23 | 0.4206 | 762.0 | 620.0 | |
| 0 | 5 | 0 | 3 | -20.73 | 14.26 | 0.94 | 182.11 | 0.4182 | 633.0 | 444.4 | |
| 0 | 6 | 0 | 3 | -17.80 | 13.99 | 0.67 | 181.73 | 0.3709 | -1034.0 | -761.4 | |
| 0 | 2 | 0 | 1 | -20.73 | 13.92 | 0.60 | 181.35 | 0.4180 | -418.0 | -338.5 | |
| 0 | 3 | 0 | 2 | -17.63 | 13.70 | 0.38 | 180.99 | 0.3680 | -725.0 | -775.1 | |
| 4 | 10 | 2 | 5 | -17.37 | 13.41 | 0.09 | 180.23 | 0.3638 | -957.1 | -669.7 | |
| 0 | 3 | 0 | 2 | -19.95 | 13.41 | 0.09 | 180.21 | 0.4054 | 850.0 | 712.3 | |
| 0 | 2 | 0 | 1 | -17.50 | 13.12 | -0.20 | 179.47 | 0.3659 | -891.0 | -817.6 | |
| 0 | 7 | 0 | 4 | -20.69 | 12.90 | -0.42 | 179.06 | 0.4173 | 1153.0 | 909.9 | |
| 0 | 3 | 0 | 2 | -21.08 | 12.90 | -0.42 | 179.07 | 0.4235 | 577.0 | 514.0 | |
| 11 | 241 | 6 | 131 | -20.69 | 12.01 | -1.31 | 177.06 | 0.4178 | 1499.6 | 787.3 | |
| 9 | -27 | 5 | -27 | -21.17 | 11.67 | -1.65 | 176.37 | 0.4257 | 1101.4 | 999999 | |
| 6 | -27 | 3 | -27 | -20.43 | 11.51 | -1.81 | 175.88 | 0.4141 | 2044.1 | 999999 | |
| 16 | -27 | 9 | -27 | -20.56 | 11.13 | -2.19 | 175.04 | 0.4167 | 1651.4 | 999999 | |
| 0 | 4 | 0 | 2 | -17.55 | 9.13 | -4.19 | 169.19 | 0.3732 | 704.0 | 513.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
