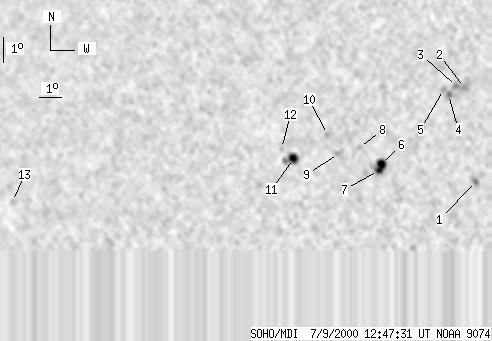

SOHO MDI 2000-07-09 12:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17 | 101 | 8 | 57 | 12.71 | 350.93 | -22.39 | 65.94 | 0.4072 | -19.2 | 242.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-09 12:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 8 | 0 | 4 | 11.35 | 356.28 | -17.04 | 65.12 | 0.3182 | 1179.0 | 921.5 | |
| 0 | 13 | 0 | 7 | 15.12 | 355.53 | -17.79 | 56.09 | 0.3570 | 1055.0 | 765.4 | |
| 0 | 6 | 0 | 3 | 15.15 | 355.18 | -18.14 | 56.49 | 0.3620 | 1105.0 | 893.1 | |
| 0 | 4 | 0 | 2 | 14.82 | 354.86 | -18.46 | 57.71 | 0.3636 | 939.0 | 846.5 | |
| 0 | 5 | 0 | 3 | 15.02 | 354.63 | -18.69 | 57.54 | 0.3684 | 800.0 | 598.4 | |
| 6 | 23 | 3 | 13 | 11.99 | 352.21 | -21.11 | 67.53 | 0.3830 | 996.6 | 487.8 | |
| 3 | -6 | 1 | -6 | 11.70 | 352.10 | -21.22 | 68.32 | 0.3831 | 947.0 | 999999 | |
| 0 | 3 | 0 | 2 | 12.60 | 351.19 | -22.13 | 66.90 | 0.4013 | -683.0 | -562.8 | |
| 0 | 7 | 0 | 4 | 12.34 | 350.29 | -23.03 | 68.22 | 0.4132 | 666.0 | 550.6 | |
| 0 | 3 | 0 | 2 | 13.09 | 349.73 | -23.59 | 66.95 | 0.4253 | -896.0 | -653.8 | |
| 8 | 21 | 4 | 12 | 12.09 | 348.32 | -25.00 | 70.14 | 0.4412 | -1233.4 | -736.2 | |
| 0 | 2 | 0 | 1 | 12.47 | 347.74 | -25.58 | 69.68 | 0.4514 | -646.0 | -599.1 | |
| 0 | 6 | 0 | 4 | 9.91 | 335.22 | -38.10 | 78.87 | 0.6217 | 506.0 | 479.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
