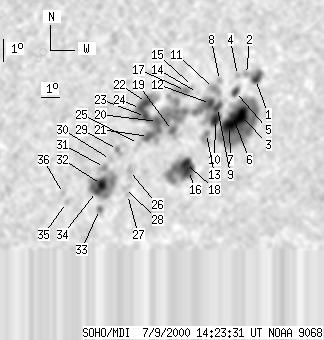

SOHO MDI 2000-07-09 14:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 129 | 839 | 91 | 564 | -18.39 | 48.96 | 36.52 | 236.96 | 0.6757 | -509.0 | -201.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-09 14:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5 | 21 | 4 | 15 | -16.36 | 52.19 | 39.76 | 241.67 | 0.6994 | -731.0 | -658.3 | |
| 0 | 5 | 0 | 3 | -16.12 | 51.65 | 39.22 | 241.68 | 0.6923 | -920.0 | -837.5 | |
| 19 | 300 | 14 | 207 | -17.86 | 51.82 | 39.39 | 239.51 | 0.7032 | -1036.2 | -424.5 | |
| 0 | 4 | 0 | 3 | -16.15 | 51.18 | 38.74 | 241.38 | 0.6871 | -983.0 | -837.1 | |
| 6 | 11 | 4 | 8 | -16.82 | 51.24 | 38.80 | 240.52 | 0.6913 | -803.5 | -603.2 | |
| 4 | -3 | 3 | -3 | -17.84 | 51.33 | 38.90 | 239.25 | 0.6979 | -1420.2 | 999999 | |
| 17 | -3 | 12 | -3 | -18.26 | 51.28 | 38.85 | 238.67 | 0.6997 | -1226.4 | 999999 | |
| 0 | 5 | 0 | 4 | -16.32 | 50.27 | 37.83 | 240.62 | 0.6779 | -978.0 | -818.6 | |
| 4 | -3 | 3 | -3 | -17.46 | 50.44 | 38.00 | 239.20 | 0.6861 | -1186.2 | 999999 | |
| 8 | -3 | 6 | -3 | -17.97 | 50.46 | 38.03 | 238.55 | 0.6892 | -1162.5 | 999999 | |
| 0 | 15 | 0 | 10 | -16.64 | 50.03 | 37.60 | 240.04 | 0.6770 | -1334.0 | -1031.7 | |
| 5 | -3 | 4 | -3 | -17.28 | 50.03 | 37.59 | 239.19 | 0.6805 | -1422.6 | 999999 | |
| 0 | 15 | 0 | 10 | -18.56 | 50.14 | 37.70 | 237.59 | 0.6890 | -943.0 | -464.8 | |
| 0 | 2 | 0 | 1 | -16.78 | 49.23 | 36.79 | 239.36 | 0.6688 | -761.0 | -670.5 | |
| 0 | 2 | 0 | 1 | -16.51 | 48.91 | 36.48 | 239.51 | 0.6637 | -819.0 | -776.1 | |
| 13 | 86 | 9 | 59 | -20.12 | 49.60 | 37.17 | 235.24 | 0.6928 | -844.5 | -794.3 | |
| 0 | 19 | 0 | 12 | -16.67 | 48.59 | 36.15 | 239.09 | 0.6610 | -362.0 | -125.1 | |
| 7 | -16 | 5 | -16 | -19.81 | 49.36 | 36.92 | 235.47 | 0.6884 | -1164.9 | 999999 | |
| 3 | 218 | 2 | 142 | -18.35 | 48.31 | 35.87 | 236.65 | 0.6681 | -651.9 | 160.5 | |
| 4 | -19 | 3 | -19 | -17.93 | 47.44 | 35.00 | 236.61 | 0.6559 | 701.5 | 999999 | |
| 7 | -19 | 5 | -19 | -18.56 | 47.13 | 34.69 | 235.55 | 0.6566 | 339.6 | 999999 | |
| 5 | -19 | 3 | -19 | -17.10 | 46.70 | 34.26 | 237.21 | 0.6424 | 1230.4 | 999999 | |
| 6 | -19 | 4 | -19 | -17.69 | 46.78 | 34.34 | 236.46 | 0.6471 | 940.8 | 999999 | |
| 5 | -19 | 3 | -19 | -17.34 | 46.45 | 34.01 | 236.70 | 0.6411 | 1460.1 | 999999 | |
| 0 | 3 | 0 | 2 | -18.84 | 46.68 | 34.25 | 234.85 | 0.6536 | 821.0 | 697.0 | |
| 0 | 6 | 0 | 4 | -19.99 | 46.50 | 34.07 | 233.21 | 0.6596 | -249.0 | -48.7 | |
| 0 | 3 | 0 | 2 | -21.04 | 46.67 | 34.23 | 232.00 | 0.6686 | 395.0 | 371.1 | |
| 0 | 7 | 0 | 5 | -20.77 | 46.44 | 34.01 | 232.17 | 0.6644 | 495.0 | 478.6 | |
| 0 | 9 | 0 | 6 | -19.06 | 45.67 | 33.24 | 233.80 | 0.6442 | 1092.0 | 762.9 | |
| 0 | 5 | 0 | 3 | -19.48 | 45.42 | 32.98 | 233.05 | 0.6445 | 600.0 | 412.7 | |
| 0 | 9 | 0 | 6 | -19.81 | 45.20 | 32.76 | 232.43 | 0.6445 | 670.0 | 732.7 | |
| 7 | 79 | 5 | 51 | -20.55 | 45.22 | 32.78 | 231.50 | 0.6501 | 1071.1 | 372.9 | |
| 0 | 6 | 0 | 4 | -21.64 | 45.39 | 32.96 | 230.24 | 0.6600 | 693.0 | 443.5 | |
| 4 | -32 | 2 | -32 | -20.85 | 45.04 | 32.60 | 230.97 | 0.6505 | 805.3 | 999999 | |
| 0 | 4 | 0 | 3 | -21.27 | 43.64 | 31.20 | 229.27 | 0.6394 | 760.0 | 688.7 | |
| 0 | 5 | 0 | 3 | -20.87 | 43.40 | 30.96 | 229.57 | 0.6338 | 911.0 | 684.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
