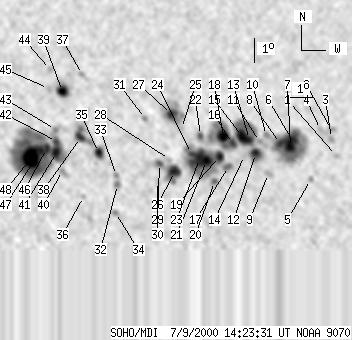

SOHO MDI 2000-07-09 14:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 202 | 1097 | 110 | 598 | 17.99 | 32.46 | 20.03 | 308.07 | 0.4125 | 264.4 | 138.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-09 14:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | 17.43 | 40.16 | 27.72 | 298.59 | 0.5075 | 742.0 | 695.3 | |
| 0 | 5 | 0 | 3 | 18.49 | 40.11 | 27.67 | 300.54 | 0.5134 | 833.0 | 654.0 | |
| 0 | 5 | 0 | 3 | 18.13 | 40.04 | 27.61 | 299.94 | 0.5102 | 911.0 | 888.9 | |
| 0 | 6 | 0 | 3 | 18.51 | 39.59 | 27.16 | 300.98 | 0.5068 | 1095.0 | 768.8 | |
| 0 | 4 | 0 | 2 | 16.49 | 38.80 | 26.37 | 297.88 | 0.4837 | -466.0 | -267.4 | |
| 18 | 139 | 10 | 78 | 18.18 | 38.18 | 25.75 | 301.57 | 0.4864 | 1414.9 | 720.1 | |
| -6 | -6 | -6 | -6 | 17.82 | 38.08 | 25.64 | 300.98 | 0.4825 | 999999 | 999999 | |
| 8 | -6 | 4 | -6 | 17.99 | 37.65 | 25.21 | 301.69 | 0.4781 | 1453.3 | 999999 | |
| 0 | 9 | 0 | 5 | 16.79 | 36.92 | 24.49 | 300.03 | 0.4602 | 872.0 | 793.8 | |
| 0 | 6 | 0 | 4 | 18.34 | 37.06 | 24.62 | 302.88 | 0.4728 | 904.0 | 504.2 | |
| 0 | 8 | 0 | 5 | 18.10 | 36.70 | 24.26 | 302.78 | 0.4665 | 950.0 | 844.3 | |
| 7 | 34 | 4 | 19 | 17.62 | 36.45 | 24.01 | 302.09 | 0.4597 | 1504.5 | 818.8 | |
| 16 | 153 | 9 | 85 | 18.19 | 36.26 | 23.82 | 303.39 | 0.4614 | 1472.7 | 668.0 | |
| 0 | 4 | 0 | 2 | 17.55 | 35.94 | 23.50 | 302.46 | 0.4525 | 725.0 | 623.6 | |
| -13 | -13 | -13 | -13 | 18.32 | 35.96 | 23.52 | 303.94 | 0.4585 | 999999 | 999999 | |
| 5 | -13 | 3 | -13 | 18.05 | 35.46 | 23.03 | 303.92 | 0.4500 | 1353.7 | 999999 | |
| 0 | 10 | 0 | 5 | 17.12 | 35.16 | 22.72 | 302.39 | 0.4390 | 1087.0 | 761.4 | |
| 11 | -13 | 6 | -13 | 18.35 | 35.10 | 22.66 | 304.88 | 0.4476 | 1517.6 | 999999 | |
| 6 | 147 | 3 | 81 | 17.54 | 34.81 | 22.37 | 303.60 | 0.4375 | 1132.2 | 586.2 | |
| 0 | 7 | 0 | 4 | 16.53 | 34.46 | 22.02 | 301.91 | 0.4252 | -890.0 | -632.8 | |
| 8 | -19 | 5 | -19 | 17.39 | 34.21 | 21.77 | 303.96 | 0.4285 | 1747.6 | 999999 | |
| 3 | 11 | 2 | 6 | 18.41 | 34.07 | 21.63 | 306.16 | 0.4350 | 770.3 | 470.0 | |
| 14 | -19 | 8 | -19 | 17.48 | 33.90 | 21.47 | 304.48 | 0.4253 | 1496.3 | 999999 | |
| 3 | -19 | 2 | -19 | 17.69 | 33.57 | 21.14 | 305.29 | 0.4227 | 1311.8 | 999999 | |
| 0 | 5 | 0 | 3 | 18.72 | 33.26 | 20.82 | 307.73 | 0.4274 | -580.0 | -565.3 | |
| 12 | 33 | 7 | 18 | 16.97 | 32.73 | 20.30 | 304.82 | 0.4058 | 1384.7 | 850.0 | |
| 9 | 60 | 5 | 33 | 19.30 | 32.89 | 20.45 | 309.33 | 0.4281 | 1440.7 | 686.5 | |
| 0 | 3 | 0 | 2 | 17.47 | 32.57 | 20.13 | 306.06 | 0.4078 | 779.0 | 772.5 | |
| 3 | 10 | 1 | 5 | 17.31 | 32.11 | 19.67 | 306.32 | 0.4006 | 1189.6 | 865.5 | |
| 0 | 6 | 0 | 3 | 16.58 | 31.94 | 19.51 | 304.97 | 0.3922 | -414.0 | -273.9 | |
| 0 | 5 | 0 | 3 | 19.16 | 31.71 | 19.27 | 310.62 | 0.4124 | -581.0 | -537.9 | |
| 0 | 6 | 0 | 3 | 16.50 | 30.19 | 17.75 | 307.18 | 0.3685 | -1232.0 | -912.9 | |
| 0 | 4 | 0 | 2 | 16.86 | 30.18 | 17.75 | 308.01 | 0.3718 | -892.0 | -598.5 | |
| 0 | 5 | 0 | 3 | 15.37 | 30.00 | 17.56 | 304.82 | 0.3560 | 506.0 | 477.3 | |
| 7 | 19 | 4 | 10 | 17.82 | 29.49 | 17.06 | 311.13 | 0.3723 | -1256.1 | -829.6 | |
| 0 | 3 | 0 | 2 | 16.04 | 28.68 | 16.25 | 308.44 | 0.3448 | -763.0 | -629.2 | |
| 0 | 4 | 0 | 2 | 21.03 | 29.14 | 16.70 | 317.99 | 0.4025 | 658.0 | 634.0 | |
| 6 | 32 | 3 | 17 | 18.44 | 28.77 | 16.33 | 313.62 | 0.3701 | -1370.4 | -910.4 | |
| 8 | 28 | 4 | 15 | 20.35 | 28.18 | 15.74 | 318.35 | 0.3844 | -1334.4 | -687.5 | |
| 0 | 8 | 0 | 4 | 17.11 | 27.87 | 15.43 | 312.30 | 0.3454 | -930.0 | -664.4 | |
| 8 | 296 | 4 | 156 | 17.85 | 27.68 | 15.24 | 314.26 | 0.3509 | -1494.9 | -729.1 | |
| 3 | -41 | 2 | -41 | 18.30 | 27.72 | 15.28 | 315.14 | 0.3563 | -1216.5 | 999999 | |
| 0 | 8 | 0 | 4 | 18.79 | 27.72 | 15.28 | 316.15 | 0.3617 | -1004.0 | -715.4 | |
| 0 | 5 | 0 | 3 | 21.27 | 27.75 | 15.31 | 320.75 | 0.3906 | 347.0 | 374.0 | |
| 0 | 5 | 0 | 3 | 20.48 | 27.58 | 15.14 | 319.66 | 0.3796 | -591.0 | -580.4 | |
| 5 | -41 | 2 | -41 | 18.02 | 27.26 | 14.82 | 315.39 | 0.3479 | -1343.6 | 999999 | |
| 7 | -41 | 4 | -41 | 17.94 | 27.00 | 14.56 | 315.72 | 0.3440 | -1581.8 | 999999 | |
| 35 | -41 | 18 | -41 | 17.66 | 26.59 | 14.15 | 315.90 | 0.3362 | -2051.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
