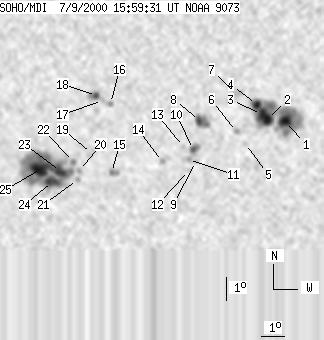

SOHO MDI 2000-07-09 15:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93 | 518 | 50 | 279 | -19.57 | 15.80 | 4.25 | 190.08 | 0.4119 | -24.4 | 53.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-09 15:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11 | 92 | 6 | 50 | -18.57 | 21.46 | 9.91 | 203.18 | 0.4161 | -1721.3 | -643.1 | |
| 10 | 84 | 6 | 45 | -18.48 | 20.70 | 9.14 | 201.65 | 0.4101 | -1521.3 | -989.1 | |
| 10 | -2 | 5 | -2 | -18.26 | 20.43 | 8.88 | 201.29 | 0.4053 | -1673.4 | 999999 | |
| 7 | -2 | 4 | -2 | -17.83 | 20.20 | 8.64 | 201.19 | 0.3976 | -1594.3 | 999999 | |
| 0 | 4 | 0 | 2 | -19.50 | 19.82 | 8.26 | 198.88 | 0.4204 | -324.0 | -260.7 | |
| 0 | 5 | 0 | 2 | -18.98 | 19.41 | 7.86 | 198.43 | 0.4105 | -610.0 | -545.4 | |
| 0 | 11 | 0 | 6 | -17.36 | 19.29 | 7.74 | 199.58 | 0.3854 | -607.0 | -702.6 | |
| 6 | 23 | 3 | 12 | -18.49 | 17.83 | 6.28 | 195.25 | 0.3958 | 1383.6 | 762.9 | |
| 0 | 3 | 0 | 2 | -20.26 | 17.73 | 6.18 | 193.88 | 0.4226 | -692.0 | -588.1 | |
| 3 | 14 | 2 | 8 | -19.74 | 17.62 | 6.07 | 193.97 | 0.4142 | -1386.8 | -955.2 | |
| 0 | 4 | 0 | 2 | -20.17 | 17.43 | 5.88 | 193.28 | 0.4201 | -992.0 | -856.6 | |
| 0 | 2 | 0 | 1 | -20.65 | 17.45 | 5.89 | 193.04 | 0.4276 | -632.0 | -629.8 | |
| 0 | 3 | 0 | 1 | -19.61 | 17.20 | 5.64 | 193.10 | 0.4105 | -975.0 | -850.7 | |
| 0 | 3 | 0 | 2 | -20.25 | 16.33 | 4.78 | 190.82 | 0.4177 | -941.0 | -762.7 | |
| 0 | 9 | 0 | 5 | -20.72 | 14.18 | 2.63 | 185.88 | 0.4201 | 1041.0 | 764.6 | |
| 0 | 4 | 0 | 2 | -17.75 | 14.09 | 2.54 | 186.53 | 0.3724 | -981.0 | -802.4 | |
| 0 | 2 | 0 | 1 | -17.62 | 13.76 | 2.20 | 185.71 | 0.3698 | -732.0 | -627.2 | |
| 4 | 12 | 2 | 6 | -17.41 | 13.51 | 1.95 | 185.12 | 0.3659 | -1122.7 | -780.1 | |
| 0 | 8 | 0 | 4 | -19.89 | 13.32 | 1.77 | 184.12 | 0.4058 | 618.0 | 627.8 | |
| 0 | 4 | 0 | 2 | -20.63 | 12.82 | 1.27 | 182.86 | 0.4170 | 940.0 | 848.8 | |
| 0 | 3 | 0 | 2 | -21.02 | 12.74 | 1.19 | 182.63 | 0.4232 | 851.0 | 631.7 | |
| 0 | 5 | 0 | 3 | -20.24 | 12.57 | 1.01 | 182.33 | 0.4106 | 1263.0 | 1050.8 | |
| 9 | 223 | 5 | 121 | -20.67 | 12.02 | 0.47 | 181.05 | 0.4173 | 1581.5 | 794.9 | |
| 10 | -23 | 5 | -23 | -21.11 | 11.68 | 0.13 | 180.28 | 0.4242 | 1057.5 | 999999 | |
| 23 | -23 | 12 | -23 | -20.54 | 11.22 | -0.34 | 179.24 | 0.4152 | 1761.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
