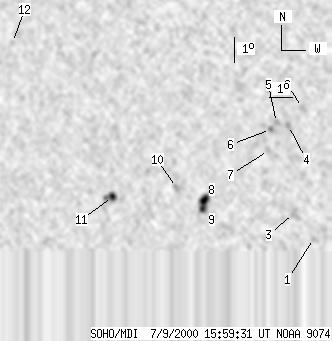

SOHO MDI 2000-07-09 15:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14 | 98 | 7 | 52 | 12.94 | 352.78 | -18.77 | 62.45 | 0.3552 | 418.3 | 283.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-09 15:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 3 | 10.57 | 357.02 | -14.53 | 64.29 | 0.2750 | 562.0 | 321.9 | |
| 0 | 9 | 0 | 5 | 15.82 | 356.23 | -15.33 | 50.54 | 0.3308 | 843.0 | 710.4 | |
| 0 | 14 | 0 | 7 | 11.56 | 356.13 | -15.42 | 62.43 | 0.2952 | 845.0 | 733.2 | |
| 0 | 6 | 0 | 3 | 15.08 | 355.69 | -15.87 | 53.29 | 0.3307 | 1097.0 | 861.2 | |
| 0 | 4 | 0 | 2 | 15.19 | 355.17 | -16.39 | 53.85 | 0.3387 | 948.0 | 811.0 | |
| 0 | 3 | 0 | 2 | 14.91 | 354.93 | -16.62 | 54.92 | 0.3392 | 999.0 | 881.5 | |
| 0 | 3 | 0 | 1 | 14.06 | 354.91 | -16.64 | 57.12 | 0.3322 | 634.0 | 626.3 | |
| 7 | 27 | 3 | 14 | 12.04 | 352.33 | -19.22 | 65.65 | 0.3550 | 1096.5 | 731.2 | |
| 3 | -8 | 2 | -8 | 11.68 | 352.27 | -19.28 | 66.67 | 0.3537 | 1083.8 | 999999 | |
| 0 | 7 | 0 | 4 | 12.49 | 351.09 | -20.47 | 65.72 | 0.3761 | -825.0 | -668.6 | |
| 4 | 16 | 2 | 9 | 12.07 | 348.33 | -23.23 | 69.03 | 0.4147 | -1329.2 | -886.8 | |
| 0 | 3 | 0 | 2 | 18.14 | 342.95 | -28.60 | 60.79 | 0.5232 | -693.0 | -539.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
