groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

9077 200 1398 216 1487 18.05 309.58 -61.97 71.51 0.8839 -402.3 -349.5


previous   or   next   observation for the same group / back to the solar disc

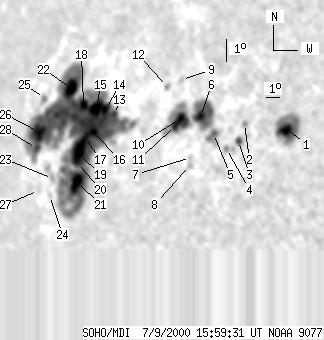

SOHO MDI 2000-07-09 15:59:31 UT
No observation available


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 11 86 8 65 18.95 323.22 -48.33 68.27 0.7628 1149.8 503.5
2 0 6 0 4 19.06 320.44 -51.11 68.77 0.7915 451.0 468.5
3 3 9 2 7 18.35 320.34 -51.21 69.68 0.7912 503.9 358.2
4 0 12 0 9 17.99 319.68 -51.87 70.26 0.7971 454.0 385.4
5 2 23 2 19 18.55 318.55 -53.01 69.78 0.8091 -488.5 -398.9
6 8 82 7 71 19.19 317.32 -54.23 69.23 0.8217 -1015.7 -461.8
7 0 3 0 3 17.50 317.39 -54.16 71.26 0.8186 -592.0 -546.7
8 0 5 0 4 17.17 317.46 -54.09 71.65 0.8175 -631.0 -444.5
9 0 4 0 4 20.62 315.16 -56.40 67.92 0.8434 -421.0 -304.5
10 7 86 6 77 19.03 315.93 -55.62 69.66 0.8342 -794.8 -292.9
11 7 -10 6 -10 18.73 315.71 -55.84 70.05 0.8358 -604.5 999999
12 0 5 0 5 20.27 314.26 -57.29 68.46 0.8506 -189.0 -242.6
13 4 1048 4 1184 18.91 310.71 -60.84 70.53 0.8782 -199.4 -416.5
14 11 -13 12 -13 19.06 309.82 -61.73 70.45 0.8853 164.8 999999
15 13 -13 14 -13 19.06 309.01 -62.54 70.54 0.8914 356.9 999999
16 7 -13 7 -13 18.12 309.34 -62.21 71.56 0.8882 -1346.1 999999
17 9 -13 10 -13 17.84 308.79 -62.76 71.92 0.8922 -1323.9 999999
18 7 -13 8 -13 19.15 307.73 -63.83 70.57 0.9008 69.0 999999
19 40 -13 44 -13 17.13 308.59 -62.96 72.74 0.8932 -870.7 999999
20 -19 -13 -19 -13 16.81 308.69 -62.86 73.09 0.8922 999999 999999
21 22 -13 24 -13 16.00 309.06 -62.49 73.96 0.8890 -910.2 999999
22 21 -13 26 -13 19.72 306.11 -65.45 70.08 0.9124 488.7 999999
23 0 15 0 18 16.04 306.80 -64.76 74.08 0.9057 308.0 20.3
24 0 2 0 3 15.35 306.92 -64.64 74.84 0.9046 273.0 170.8
25 1 9 2 11 19.16 303.68 -67.88 70.88 0.9278 -39.3 -25.8
26 21 -13 26 -13 17.78 304.25 -67.30 72.33 0.9236 -578.1 999999
27 0 3 0 3 15.48 305.75 -65.81 74.75 0.9129 392.0 366.8
28 6 -13 8 -13 17.13 304.42 -67.13 73.03 0.9223 -357.5 999999


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
