groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

9068 106 806 78 571 -18.41 48.88 39.97 239.04 0.7127 -353.9 -121.9


previous   or   next   observation for the same group / back to the solar disc

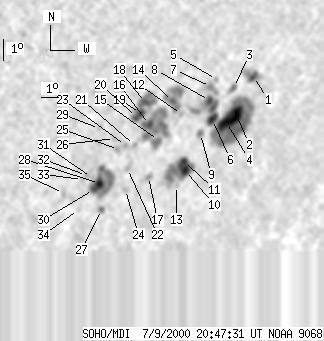

SOHO MDI 2000-07-09 20:47:31 UT
No observation available


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 6 26 4 19 -16.26 52.35 43.44 243.67 0.7388 -686.2 -512.3
2 17 281 13 204 -17.84 51.84 42.93 241.43 0.7405 -987.5 -340.4
3 1 9 1 6 -16.67 51.33 42.42 242.65 0.7299 -692.0 -556.8
4 20 -2 15 -2 -18.16 51.36 42.46 240.80 0.7371 -1178.0 999999
5 0 3 0 2 -16.29 50.28 41.37 242.61 0.7169 -963.0 -791.8
6 8 -2 6 -2 -17.99 50.53 41.62 240.57 0.7276 -986.1 999999
7 0 23 0 16 -16.57 50.02 41.12 242.11 0.7154 -1252.0 -866.3
8 5 -2 4 -2 -17.17 50.13 41.22 241.40 0.7194 -1264.3 999999
9 0 8 0 5 -18.56 50.02 41.12 239.57 0.7253 -916.0 -700.6
10 9 81 6 59 -20.13 49.67 40.76 237.42 0.7298 -757.4 -695.0
11 5 -10 3 -10 -19.73 49.43 40.53 237.78 0.7253 -1011.9 999999
12 0 6 0 4 -17.69 48.74 39.83 239.95 0.7072 -405.0 -441.8
13 0 2 0 2 -20.77 49.37 40.47 236.47 0.7303 -551.0 -558.2
14 3 50 2 35 -17.12 48.10 39.19 240.34 0.6973 -153.2 -47.1
15 0 14 0 10 -18.76 47.78 38.87 238.03 0.7029 -158.0 -100.0
16 5 88 4 61 -18.05 47.11 38.20 238.54 0.6917 770.3 65.0
17 0 5 0 4 -20.30 47.68 38.78 236.02 0.7106 162.0 48.5
18 5 63 3 43 -17.09 46.66 37.75 239.51 0.6815 1127.2 757.2
19 5 -18 4 -18 -17.55 46.51 37.60 238.81 0.6824 1120.7 999999
20 5 -18 4 -18 -17.72 46.34 37.43 238.49 0.6815 958.0 999999
21 0 4 0 3 -18.92 46.54 37.64 237.05 0.6907 766.0 685.5
22 0 5 0 3 -19.90 46.44 37.53 235.73 0.6955 -56.0 -90.1
23 0 4 0 3 -18.90 46.06 37.15 236.77 0.6854 707.0 754.7
24 0 5 0 4 -20.82 46.59 37.69 234.69 0.7026 552.0 402.4
25 0 5 0 3 -19.05 45.73 36.83 236.35 0.6829 911.0 777.2
26 0 5 0 4 -18.57 45.40 36.49 236.76 0.6764 940.0 723.8
27 1 7 1 5 -21.64 45.56 36.65 232.96 0.6974 503.3 403.2
28 7 84 5 57 -20.49 45.12 36.22 234.10 0.6855 998.3 302.3
29 0 9 0 6 -18.11 44.51 35.61 236.77 0.6639 805.0 651.0
30 4 -28 3 -28 -20.74 44.87 35.97 233.61 0.6846 947.7 999999
31 0 2 0 2 -20.21 44.63 35.72 234.11 0.6786 693.0 791.7
32 0 3 0 2 -20.11 44.34 35.43 234.03 0.6750 919.0 761.5
33 0 4 0 2 -20.28 44.18 35.27 233.70 0.6744 555.0 609.2
34 0 2 0 2 -21.59 44.33 35.42 232.16 0.6847 488.0 447.3
35 0 8 0 5 -20.85 43.35 34.44 232.36 0.6697 504.0 486.3


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
