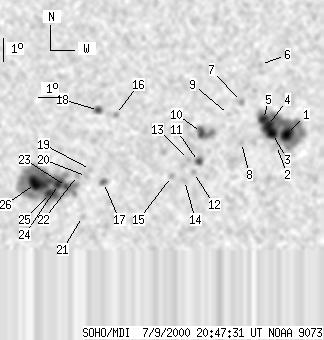

SOHO MDI 2000-07-09 20:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79 | 521 | 43 | 282 | -19.57 | 15.82 | 6.91 | 195.88 | 0.4218 | -118.0 | 71.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-09 20:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9 | 178 | 5 | 97 | -18.59 | 21.46 | 12.55 | 208.40 | 0.4349 | -1574.3 | -794.2 | |
| 0 | 9 | 0 | 5 | -19.06 | 21.07 | 12.16 | 207.13 | 0.4384 | -655.0 | -458.7 | |
| 10 | -1 | 5 | -1 | -18.54 | 20.86 | 11.95 | 207.31 | 0.4298 | -1447.2 | 999999 | |
| 10 | -1 | 5 | -1 | -18.20 | 20.62 | 11.71 | 207.23 | 0.4232 | -1703.4 | 999999 | |
| 7 | -1 | 4 | -1 | -17.94 | 20.43 | 11.53 | 207.16 | 0.4183 | -1637.7 | 999999 | |
| 0 | 3 | 0 | 2 | -15.60 | 20.16 | 11.26 | 209.48 | 0.3837 | 756.0 | 672.2 | |
| 0 | 6 | 0 | 3 | -17.16 | 19.45 | 10.55 | 206.03 | 0.4003 | -1184.0 | -861.9 | |
| 0 | 3 | 0 | 2 | -18.91 | 19.56 | 10.65 | 204.35 | 0.4260 | -891.0 | -628.2 | |
| 0 | 3 | 0 | 1 | -17.70 | 18.94 | 10.03 | 204.32 | 0.4046 | -545.0 | -598.5 | |
| 6 | 25 | 3 | 13 | -18.46 | 17.84 | 8.93 | 201.20 | 0.4089 | 1297.7 | 738.3 | |
| 3 | 11 | 2 | 6 | -19.71 | 17.78 | 8.87 | 199.97 | 0.4270 | -1205.2 | -912.2 | |
| 0 | 4 | 0 | 2 | -20.18 | 17.59 | 8.69 | 199.19 | 0.4330 | -950.0 | -864.4 | |
| 0 | 3 | 0 | 2 | -19.62 | 17.35 | 8.44 | 199.15 | 0.4233 | -1033.0 | -907.6 | |
| 0 | 6 | 0 | 3 | -20.52 | 17.23 | 8.32 | 198.18 | 0.4363 | -668.0 | -628.6 | |
| 0 | 4 | 0 | 2 | -20.35 | 16.66 | 7.76 | 197.15 | 0.4309 | -664.0 | -666.9 | |
| 0 | 4 | 0 | 2 | -17.66 | 14.19 | 5.29 | 193.45 | 0.3791 | -911.0 | -683.8 | |
| 0 | 6 | 0 | 4 | -20.58 | 13.78 | 4.87 | 190.87 | 0.4235 | 978.0 | 745.9 | |
| 4 | 10 | 2 | 5 | -17.48 | 13.48 | 4.57 | 191.79 | 0.3738 | -1149.0 | -941.3 | |
| 0 | 3 | 0 | 1 | -20.02 | 13.21 | 4.31 | 189.88 | 0.4130 | 609.0 | 547.8 | |
| 0 | 5 | 0 | 3 | -20.32 | 13.05 | 4.14 | 189.39 | 0.4173 | 452.0 | 498.5 | |
| 0 | 4 | 0 | 2 | -22.07 | 12.93 | 4.02 | 188.45 | 0.4443 | 759.0 | 572.8 | |
| 0 | 4 | 0 | 2 | -20.27 | 12.67 | 3.76 | 188.55 | 0.4156 | 1112.0 | 910.9 | |
| 3 | 230 | 2 | 125 | -20.75 | 12.21 | 3.31 | 187.37 | 0.4221 | 1272.1 | 826.0 | |
| 5 | -23 | 3 | -23 | -20.66 | 11.87 | 2.97 | 186.65 | 0.4201 | 1579.0 | 999999 | |
| 9 | -23 | 5 | -23 | -21.05 | 11.54 | 2.63 | 185.81 | 0.4257 | 1220.8 | 999999 | |
| 13 | -23 | 7 | -23 | -20.61 | 10.90 | 1.99 | 184.48 | 0.4179 | 1820.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
