SOHO MDI 2000-07-10 01:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 169 | 1041 | 99 | 612 | -17.81 | 30.78 | 24.52 | 226.87 | 0.5401 | 427.2 | 102.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-10 01:35:31 UT |

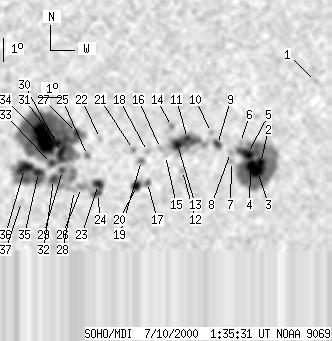

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -14.99 | 39.37 | 33.11 | 239.30 | 0.6160 | -904.0 | -723.4 | |
| 6 | 250 | 4 | 156 | -18.33 | 37.31 | 31.05 | 232.97 | 0.6156 | -1186.8 | -512.7 | |
| 13 | -2 | 8 | -2 | -18.72 | 37.24 | 30.99 | 232.39 | 0.6177 | -1235.5 | 999999 | |
| 9 | -2 | 5 | -2 | -18.45 | 36.85 | 30.59 | 232.42 | 0.6113 | -1616.5 | 999999 | |
| 10 | -2 | 6 | -2 | -17.92 | 36.60 | 30.34 | 232.93 | 0.6046 | -1527.9 | 999999 | |
| 0 | 3 | 0 | 2 | -17.44 | 36.17 | 29.92 | 233.23 | 0.5962 | -755.0 | -846.9 | |
| 0 | 4 | 0 | 2 | -18.24 | 35.89 | 29.63 | 231.87 | 0.5992 | -629.0 | -609.0 | |
| 0 | 4 | 0 | 3 | -17.85 | 35.77 | 29.51 | 232.30 | 0.5948 | -567.0 | -790.4 | |
| 5 | 11 | 3 | 7 | -17.49 | 35.08 | 28.83 | 232.19 | 0.5843 | -1026.3 | -813.1 | |
| 0 | 4 | 0 | 2 | -16.97 | 34.71 | 28.45 | 232.59 | 0.5759 | 40.0 | -16.1 | |
| 3 | 75 | 2 | 45 | -17.18 | 33.62 | 27.36 | 231.23 | 0.5654 | -1513.1 | -854.6 | |
| 0 | 4 | 0 | 3 | -18.55 | 33.61 | 27.36 | 229.29 | 0.5769 | 278.0 | 249.9 | |
| 4 | -11 | 2 | -11 | -17.42 | 33.19 | 26.93 | 230.45 | 0.5626 | -1622.2 | 999999 | |
| 0 | 4 | 0 | 2 | -16.65 | 32.79 | 26.54 | 231.18 | 0.5515 | -1114.0 | -761.0 | |
| 0 | 2 | 0 | 1 | -17.88 | 32.71 | 26.45 | 229.31 | 0.5612 | -718.0 | -627.6 | |
| 0 | 5 | 0 | 3 | -17.57 | 32.43 | 26.17 | 229.46 | 0.5554 | -448.0 | -515.6 | |
| 2 | 9 | 1 | 5 | -19.01 | 32.05 | 25.80 | 227.04 | 0.5644 | 590.2 | 221.6 | |
| 0 | 4 | 0 | 2 | -17.68 | 31.84 | 25.58 | 228.68 | 0.5499 | -866.0 | -789.2 | |
| 0 | 8 | 0 | 5 | -18.06 | 31.62 | 25.36 | 227.91 | 0.5510 | -1069.0 | -867.2 | |
| 6 | 14 | 4 | 8 | -19.17 | 31.57 | 25.31 | 226.30 | 0.5607 | 899.5 | 619.5 | |
| 0 | 4 | 0 | 2 | -17.57 | 31.18 | 24.92 | 228.11 | 0.5417 | -968.0 | -740.0 | |
| 0 | 4 | 0 | 2 | -17.06 | 29.61 | 23.35 | 227.05 | 0.5197 | -818.0 | -574.1 | |
| 7 | 29 | 4 | 17 | -19.03 | 29.80 | 23.54 | 224.48 | 0.5410 | -1243.6 | -711.7 | |
| 4 | -23 | 3 | -23 | -19.42 | 29.81 | 23.55 | 223.97 | 0.5450 | -683.7 | 999999 | |
| 0 | 5 | 0 | 3 | -17.77 | 29.12 | 22.86 | 225.43 | 0.5213 | 520.0 | 379.9 | |
| 0 | 12 | 0 | 7 | -19.14 | 29.04 | 22.78 | 223.42 | 0.5343 | -824.0 | -762.9 | |
| 3 | 406 | 2 | 231 | -16.78 | 28.49 | 22.23 | 226.11 | 0.5047 | 911.2 | 781.0 | |
| 0 | 3 | 0 | 2 | -19.26 | 28.74 | 22.48 | 222.88 | 0.5325 | -783.0 | -766.3 | |
| 3 | 76 | 2 | 44 | -18.38 | 28.07 | 21.81 | 223.26 | 0.5166 | 997.8 | 261.8 | |
| 6 | -27 | 3 | -27 | -17.61 | 27.93 | 21.67 | 224.17 | 0.5071 | 1255.6 | 999999 | |
| 4 | -27 | 2 | -27 | -17.18 | 27.74 | 21.48 | 224.55 | 0.5007 | 1293.7 | 999999 | |
| 6 | -29 | 4 | -29 | -18.76 | 27.72 | 21.46 | 222.28 | 0.5170 | 841.4 | 999999 | |
| 4 | -27 | 2 | -27 | -18.07 | 27.54 | 21.28 | 223.00 | 0.5079 | 787.9 | 999999 | |
| 52 | -27 | 29 | -27 | -16.95 | 27.04 | 20.79 | 223.97 | 0.4910 | 1938.9 | 999999 | |
| 7 | 96 | 4 | 55 | -18.44 | 27.00 | 20.74 | 221.77 | 0.5064 | 1070.9 | 441.1 | |
| 15 | -35 | 9 | -35 | -18.25 | 26.36 | 20.10 | 221.15 | 0.4979 | 1555.6 | 999999 | |
| 0 | 2 | 0 | 1 | -19.67 | 26.40 | 20.14 | 219.30 | 0.5140 | 548.0 | 439.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
