groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

9070 213 1217 121 695 17.65 32.87 26.61 300.40 0.4940 357.5 145.5


previous   or   next   observation for the same group / back to the solar disc

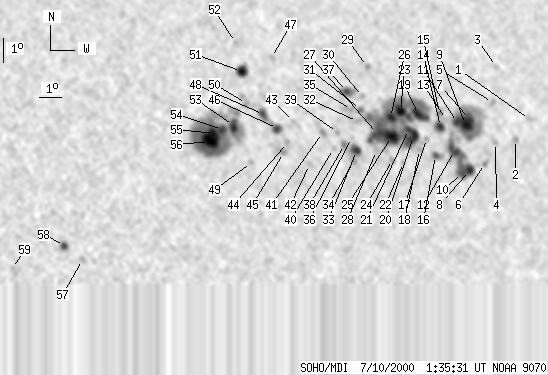

SOHO MDI 2000-07-10 01:35:31 UT
No observation available


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0 10 0 6 17.91 41.35 35.09 294.88 0.6052 675.0 510.0
2 0 6 0 4 17.13 40.47 34.21 294.06 0.5906 813.0 667.3
3 0 4 0 2 20.14 40.20 33.94 298.98 0.6015 560.0 567.8
4 0 5 0 3 17.04 39.46 33.20 294.43 0.5771 664.0 477.1
5 0 5 0 3 18.68 39.65 33.39 296.98 0.5873 773.0 509.0
6 0 6 0 3 16.21 38.75 32.49 293.40 0.5642 -77.0 -267.9
7 4 133 2 80 18.02 38.42 32.16 296.62 0.5683 839.2 459.7
8 5 103 3 61 15.96 37.97 31.72 293.37 0.5528 -980.8 251.2
9 25 -7 15 -7 17.83 38.13 31.87 296.46 0.5637 1421.1 999999
10 8 -8 4 -8 15.85 37.62 31.36 293.37 0.5475 -1145.3 999999
11 -9 -7 -9 -7 17.92 37.76 31.50 296.84 0.5593 999999 999999
12 12 -8 7 -8 16.79 37.40 31.14 295.13 0.5490 1299.9 999999
13 0 3 0 2 18.06 37.25 30.99 297.39 0.5535 774.0 743.4
14 8 18 5 11 17.79 36.91 30.65 297.14 0.5476 1142.3 854.3
15 0 6 0 4 18.36 36.97 30.71 298.07 0.5515 534.0 571.1
16 3 10 2 6 16.62 36.45 30.19 295.39 0.5356 944.5 741.8
17 0 8 0 4 17.32 36.15 29.89 296.82 0.5351 560.0 617.5
18 0 5 0 3 16.89 35.73 29.48 296.32 0.5274 1036.0 805.9
19 9 367 5 213 18.31 35.94 29.69 298.67 0.5380 1225.9 675.7
20 11 -19 6 -19 17.42 35.54 29.28 297.40 0.5277 1252.1 999999
21 4 -19 2 -19 17.72 35.36 29.10 298.04 0.5269 1477.9 999999
22 0 4 0 2 16.38 34.89 28.64 295.97 0.5134 -499.0 -318.9
23 8 -19 5 -19 18.46 35.11 28.85 299.52 0.5281 1334.3 999999
24 0 4 0 3 16.52 34.40 28.14 296.55 0.5075 -670.0 -465.0
25 19 -19 11 -19 17.46 34.51 28.25 298.18 0.5142 1594.6 999999
26 9 -19 5 -19 18.23 34.59 28.33 299.50 0.5200 1397.6 999999
27 10 -19 6 -19 17.60 33.87 27.61 298.91 0.5067 1421.8 999999
28 0 6 0 4 16.91 33.71 27.45 297.76 0.5005 -216.0 -214.2
29 0 5 0 3 20.35 33.89 27.64 303.72 0.5249 822.0 698.0
30 0 5 0 3 19.13 33.43 27.17 301.99 0.5107 701.0 665.6
31 0 7 0 4 18.60 33.24 26.98 301.21 0.5048 -542.0 -621.6
32 0 6 0 4 18.12 33.02 26.76 300.51 0.4988 532.0 326.2
33 7 17 4 9 16.94 32.79 26.53 298.52 0.4882 1251.1 980.8
34 0 7 0 4 16.50 32.58 26.32 297.84 0.4828 -51.0 45.6
35 0 8 0 4 18.61 32.82 26.56 301.58 0.4995 -662.0 -537.6
36 0 2 0 1 17.47 32.64 26.38 299.64 0.4896 616.0 501.1
37 5 19 3 11 19.36 32.72 26.46 303.00 0.5032 1176.5 876.3
38 0 7 0 4 17.20 32.27 26.01 299.43 0.4830 1055.0 901.6
39 0 3 0 2 17.69 32.02 25.76 300.57 0.4829 833.0 670.0
40 0 3 0 2 17.05 31.74 25.48 299.59 0.4750 779.0 562.0
41 0 5 0 3 17.71 31.33 25.08 301.21 0.4740 1116.0 899.1
42 0 4 0 2 16.43 30.56 24.30 299.41 0.4550 -666.0 -693.0
43 0 8 0 4 18.20 30.08 23.82 303.32 0.4610 -107.0 -333.5
44 0 6 0 3 17.35 29.69 23.43 302.06 0.4497 -884.0 -739.8
45 0 10 0 5 16.95 29.45 23.19 301.49 0.4436 -1014.0 -932.6
46 6 15 4 8 17.93 29.31 23.06 303.58 0.4491 -1289.6 -914.3
47 0 7 0 4 20.85 29.48 23.22 308.82 0.4749 742.0 478.4
48 6 16 3 9 18.52 28.76 22.50 305.31 0.4466 -1199.7 -921.9
49 0 5 0 3 16.58 27.97 21.72 302.26 0.4211 -714.0 -584.1
50 0 13 0 7 18.99 28.06 21.80 307.00 0.4416 -806.0 -586.0
51 9 22 5 12 20.31 28.02 21.76 309.51 0.4526 -1175.4 -654.7
52 0 2 0 1 21.51 27.93 21.67 311.76 0.4625 771.0 654.5
53 8 287 4 156 18.10 27.36 21.10 306.09 0.4252 -1452.3 -776.2
54 5 -53 3 -53 17.95 26.85 20.59 306.40 0.4174 -1424.2 999999
55 9 -53 5 -53 17.80 26.47 20.22 306.55 0.4113 -1663.9 999999
56 19 -53 10 -53 17.48 26.22 19.96 306.21 0.4052 -2231.2 999999
57 0 5 0 3 12.82 20.37 14.11 303.40 0.2861 906.0 668.1
58 4 11 2 6 13.39 19.65 13.39 306.45 0.2814 1254.0 936.1
59 0 9 0 4 12.50 17.44 11.18 308.48 0.2430 -890.0 -590.8


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
