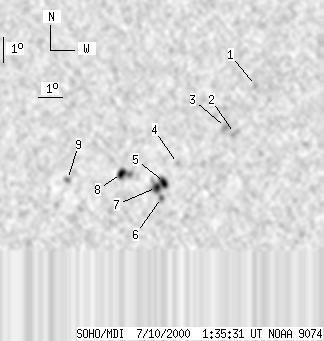

SOHO MDI 2000-07-10 01:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14 | 87 | 8 | 43 | 12.60 | 352.63 | -13.62 | 56.05 | 0.2790 | 454.2 | 370.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-10 01:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | 15.98 | 356.33 | -9.93 | 38.29 | 0.2687 | 832.0 | 659.9 | |
| 0 | 8 | 0 | 4 | 14.03 | 355.55 | -10.71 | 45.56 | 0.2537 | 968.0 | 831.1 | |
| 0 | 7 | 0 | 3 | 14.27 | 355.16 | -11.10 | 45.87 | 0.2610 | 1019.0 | 884.4 | |
| 0 | 5 | 0 | 2 | 12.80 | 353.24 | -13.02 | 54.61 | 0.2707 | 600.0 | 548.8 | |
| 5 | 35 | 3 | 18 | 12.03 | 352.74 | -13.52 | 57.99 | 0.2709 | 1345.4 | 851.9 | |
| 0 | 4 | 0 | 2 | 11.43 | 352.64 | -13.62 | 60.12 | 0.2673 | 1195.0 | 806.6 | |
| 3 | -5 | 2 | -5 | 11.82 | 352.41 | -13.84 | 59.22 | 0.2738 | 1311.1 | 999999 | |
| 6 | 18 | 3 | 9 | 12.36 | 350.92 | -15.34 | 60.00 | 0.2997 | -1057.6 | -760.7 | |
| 0 | 6 | 0 | 3 | 12.07 | 348.66 | -17.60 | 63.87 | 0.3308 | -1149.0 | -856.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
