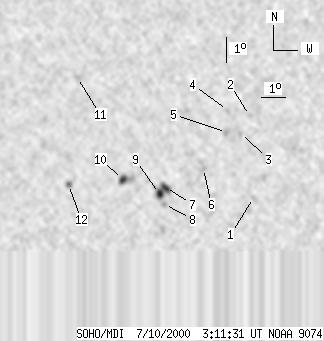

SOHO MDI 2000-07-10 03:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14 | 92 | 7 | 46 | 12.76 | 352.77 | -12.61 | 53.53 | 0.2664 | 602.7 | 389.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-10 03:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 7 | 0 | 3 | 11.70 | 356.37 | -9.01 | 48.41 | 0.2059 | 771.0 | 676.2 | |
| 0 | 5 | 0 | 2 | 14.98 | 356.08 | -9.30 | 39.01 | 0.2491 | 904.0 | 579.1 | |
| 0 | 4 | 0 | 2 | 14.26 | 355.73 | -9.64 | 42.00 | 0.2437 | 1049.0 | 848.0 | |
| 0 | 4 | 0 | 2 | 15.18 | 355.15 | -10.22 | 41.13 | 0.2616 | 563.0 | 605.9 | |
| 0 | 5 | 0 | 3 | 14.29 | 355.15 | -10.22 | 43.54 | 0.2508 | 983.0 | 867.3 | |
| 0 | 6 | 0 | 3 | 12.83 | 354.27 | -11.11 | 50.28 | 0.2454 | 867.0 | 617.1 | |
| 4 | 29 | 2 | 15 | 12.05 | 352.73 | -12.65 | 56.27 | 0.2586 | 1396.3 | 954.8 | |
| 0 | 5 | 0 | 2 | 11.37 | 352.72 | -12.66 | 58.58 | 0.2529 | 699.0 | 778.1 | |
| 6 | -7 | 3 | -7 | 11.81 | 352.49 | -12.89 | 57.54 | 0.2599 | 1256.2 | 999999 | |
| 4 | 17 | 2 | 9 | 12.34 | 350.92 | -14.46 | 58.66 | 0.2868 | -1194.5 | -847.6 | |
| 0 | 4 | 0 | 2 | 16.41 | 348.72 | -16.66 | 51.46 | 0.3531 | 911.0 | 715.4 | |
| 0 | 6 | 0 | 3 | 12.10 | 348.66 | -16.71 | 62.71 | 0.3178 | -1089.0 | -769.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
