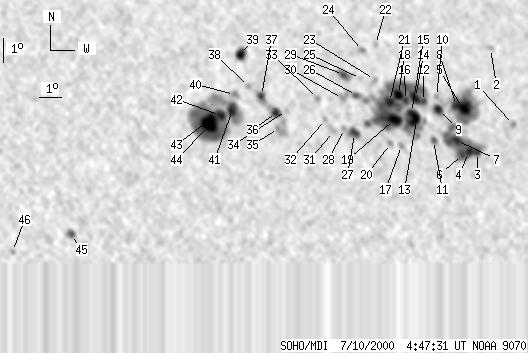

SOHO MDI 2000-07-10 04:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 202 | 1191 | 119 | 692 | 17.72 | 33.10 | 28.60 | 298.87 | 0.5203 | 199.8 | 159.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-10 04:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 17.07 | 40.57 | 36.08 | 293.08 | 0.6141 | 709.0 | 586.9 | |
| 0 | 5 | 0 | 3 | 20.21 | 40.15 | 35.66 | 298.12 | 0.6225 | 592.0 | 460.2 | |
| 4 | 121 | 2 | 73 | 16.00 | 38.53 | 34.03 | 292.28 | 0.5836 | -813.2 | 184.3 | |
| 8 | -3 | 5 | -3 | 16.06 | 38.14 | 33.65 | 292.55 | 0.5787 | -967.4 | 999999 | |
| 21 | 115 | 13 | 70 | 17.85 | 38.16 | 33.66 | 295.49 | 0.5867 | 1343.4 | 604.5 | |
| 6 | -3 | 4 | -3 | 15.95 | 37.77 | 33.28 | 292.55 | 0.5734 | -1003.3 | 999999 | |
| 6 | -3 | 4 | -3 | 16.53 | 37.59 | 33.09 | 293.60 | 0.5734 | 1107.3 | 999999 | |
| -5 | -5 | -5 | -5 | 17.95 | 37.88 | 33.38 | 295.79 | 0.5836 | 999999 | 999999 | |
| 7 | 21 | 4 | 13 | 17.82 | 36.95 | 32.46 | 296.08 | 0.5711 | 1231.7 | 902.2 | |
| 0 | 4 | 0 | 2 | 18.35 | 36.97 | 32.47 | 296.95 | 0.5739 | 725.0 | 557.9 | |
| 2 | 8 | 1 | 5 | 16.57 | 36.46 | 31.97 | 294.26 | 0.5588 | 900.3 | 708.8 | |
| 3 | 426 | 2 | 252 | 18.17 | 36.29 | 31.80 | 297.06 | 0.5643 | 796.1 | 650.4 | |
| 21 | -12 | 12 | -12 | 17.45 | 35.80 | 31.31 | 296.13 | 0.5544 | 1344.9 | 999999 | |
| 8 | -12 | 5 | -12 | 18.34 | 35.93 | 31.44 | 297.57 | 0.5606 | 1122.9 | 999999 | |
| -13 | -12 | -13 | -12 | 17.74 | 35.62 | 31.12 | 296.74 | 0.5534 | 999999 | 999999 | |
| 4 | -12 | 2 | -12 | 18.24 | 35.42 | 30.93 | 297.71 | 0.5535 | 1178.3 | 999999 | |
| 0 | 4 | 0 | 2 | 16.42 | 34.89 | 30.40 | 294.90 | 0.5372 | -367.0 | -424.2 | |
| 7 | -12 | 4 | -12 | 18.49 | 35.13 | 30.64 | 298.33 | 0.5512 | 1417.4 | 999999 | |
| 13 | -12 | 8 | -12 | 17.48 | 34.74 | 30.25 | 296.85 | 0.5407 | 1686.4 | 999999 | |
| 0 | 5 | 0 | 3 | 16.52 | 34.38 | 29.89 | 295.38 | 0.5309 | -692.0 | -471.9 | |
| 8 | -12 | 5 | -12 | 18.22 | 34.64 | 30.15 | 298.19 | 0.5434 | 1466.9 | 999999 | |
| 0 | 5 | 0 | 3 | 20.58 | 34.45 | 29.95 | 302.27 | 0.5549 | 897.0 | 678.0 | |
| 0 | 7 | 0 | 4 | 19.14 | 34.10 | 29.61 | 300.13 | 0.5417 | 374.0 | 555.2 | |
| 0 | 6 | 0 | 4 | 20.35 | 33.76 | 29.27 | 302.40 | 0.5451 | 973.0 | 780.4 | |
| 0 | 3 | 0 | 2 | 19.21 | 33.44 | 28.94 | 300.72 | 0.5337 | 648.0 | 604.4 | |
| 5 | -12 | 3 | -12 | 18.52 | 33.12 | 28.62 | 299.77 | 0.5254 | -634.5 | 999999 | |
| 8 | 18 | 5 | 11 | 16.98 | 32.75 | 28.26 | 297.28 | 0.5115 | 1055.1 | 845.3 | |
| 0 | 4 | 0 | 2 | 17.19 | 32.32 | 27.83 | 297.99 | 0.5070 | 1139.0 | 868.8 | |
| 5 | 16 | 3 | 9 | 19.40 | 32.66 | 28.17 | 301.64 | 0.5250 | 1187.3 | 977.2 | |
| 0 | 12 | 0 | 7 | 18.42 | 32.43 | 27.94 | 300.10 | 0.5159 | -928.0 | -556.4 | |
| 0 | 10 | 0 | 6 | 17.09 | 31.79 | 27.29 | 298.19 | 0.4993 | 929.0 | 773.2 | |
| 0 | 4 | 0 | 2 | 17.59 | 31.49 | 27.00 | 299.33 | 0.4984 | 1067.0 | 791.1 | |
| 0 | 4 | 0 | 2 | 18.45 | 31.26 | 26.77 | 301.10 | 0.5010 | -458.0 | -393.5 | |
| 0 | 4 | 0 | 2 | 18.00 | 29.75 | 25.26 | 301.58 | 0.4783 | -575.0 | -405.5 | |
| 0 | 28 | 0 | 16 | 17.28 | 29.28 | 24.78 | 300.63 | 0.4671 | -1204.0 | -877.4 | |
| 6 | 19 | 4 | 11 | 17.94 | 29.28 | 24.79 | 301.87 | 0.4716 | -1220.8 | -753.9 | |
| 4 | 18 | 2 | 10 | 18.65 | 28.70 | 24.21 | 303.77 | 0.4693 | -1220.4 | -896.8 | |
| 0 | 4 | 0 | 2 | 19.03 | 28.16 | 23.67 | 305.02 | 0.4654 | -844.0 | -595.3 | |
| 9 | 20 | 5 | 11 | 20.36 | 28.00 | 23.51 | 307.61 | 0.4740 | -1090.0 | -672.5 | |
| 0 | 9 | 0 | 5 | 18.72 | 27.48 | 22.99 | 305.15 | 0.4542 | -812.0 | -692.4 | |
| 11 | 271 | 6 | 149 | 18.11 | 27.30 | 22.81 | 304.17 | 0.4472 | -1340.8 | -781.0 | |
| 8 | -41 | 4 | -41 | 17.88 | 26.73 | 22.24 | 304.33 | 0.4379 | -1324.6 | 999999 | |
| 6 | -41 | 3 | -41 | 17.81 | 26.36 | 21.87 | 304.59 | 0.4326 | -1631.2 | 999999 | |
| 19 | -41 | 11 | -41 | 17.49 | 26.14 | 21.65 | 304.19 | 0.4271 | -2161.9 | 999999 | |
| 3 | 11 | 2 | 6 | 13.21 | 19.81 | 15.31 | 302.48 | 0.3061 | 1357.2 | 878.9 | |
| 0 | 4 | 0 | 2 | 12.57 | 17.30 | 12.80 | 305.07 | 0.2655 | -980.0 | -780.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
