SOHO MDI 2000-07-10 04:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91 | 529 | 50 | 294 | -19.29 | 16.81 | 12.32 | 206.83 | 0.4489 | -81.4 | -35.7 | |
|
previous
or next observation for the same group /

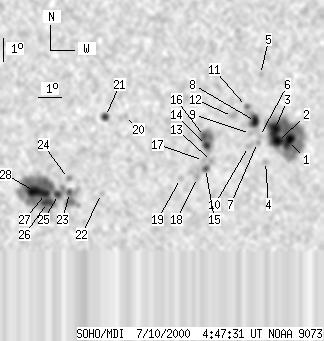

back to the solar disc SOHO MDI 2000-07-10 04:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11 | 194 | 6 | 109 | -18.60 | 21.50 | 17.01 | 216.09 | 0.4726 | -1407.3 | -657.5 | |
| 11 | -1 | 6 | -1 | -18.63 | 21.02 | 16.53 | 215.29 | 0.4687 | -1476.4 | 999999 | |
| 13 | -1 | 7 | -1 | -18.11 | 20.84 | 16.35 | 215.67 | 0.4607 | -1787.7 | 999999 | |
| 0 | 5 | 0 | 3 | -19.48 | 20.59 | 16.09 | 213.50 | 0.4754 | -518.0 | -727.1 | |
| 0 | 3 | 0 | 2 | -15.77 | 20.03 | 15.54 | 217.61 | 0.4242 | 774.0 | 542.9 | |
| 0 | 4 | 0 | 2 | -18.40 | 20.22 | 15.73 | 214.26 | 0.4587 | -579.0 | -642.8 | |
| 0 | 4 | 0 | 2 | -18.66 | 20.16 | 15.66 | 213.83 | 0.4614 | -855.0 | -624.2 | |
| 7 | 21 | 4 | 11 | -17.76 | 19.99 | 15.49 | 214.72 | 0.4485 | -1358.9 | -979.5 | |
| 0 | 4 | 0 | 2 | -18.27 | 19.82 | 15.32 | 213.76 | 0.4535 | -589.0 | -664.8 | |
| 0 | 5 | 0 | 3 | -18.82 | 19.78 | 15.29 | 212.99 | 0.4602 | -906.0 | -765.7 | |
| 0 | 5 | 0 | 3 | -17.11 | 19.54 | 15.05 | 214.82 | 0.4364 | -1028.0 | -848.5 | |
| 0 | 7 | 0 | 4 | -17.52 | 18.98 | 14.48 | 213.26 | 0.4367 | -664.0 | -606.3 | |
| 0 | 3 | 0 | 2 | -19.44 | 18.23 | 13.74 | 209.57 | 0.4558 | -828.0 | -679.8 | |
| 5 | 35 | 3 | 20 | -18.75 | 17.96 | 13.47 | 209.89 | 0.4444 | 1039.8 | 838.1 | |
| 2 | 8 | 1 | 4 | -19.74 | 18.00 | 13.51 | 208.82 | 0.4580 | -1037.6 | -877.1 | |
| 4 | -14 | 2 | -14 | -18.36 | 17.84 | 13.35 | 210.14 | 0.4383 | 1316.3 | 999999 | |
| 0 | 7 | 0 | 4 | -19.39 | 17.88 | 13.39 | 209.00 | 0.4525 | -925.0 | -701.5 | |
| 0 | 10 | 0 | 6 | -20.12 | 17.69 | 13.19 | 207.84 | 0.4609 | -772.0 | -781.5 | |
| 0 | 5 | 0 | 3 | -20.15 | 16.95 | 12.46 | 206.48 | 0.4561 | -952.0 | -731.0 | |
| 0 | 8 | 0 | 4 | -17.41 | 14.42 | 9.93 | 204.38 | 0.4002 | -757.0 | -661.1 | |
| 4 | 8 | 2 | 4 | -17.45 | 13.58 | 9.09 | 202.51 | 0.3953 | -1006.2 | -892.7 | |
| 0 | 3 | 0 | 2 | -20.76 | 13.60 | 9.10 | 199.54 | 0.4442 | 457.0 | 333.5 | |
| 3 | 26 | 2 | 14 | -20.70 | 12.22 | 7.73 | 196.82 | 0.4366 | 1175.4 | 786.2 | |
| 0 | 5 | 0 | 3 | -20.09 | 12.15 | 7.66 | 197.11 | 0.4271 | 1261.0 | 851.7 | |
| 4 | 159 | 2 | 87 | -20.79 | 11.76 | 7.27 | 195.81 | 0.4358 | 1396.0 | 850.0 | |
| 8 | -25 | 4 | -25 | -21.13 | 11.30 | 6.81 | 194.65 | 0.4392 | 1165.7 | 999999 | |
| 5 | -25 | 3 | -25 | -20.74 | 11.20 | 6.71 | 194.68 | 0.4328 | 1762.6 | 999999 | |
| 14 | -25 | 8 | -25 | -20.65 | 10.73 | 6.24 | 193.75 | 0.4296 | 1815.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
