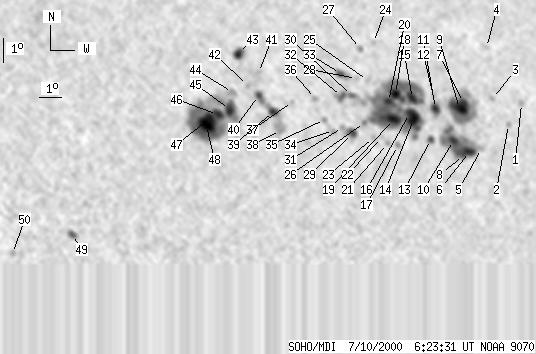

SOHO MDI 2000-07-10 06:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 184 | 1132 | 109 | 668 | 17.71 | 33.26 | 29.65 | 298.10 | 0.5338 | 132.1 | 160.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-10 06:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 17.87 | 41.39 | 37.78 | 293.58 | 0.6384 | 649.0 | 607.8 | |
| 0 | 4 | 0 | 2 | 17.04 | 40.51 | 36.90 | 292.68 | 0.6244 | 675.0 | 511.1 | |
| 0 | 4 | 0 | 3 | 18.13 | 39.93 | 36.32 | 294.61 | 0.6214 | 804.0 | 746.8 | |
| 0 | 6 | 0 | 4 | 20.23 | 40.16 | 36.55 | 297.68 | 0.6333 | 567.0 | 455.0 | |
| 0 | 3 | 0 | 2 | 16.13 | 38.92 | 35.31 | 291.90 | 0.6007 | -58.0 | -144.1 | |
| 10 | 114 | 6 | 70 | 16.03 | 38.30 | 34.69 | 292.02 | 0.5922 | -1045.1 | 160.9 | |
| 4 | 116 | 3 | 72 | 18.02 | 38.42 | 34.81 | 295.17 | 0.6020 | 750.2 | 568.5 | |
| 2 | -6 | 1 | -6 | 15.88 | 37.97 | 34.36 | 291.92 | 0.5873 | -1235.8 | 999999 | |
| 17 | -7 | 10 | -7 | 17.79 | 38.16 | 34.55 | 294.92 | 0.5977 | 1435.2 | 999999 | |
| 6 | -6 | 4 | -6 | 16.50 | 37.59 | 33.98 | 293.12 | 0.5849 | 945.5 | 999999 | |
| 7 | 20 | 4 | 12 | 17.83 | 36.97 | 33.36 | 295.61 | 0.5827 | 1188.1 | 926.3 | |
| 0 | 4 | 0 | 2 | 18.36 | 36.98 | 33.37 | 296.47 | 0.5854 | 631.0 | 555.8 | |
| 4 | 8 | 2 | 5 | 16.58 | 36.47 | 32.86 | 293.81 | 0.5705 | 744.1 | 656.7 | |
| 20 | 364 | 12 | 218 | 17.42 | 35.79 | 32.18 | 295.58 | 0.5656 | 1307.3 | 755.0 | |
| 9 | -14 | 5 | -14 | 18.28 | 35.92 | 32.31 | 296.93 | 0.5714 | 1152.5 | 999999 | |
| -14 | -14 | -14 | -14 | 17.67 | 35.65 | 32.04 | 296.08 | 0.5649 | 999999 | 999999 | |
| 0 | 4 | 0 | 2 | 16.40 | 34.82 | 31.21 | 294.38 | 0.5479 | -290.0 | -159.6 | |
| 8 | -14 | 5 | -14 | 18.51 | 35.13 | 31.52 | 297.79 | 0.5625 | 1329.4 | 999999 | |
| 11 | -14 | 6 | -14 | 17.46 | 34.82 | 31.21 | 296.20 | 0.5531 | 1706.4 | 999999 | |
| 5 | -14 | 3 | -14 | 18.20 | 34.72 | 31.11 | 297.52 | 0.5557 | 1480.1 | 999999 | |
| 0 | 4 | 0 | 3 | 16.50 | 34.36 | 30.75 | 294.82 | 0.5422 | -699.0 | -431.4 | |
| 0 | 3 | 0 | 2 | 16.75 | 34.11 | 30.50 | 295.40 | 0.5402 | 250.0 | 218.1 | |
| 0 | 3 | 0 | 2 | 16.76 | 33.73 | 30.12 | 295.66 | 0.5352 | -646.0 | -396.7 | |
| 0 | 3 | 0 | 2 | 20.64 | 34.51 | 30.90 | 301.68 | 0.5668 | 843.0 | 760.0 | |
| 0 | 6 | 0 | 4 | 19.09 | 33.88 | 30.27 | 299.57 | 0.5498 | 699.0 | 503.0 | |
| 0 | 3 | 0 | 2 | 17.38 | 33.41 | 29.80 | 296.96 | 0.5342 | -473.0 | -219.6 | |
| 0 | 5 | 0 | 3 | 20.41 | 33.82 | 30.21 | 301.80 | 0.5570 | 755.0 | 738.8 | |
| 0 | 3 | 0 | 2 | 19.19 | 33.37 | 29.76 | 300.09 | 0.5439 | 559.0 | 596.8 | |
| 6 | 14 | 4 | 8 | 16.96 | 32.76 | 29.15 | 296.62 | 0.5233 | 1064.7 | 972.6 | |
| 2 | 44 | 1 | 26 | 18.50 | 32.99 | 29.38 | 299.18 | 0.5350 | -642.7 | -280.9 | |
| 0 | 4 | 0 | 3 | 17.21 | 32.33 | 28.72 | 297.38 | 0.5190 | 718.0 | 837.6 | |
| 4 | -30 | 2 | -30 | 18.48 | 32.51 | 28.90 | 299.48 | 0.5286 | -716.2 | 999999 | |
| 4 | 16 | 3 | 10 | 19.42 | 32.64 | 29.03 | 301.01 | 0.5361 | 1020.9 | 891.0 | |
| 0 | 4 | 0 | 2 | 17.11 | 31.89 | 28.28 | 297.49 | 0.5125 | 701.0 | 749.0 | |
| 0 | 4 | 0 | 2 | 17.57 | 31.54 | 27.93 | 298.58 | 0.5106 | 1004.0 | 813.2 | |
| 0 | 5 | 0 | 3 | 18.43 | 31.27 | 27.66 | 300.34 | 0.5123 | -531.0 | -401.0 | |
| 0 | 2 | 0 | 1 | 18.34 | 30.17 | 26.56 | 301.06 | 0.4975 | -680.0 | -630.5 | |
| 0 | 18 | 0 | 10 | 17.18 | 29.43 | 25.82 | 299.52 | 0.4802 | -1041.0 | -951.3 | |
| 8 | 17 | 4 | 9 | 17.96 | 29.23 | 25.62 | 301.17 | 0.4826 | -1140.9 | -824.6 | |
| 4 | 15 | 3 | 9 | 18.63 | 28.64 | 25.03 | 302.95 | 0.4797 | -1191.4 | -1023.8 | |
| 0 | 3 | 0 | 2 | 19.58 | 28.79 | 25.18 | 304.52 | 0.4886 | -745.0 | -580.5 | |
| 0 | 4 | 0 | 2 | 19.06 | 28.20 | 24.59 | 304.14 | 0.4772 | -479.0 | -534.3 | |
| 6 | 19 | 4 | 11 | 20.38 | 28.00 | 24.39 | 306.73 | 0.4850 | -1111.6 | -725.1 | |
| 0 | 9 | 0 | 5 | 18.79 | 27.47 | 23.86 | 304.37 | 0.4658 | -734.0 | -602.4 | |
| 10 | 257 | 6 | 142 | 18.10 | 27.23 | 23.62 | 303.29 | 0.4575 | -1310.6 | -797.8 | |
| 8 | -45 | 5 | -45 | 17.91 | 26.66 | 23.05 | 303.51 | 0.4487 | -1290.6 | 999999 | |
| 6 | -45 | 3 | -45 | 17.80 | 26.33 | 22.72 | 303.63 | 0.4435 | -1590.0 | 999999 | |
| 20 | -45 | 11 | -45 | 17.47 | 26.11 | 22.50 | 303.23 | 0.4381 | -2140.7 | 999999 | |
| 3 | 11 | 2 | 6 | 13.20 | 19.85 | 16.24 | 301.01 | 0.3191 | 1416.4 | 797.1 | |
| 0 | 4 | 0 | 2 | 12.49 | 17.28 | 13.67 | 303.12 | 0.2768 | -939.0 | -630.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
