group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9068	98	646	79	503	-18.47	48.74	46.01	242.02	0.7744	-246.9	-87.2

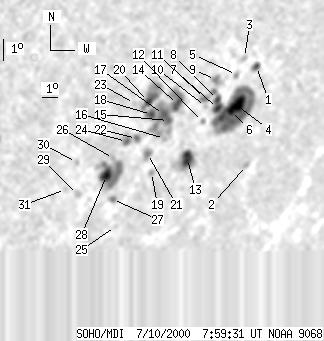

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-07-10 07:59:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	3	9	3	7	-16.22	52.56	49.83	246.35	0.8032	-477.4	-370.4
2	0	5	0	4	-20.49	53.62	50.90	241.79	0.8270	-459.0	-329.7
3	0	6	0	5	-15.80	51.65	48.92	246.52	0.7931	-707.0	-516.5
4	24	212	20	174	-17.83	51.86	49.13	244.18	0.8019	-850.1	-232.1
5	0	5	0	4	-16.49	51.38	48.65	245.58	0.7928	-258.0	-303.3
6	-4	-4	-4	-4	-18.02	51.55	48.82	243.83	0.7997	999999	999999
7	5	-4	4	-4	-17.89	50.68	47.95	243.63	0.7910	-896.9	999999
8	4	-4	3	-4	-17.50	50.54	47.81	244.04	0.7882	-724.6	999999
9	0	13	0	10	-16.64	50.12	47.40	244.91	0.7810	-1166.0	-912.9
10	0	3	0	2	-17.77	49.89	47.16	243.45	0.7829	-604.0	-607.5
11	0	9	0	7	-17.42	49.71	46.98	243.79	0.7798	-973.0	-897.9
12	0	3	0	3	-18.41	49.93	47.21	242.70	0.7858	-635.0	-545.7
13	15	48	12	38	-19.97	49.60	46.87	240.70	0.7888	-777.2	-543.3
14	8	132	6	100	-17.59	48.14	45.41	242.89	0.7649	-537.1	-83.7
15	3	-14	3	-14	-18.25	47.82	45.10	241.94	0.7645	-326.6	999999
16	0	3	0	2	-19.02	47.85	45.12	241.02	0.7681	-407.0	-360.6
17	7	-14	6	-14	-17.98	47.44	44.71	242.09	0.7595	-205.1	999999
18	6	-14	5	-14	-17.94	46.73	44.00	241.80	0.7522	748.2	999999
19	0	5	0	4	-20.47	47.60	44.87	239.16	0.7720	269.0	191.7
20	6	47	4	35	-17.37	46.38	43.65	242.33	0.7461	901.6	635.7
21	0	12	0	9	-19.63	47.05	44.32	239.90	0.7629	-141.0	-237.6
22	2	8	1	6	-18.94	46.17	43.45	240.30	0.7511	717.7	640.3
23	0	3	0	2	-17.42	45.59	42.86	241.88	0.7382	661.0	601.0
24	2	11	2	8	-19.04	45.63	42.90	239.90	0.7462	948.4	844.1
25	0	2	0	1	-22.77	46.34	43.61	235.82	0.7711	-447.0	-367.6
26	0	4	0	3	-19.75	45.12	42.39	238.76	0.7444	659.0	506.7
27	0	6	0	5	-21.55	45.69	42.96	236.90	0.7590	693.0	393.9
28	13	86	10	64	-20.47	44.96	42.23	237.80	0.7465	891.5	159.6
29	0	7	0	5	-21.23	43.57	40.84	236.09	0.7368	721.0	647.5
30	0	3	0	2	-19.82	43.06	40.33	237.52	0.7241	692.0	521.9
31	0	4	0	3	-20.98	42.81	40.09	235.95	0.7280	771.0	646.1

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
