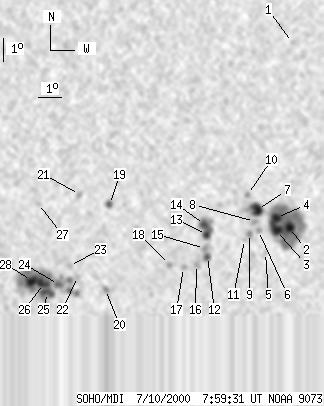

SOHO MDI 2000-07-10 07:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84 | 551 | 48 | 307 | -19.29 | 16.57 | 13.85 | 209.53 | 0.4607 | -87.0 | -17.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-10 07:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -10.80 | 21.02 | 18.29 | 230.85 | 0.3992 | -566.0 | -566.0 | |
| 8 | 198 | 5 | 112 | -18.54 | 21.57 | 18.85 | 218.95 | 0.4892 | -1427.1 | -665.6 | |
| 8 | -2 | 5 | -2 | -18.66 | 21.01 | 18.29 | 217.96 | 0.4852 | -1549.7 | 999999 | |
| 8 | -2 | 5 | -2 | -18.10 | 20.95 | 18.23 | 218.63 | 0.4782 | -1808.7 | 999999 | |
| 0 | 3 | 0 | 2 | -19.60 | 20.64 | 17.91 | 216.17 | 0.4928 | -744.0 | -641.7 | |
| 0 | 4 | 0 | 2 | -18.64 | 20.22 | 17.49 | 216.78 | 0.4777 | -837.0 | -714.7 | |
| 12 | 32 | 7 | 18 | -17.74 | 20.08 | 17.36 | 217.79 | 0.4656 | -1449.6 | -911.9 | |
| 0 | 6 | 0 | 3 | -18.25 | 20.00 | 17.28 | 216.96 | 0.4710 | -958.0 | -784.0 | |
| 0 | 6 | 0 | 3 | -18.76 | 19.84 | 17.11 | 216.03 | 0.4756 | -1021.0 | -760.0 | |
| 0 | 4 | 0 | 2 | -17.09 | 19.59 | 16.86 | 217.90 | 0.4532 | -1029.0 | -722.2 | |
| 0 | 2 | 0 | 1 | -19.01 | 19.65 | 16.92 | 215.40 | 0.4770 | -741.0 | -588.4 | |
| 3 | 7 | 2 | 4 | -19.72 | 18.10 | 15.37 | 212.03 | 0.4725 | -1062.1 | -938.9 | |
| 4 | 36 | 2 | 20 | -18.77 | 17.97 | 15.24 | 212.96 | 0.4593 | 1130.2 | 831.3 | |
| 7 | -13 | 4 | -13 | -18.33 | 17.84 | 15.11 | 213.29 | 0.4527 | 1435.5 | 999999 | |
| 0 | 9 | 0 | 5 | -19.37 | 17.94 | 15.21 | 212.17 | 0.4667 | -1091.0 | -863.3 | |
| 0 | 5 | 0 | 3 | -20.05 | 17.65 | 14.93 | 210.89 | 0.4733 | -1021.0 | -810.4 | |
| 0 | 4 | 0 | 2 | -20.17 | 17.10 | 14.37 | 209.81 | 0.4705 | -1003.0 | -875.7 | |
| 0 | 4 | 0 | 2 | -20.03 | 16.48 | 13.75 | 208.90 | 0.4639 | -783.0 | -610.9 | |
| 3 | 9 | 1 | 5 | -17.41 | 13.71 | 10.98 | 206.61 | 0.4077 | -1237.5 | -708.9 | |
| 0 | 5 | 0 | 3 | -21.08 | 13.79 | 11.06 | 203.00 | 0.4601 | 602.0 | 298.9 | |
| 0 | 3 | 0 | 2 | -16.97 | 12.42 | 9.70 | 204.34 | 0.3925 | -1019.0 | -770.8 | |
| 0 | 5 | 0 | 3 | -20.50 | 12.54 | 9.82 | 201.15 | 0.4444 | 981.0 | 878.1 | |
| 0 | 5 | 0 | 3 | -20.01 | 12.17 | 9.44 | 200.83 | 0.4353 | 908.0 | 712.0 | |
| 1 | 197 | 0 | 108 | -20.83 | 11.75 | 9.02 | 199.31 | 0.4451 | 1276.4 | 844.2 | |
| 8 | -24 | 4 | -24 | -21.18 | 11.30 | 8.57 | 198.15 | 0.4479 | 1057.3 | 999999 | |
| 10 | -24 | 6 | -24 | -20.78 | 11.10 | 8.38 | 198.06 | 0.4411 | 1622.7 | 999999 | |
| 0 | 4 | 0 | 2 | -17.34 | 10.72 | 7.99 | 200.12 | 0.3875 | 721.0 | 613.4 | |
| 12 | -24 | 7 | -24 | -20.65 | 10.58 | 7.86 | 197.11 | 0.4366 | 1712.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
