group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9070	203	1163	122	696	17.74	33.43	31.58	296.88	0.5590	204.3	163.8

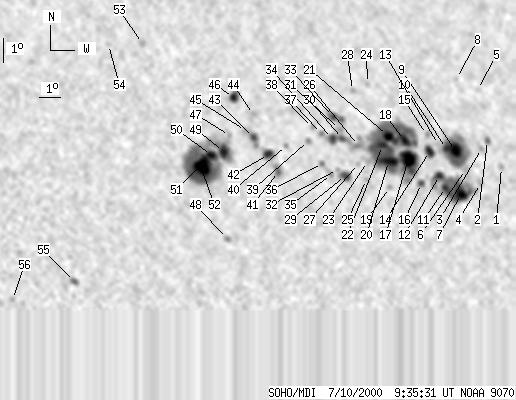

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-07-10 09:35:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	4	0	3	17.02	40.58	38.73	291.90	0.6471	537.0	413.4
2	0	6	0	4	18.14	40.12	38.27	293.77	0.6455	891.0	711.8
3	0	6	0	4	17.83	39.72	37.88	293.46	0.6394	438.0	429.2
4	0	6	0	4	16.42	39.33	37.49	291.46	0.6295	721.0	576.8
5	0	4	0	2	20.25	40.16	38.32	296.85	0.6543	431.0	432.8
6	0	7	0	4	17.01	38.69	36.84	292.64	0.6235	714.0	499.5
7	14	131	9	82	16.01	38.21	36.36	291.27	0.6138	-1211.1	55.8
8	0	3	0	2	20.74	39.18	37.34	298.04	0.6449	432.0	555.6
9	18	115	11	73	17.80	38.35	36.51	294.01	0.6223	1242.1	554.2
10	4	-9	3	-9	17.90	37.91	36.07	294.36	0.6172	1393.4	999999
11	3	-7	2	-7	16.33	37.51	35.66	292.06	0.6059	676.1	999999
12	6	-7	4	-7	16.82	37.31	35.46	292.94	0.6053	991.6	999999
13	0	3	0	2	18.08	37.54	35.70	294.81	0.6133	739.0	741.6
14	8	19	5	12	17.81	37.02	35.17	294.64	0.6056	1203.3	879.9
15	0	4	0	3	18.51	37.03	35.18	295.73	0.6088	683.0	525.6
16	3	8	2	5	16.53	36.34	34.49	292.91	0.5916	780.1	739.3
17	25	358	16	218	17.57	35.90	34.06	294.81	0.5903	1213.2	728.4
18	8	-17	5	-17	18.31	35.86	34.02	296.01	0.5932	1119.0	999999
19	0	4	0	3	16.43	34.72	32.88	293.52	0.5701	-365.0	-225.2
20	14	-17	8	-17	17.49	34.88	33.04	295.20	0.5769	1663.4	999999
21	11	-17	7	-17	18.54	35.06	33.22	296.83	0.5842	1322.1	999999
22	6	-17	4	-17	18.15	34.72	32.88	296.37	0.5780	1536.8	999999
23	0	9	0	5	17.52	33.86	32.01	295.83	0.5637	577.0	494.4
24	0	4	0	2	20.71	34.56	32.72	300.57	0.5893	621.0	575.7
25	0	4	0	2	16.79	33.67	31.82	294.70	0.5578	-529.0	-361.4
26	0	16	0	10	18.19	33.55	31.70	297.12	0.5631	-149.0	88.0
27	0	3	0	2	17.46	33.40	31.56	295.98	0.5575	-407.0	-240.5
28	0	5	0	3	20.45	33.75	31.90	300.68	0.5779	668.0	655.9
29	7	14	4	8	16.99	32.68	30.84	295.61	0.5458	1144.6	948.3
30	3	22	2	13	18.50	32.83	30.98	298.09	0.5555	-171.8	-279.5
31	0	7	0	4	18.87	32.76	30.91	298.76	0.5566	782.0	634.0
32	0	5	0	3	17.25	32.34	30.50	296.26	0.5426	845.0	664.3
33	3	20	2	12	19.41	32.58	30.73	299.78	0.5574	1122.2	806.3
34	7	-30	4	-30	18.52	32.35	30.50	298.43	0.5494	-838.9	999999
35	0	4	0	2	17.05	32.02	30.18	296.12	0.5373	978.0	894.6
36	0	5	0	3	17.52	31.67	29.83	297.15	0.5352	1043.0	707.3
37	0	5	0	3	18.74	31.86	30.01	299.13	0.5444	-323.0	-103.4
38	0	4	0	2	19.00	31.47	29.63	299.84	0.5410	-509.0	-376.4
39	0	5	0	3	18.47	31.18	29.33	299.15	0.5341	-561.0	-395.1
40	0	5	0	3	18.30	30.10	28.25	299.64	0.5191	-737.0	-455.4
41	0	14	0	8	17.26	29.54	27.70	298.17	0.5055	-1211.0	-878.9
42	7	15	4	8	17.96	29.19	27.35	299.72	0.5052	-1147.4	-826.5
43	4	15	2	9	18.68	28.61	26.76	301.48	0.5022	-1216.0	-956.4
44	0	4	0	2	19.62	28.77	26.93	303.01	0.5107	-674.0	-623.0
45	0	12	0	7	18.97	28.28	26.44	302.29	0.5001	-579.0	-682.2
46	6	17	3	10	20.35	27.96	26.12	304.98	0.5058	-1093.3	-675.7
47	0	4	0	2	18.79	27.51	25.66	302.64	0.4888	-617.0	-570.0
48	0	6	0	3	14.62	26.82	24.98	295.10	0.4530	-869.0	-584.0
49	11	242	6	136	18.15	27.13	25.28	301.79	0.4794	-1252.6	-804.5
50	8	-49	4	-49	18.00	26.55	24.71	302.03	0.4708	-1214.5	999999
51	8	-49	4	-49	17.80	26.25	24.40	301.94	0.4655	-1509.9	999999
52	19	-49	11	-49	17.48	26.02	24.17	301.54	0.4602	-2076.8	999999
53	0	6	0	3	22.70	24.13	22.28	312.99	0.4802	1037.0	825.9
54	0	4	0	2	22.69	22.56	20.71	314.92	0.4628	656.0	482.5
55	0	6	0	3	13.06	19.95	18.11	298.09	0.3447	1273.0	950.2
56	0	3	0	2	12.39	17.28	15.43	299.85	0.3010	-739.0	-601.4

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
