SOHO MDI 2000-07-10 09:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11 | 84 | 5 | 42 | 12.51 | 352.97 | -8.88 | 43.66 | 0.2177 | 396.5 | 574.2 | |
|
previous
or next observation for the same group /

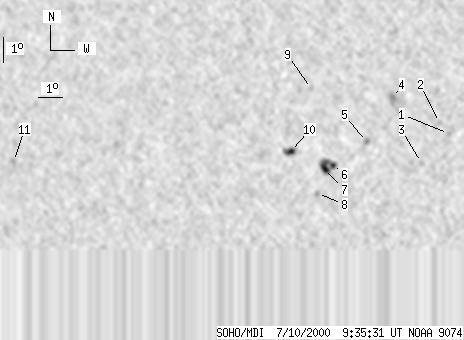

back to the solar disc SOHO MDI 2000-07-10 09:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | 13.12 | 357.62 | -4.23 | 24.23 | 0.1757 | 898.0 | 666.1 | |
| 0 | 3 | 0 | 2 | 13.56 | 357.24 | -4.60 | 25.02 | 0.1852 | 561.0 | 505.6 | |
| 0 | 5 | 0 | 3 | 11.95 | 356.54 | -5.30 | 32.96 | 0.1670 | 309.0 | 331.0 | |
| 0 | 11 | 0 | 6 | 14.55 | 355.33 | -6.51 | 30.77 | 0.2156 | 1218.0 | 989.8 | |
| 0 | 5 | 0 | 2 | 12.77 | 354.28 | -7.57 | 39.84 | 0.2014 | 911.0 | 790.8 | |
| 2 | 29 | 1 | 14 | 11.80 | 352.92 | -8.93 | 47.88 | 0.2058 | 1277.1 | 996.1 | |
| 5 | -6 | 2 | -6 | 11.68 | 352.59 | -9.25 | 49.33 | 0.2086 | 1362.6 | 999999 | |
| 0 | 6 | 0 | 3 | 10.68 | 352.34 | -9.51 | 53.97 | 0.2016 | 990.0 | 660.0 | |
| 0 | 5 | 0 | 2 | 14.88 | 351.93 | -9.92 | 41.13 | 0.2542 | 810.0 | 544.7 | |
| 4 | 12 | 2 | 6 | 12.34 | 351.17 | -10.67 | 50.90 | 0.2342 | -1331.6 | -841.6 | |
| 0 | 4 | 0 | 2 | 11.72 | 339.49 | -22.36 | 69.37 | 0.3996 | 693.0 | 647.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
