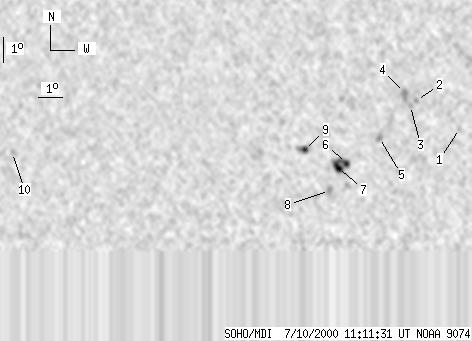

SOHO MDI 2000-07-10 11:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11 | 78 | 5 | 40 | 12.44 | 352.46 | -8.50 | 42.26 | 0.2136 | 844.9 | 638.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-10 11:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | 13.21 | 357.55 | -3.41 | 19.81 | 0.1718 | 609.0 | 578.3 | |
| 0 | 4 | 0 | 2 | 14.32 | 355.77 | -5.19 | 25.94 | 0.2013 | 1051.0 | 808.8 | |
| 0 | 4 | 0 | 2 | 14.12 | 355.53 | -5.43 | 27.45 | 0.2001 | 902.0 | 816.6 | |
| 0 | 11 | 0 | 5 | 14.64 | 355.27 | -5.69 | 27.32 | 0.2100 | 1088.0 | 990.2 | |
| 0 | 6 | 0 | 3 | 12.83 | 354.29 | -6.67 | 36.21 | 0.1925 | 963.0 | 789.8 | |
| 3 | 30 | 1 | 15 | 11.78 | 352.97 | -7.99 | 44.86 | 0.1937 | 1299.3 | 933.0 | |
| 5 | -6 | 3 | -6 | 11.61 | 352.61 | -8.35 | 46.72 | 0.1963 | 1345.6 | 999999 | |
| 0 | 7 | 0 | 4 | 10.69 | 352.31 | -8.65 | 51.38 | 0.1900 | 804.0 | 569.5 | |
| 3 | 8 | 1 | 4 | 12.32 | 351.24 | -9.73 | 48.43 | 0.2216 | -1131.6 | -980.1 | |
| 0 | 5 | 0 | 3 | 11.97 | 338.93 | -22.03 | 68.53 | 0.3960 | 598.0 | 484.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
