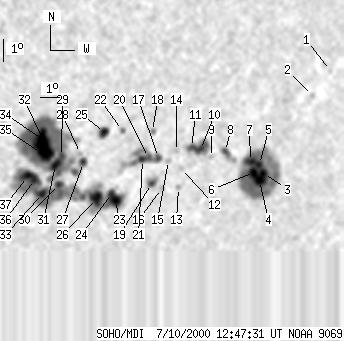

SOHO MDI 2000-07-10 12:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 201 | 1196 | 129 | 750 | -18.00 | 30.98 | 30.90 | 232.94 | 0.6115 | 240.0 | 93.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-10 12:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 2 | 0 | 1 | -14.27 | 40.48 | 40.41 | 244.70 | 0.6971 | -583.0 | -535.4 | |
| 0 | 3 | 0 | 2 | -15.28 | 39.74 | 39.66 | 242.97 | 0.6936 | -506.0 | -405.9 | |
| 8 | 258 | 5 | 175 | -18.49 | 37.92 | 37.84 | 237.68 | 0.6908 | -978.1 | -426.6 | |
| 10 | -3 | 7 | -3 | -18.78 | 37.79 | 37.71 | 237.21 | 0.6911 | -1137.4 | 999999 | |
| 4 | -3 | 3 | -3 | -18.09 | 37.61 | 37.53 | 237.99 | 0.6852 | -1269.3 | 999999 | |
| 9 | -3 | 6 | -3 | -18.42 | 37.38 | 37.30 | 237.41 | 0.6846 | -1534.4 | 999999 | |
| 10 | -3 | 7 | -3 | -17.94 | 37.10 | 37.02 | 237.86 | 0.6788 | -1407.0 | 999999 | |
| 4 | 19 | 3 | 12 | -17.46 | 35.69 | 35.61 | 237.57 | 0.6604 | -942.9 | -778.9 | |
| 0 | 3 | 0 | 2 | -17.68 | 35.03 | 34.95 | 236.81 | 0.6545 | -616.0 | -597.8 | |
| 6 | 40 | 4 | 26 | -17.32 | 34.39 | 34.31 | 236.85 | 0.6450 | -1161.2 | -878.0 | |
| 4 | -10 | 3 | -10 | -17.21 | 33.92 | 33.84 | 236.65 | 0.6391 | -1240.7 | 999999 | |
| 0 | 3 | 0 | 2 | -18.09 | 33.60 | 33.53 | 235.22 | 0.6415 | -382.0 | -413.7 | |
| 0 | 4 | 0 | 3 | -18.91 | 33.64 | 33.56 | 234.16 | 0.6474 | 132.0 | 21.3 | |
| 0 | 2 | 0 | 2 | -17.36 | 33.20 | 33.12 | 235.92 | 0.6319 | -815.0 | -663.4 | |
| 0 | 5 | 0 | 3 | -17.72 | 32.88 | 32.80 | 235.17 | 0.6309 | -643.0 | -379.0 | |
| 0 | 4 | 0 | 3 | -18.92 | 32.79 | 32.71 | 233.49 | 0.6383 | 568.0 | 507.0 | |
| 4 | 75 | 3 | 47 | -17.58 | 32.35 | 32.28 | 234.96 | 0.6240 | -851.2 | -829.7 | |
| 0 | 5 | 0 | 3 | -16.46 | 31.85 | 31.77 | 236.12 | 0.6104 | -710.0 | -673.8 | |
| 4 | 14 | 2 | 9 | -18.68 | 32.24 | 32.16 | 233.36 | 0.6306 | -851.9 | -340.8 | |
| 4 | -17 | 3 | -17 | -17.56 | 31.86 | 31.78 | 234.59 | 0.6183 | -1045.6 | 999999 | |
| 4 | -17 | 2 | -17 | -17.63 | 31.58 | 31.50 | 234.26 | 0.6158 | -1197.6 | 999999 | |
| 0 | 5 | 0 | 3 | -16.36 | 30.38 | 30.30 | 235.06 | 0.5928 | 648.0 | 405.6 | |
| 12 | 733 | 8 | 444 | -19.35 | 30.61 | 30.53 | 231.10 | 0.6181 | 1220.7 | 488.8 | |
| 5 | -23 | 3 | -23 | -19.04 | 30.35 | 30.27 | 231.29 | 0.6129 | 716.8 | 999999 | |
| 9 | 18 | 6 | 11 | -16.41 | 29.53 | 29.45 | 234.24 | 0.5834 | 904.2 | 534.5 | |
| 16 | -23 | 10 | -23 | -19.23 | 29.66 | 29.58 | 230.42 | 0.6070 | -1149.2 | 999999 | |
| 5 | -23 | 3 | -23 | -17.66 | 28.75 | 28.67 | 231.75 | 0.5843 | 617.3 | 999999 | |
| 0 | 3 | 0 | 2 | -17.27 | 28.54 | 28.46 | 232.11 | 0.5788 | 593.0 | 543.9 | |
| 1 | -23 | 1 | -23 | -17.36 | 27.66 | 27.58 | 231.13 | 0.5698 | 973.7 | 999999 | |
| 5 | -23 | 3 | -23 | -18.56 | 27.72 | 27.64 | 229.50 | 0.5806 | 1027.5 | 999999 | |
| 8 | -23 | 5 | -23 | -17.70 | 27.43 | 27.35 | 230.43 | 0.5700 | 1233.5 | 999999 | |
| 48 | -23 | 29 | -23 | -17.22 | 27.08 | 27.00 | 230.76 | 0.5620 | 1841.0 | 999999 | |
| 5 | -23 | 3 | -23 | -18.92 | 27.03 | 26.95 | 228.31 | 0.5763 | 950.9 | 999999 | |
| -32 | -23 | -32 | -23 | -16.61 | 26.66 | 26.58 | 231.22 | 0.5521 | 999999 | 999999 | |
| -32 | -23 | -32 | -23 | -17.21 | 26.70 | 26.62 | 230.40 | 0.5577 | 999999 | 999999 | |
| 16 | -23 | 10 | -23 | -18.31 | 26.55 | 26.47 | 228.68 | 0.5657 | 1449.1 | 999999 | |
| -36 | -23 | -36 | -23 | -18.17 | 26.20 | 26.12 | 228.51 | 0.5607 | 999999 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
