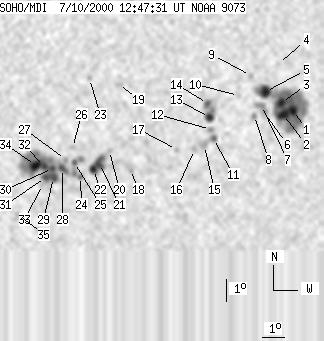

SOHO MDI 2000-07-10 12:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89 | 552 | 51 | 311 | -19.48 | 16.52 | 16.44 | 213.65 | 0.4837 | -149.7 | 6.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-10 12:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8 | 213 | 5 | 122 | -18.59 | 21.61 | 21.53 | 222.54 | 0.5164 | -1375.5 | -680.4 | |
| 10 | -1 | 6 | -1 | -18.75 | 21.18 | 21.10 | 221.76 | 0.5138 | -1392.4 | 999999 | |
| 10 | -1 | 6 | -1 | -18.23 | 21.02 | 20.94 | 222.27 | 0.5067 | -1785.8 | 999999 | |
| 0 | 3 | 0 | 2 | -16.57 | 20.69 | 20.61 | 224.24 | 0.4856 | 455.0 | 341.8 | |
| 12 | -1 | 7 | -1 | -17.74 | 20.25 | 20.17 | 221.92 | 0.4936 | -1506.0 | 999999 | |
| 0 | 8 | 0 | 5 | -18.64 | 20.32 | 20.24 | 220.75 | 0.5041 | -975.0 | -721.3 | |
| 0 | 9 | 0 | 5 | -18.34 | 20.14 | 20.07 | 220.93 | 0.4991 | -1036.0 | -920.0 | |
| 0 | 5 | 0 | 3 | -18.76 | 19.88 | 19.81 | 219.99 | 0.5012 | -724.0 | -622.7 | |
| 0 | 5 | 0 | 3 | -17.04 | 19.51 | 19.43 | 221.88 | 0.4784 | -620.0 | -518.2 | |
| 0 | 5 | 0 | 3 | -17.88 | 19.07 | 18.99 | 220.04 | 0.4834 | -666.0 | -392.9 | |
| 2 | 8 | 1 | 4 | -19.71 | 18.18 | 18.10 | 216.29 | 0.4962 | -1143.0 | -880.7 | |
| 0 | 3 | 0 | 2 | -19.32 | 18.00 | 17.92 | 216.53 | 0.4899 | -1124.0 | -953.3 | |
| 6 | 14 | 3 | 8 | -18.80 | 17.90 | 17.82 | 217.05 | 0.4828 | 993.2 | 1000.1 | |
| 3 | 15 | 2 | 8 | -18.20 | 17.75 | 17.67 | 217.62 | 0.4742 | 1169.7 | 775.8 | |
| 0 | 10 | 0 | 5 | -20.01 | 17.82 | 17.74 | 215.38 | 0.4964 | -1054.0 | -850.4 | |
| 0 | 5 | 0 | 3 | -20.17 | 17.39 | 17.31 | 214.53 | 0.4947 | -898.0 | -874.5 | |
| 0 | 4 | 0 | 2 | -20.15 | 16.60 | 16.52 | 213.33 | 0.4878 | -821.0 | -697.8 | |
| 0 | 8 | 0 | 4 | -20.99 | 14.66 | 14.58 | 209.25 | 0.4830 | -638.0 | -527.5 | |
| 0 | 7 | 0 | 4 | -17.31 | 13.82 | 13.74 | 212.14 | 0.4280 | -1011.0 | -801.0 | |
| 0 | 4 | 0 | 2 | -20.14 | 13.67 | 13.59 | 208.48 | 0.4645 | 507.0 | 349.6 | |
| 6 | 35 | 4 | 20 | -20.70 | 13.28 | 13.20 | 207.21 | 0.4692 | 958.8 | 600.4 | |
| 5 | -21 | 3 | -21 | -20.96 | 13.04 | 12.96 | 206.53 | 0.4710 | 878.5 | 999999 | |
| 0 | 3 | 0 | 2 | -17.03 | 12.57 | 12.49 | 210.09 | 0.4141 | -924.0 | -701.0 | |
| 0 | 13 | 0 | 7 | -21.25 | 12.50 | 12.42 | 205.28 | 0.4715 | 754.0 | 751.5 | |
| 2 | 11 | 1 | 6 | -20.64 | 12.19 | 12.11 | 205.33 | 0.4609 | 1039.8 | 865.7 | |
| 0 | 4 | 0 | 2 | -19.98 | 12.05 | 11.97 | 205.74 | 0.4509 | 498.0 | 531.9 | |
| 0 | 4 | 0 | 2 | -20.50 | 11.79 | 11.71 | 204.73 | 0.4564 | 1036.0 | 874.8 | |
| 4 | 146 | 2 | 81 | -20.89 | 11.69 | 11.61 | 204.17 | 0.4612 | 1331.2 | 938.7 | |
| 6 | -28 | 3 | -28 | -21.28 | 11.33 | 11.25 | 203.15 | 0.4644 | 968.7 | 999999 | |
| 3 | -28 | 1 | -28 | -20.89 | 11.26 | 11.18 | 203.38 | 0.4584 | 1582.4 | 999999 | |
| 3 | -28 | 2 | -28 | -21.28 | 10.99 | 10.91 | 202.52 | 0.4622 | 1111.5 | 999999 | |
| 2 | -28 | 1 | -28 | -20.79 | 10.91 | 10.83 | 202.81 | 0.4549 | 1623.3 | 999999 | |
| 0 | 3 | 0 | 2 | -21.58 | 10.88 | 10.80 | 202.06 | 0.4660 | 354.0 | 354.8 | |
| 7 | -28 | 4 | -28 | -20.74 | 10.52 | 10.44 | 202.11 | 0.4519 | 1719.5 | 999999 | |
| 0 | 7 | 0 | 4 | -22.89 | 9.89 | 9.81 | 199.20 | 0.4793 | 510.0 | 190.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
