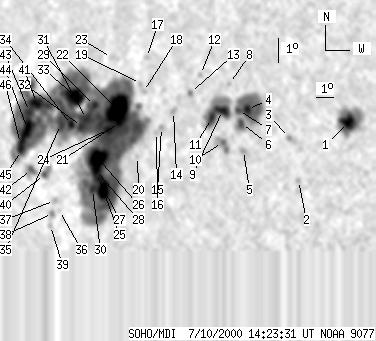

SOHO MDI 2000-07-10 14:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 344 | 2069 | 270 | 1631 | 17.98 | 309.09 | -50.10 | 69.86 | 0.7773 | -352.6 | -395.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-10 14:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19 | 81 | 12 | 51 | 18.90 | 322.95 | -36.25 | 64.21 | 0.6236 | 1255.1 | 613.9 | |
| 0 | 3 | 0 | 2 | 16.44 | 320.93 | -38.27 | 68.82 | 0.6394 | 791.0 | 695.6 | |
| 0 | 7 | 0 | 5 | 18.16 | 320.01 | -39.18 | 66.59 | 0.6565 | 654.0 | 529.1 | |
| 8 | 127 | 6 | 87 | 19.20 | 317.40 | -41.80 | 66.07 | 0.6910 | -1183.6 | -614.6 | |
| 0 | 6 | 0 | 4 | 17.53 | 317.67 | -41.53 | 68.35 | 0.6825 | -753.0 | -639.8 | |
| 5 | -4 | 4 | -4 | 18.62 | 317.24 | -41.96 | 66.94 | 0.6909 | -1168.0 | 999999 | |
| 3 | -4 | 2 | -4 | 19.14 | 316.91 | -42.29 | 66.33 | 0.6964 | -922.0 | 999999 | |
| 0 | 3 | 0 | 2 | 20.22 | 316.03 | -43.17 | 65.14 | 0.7098 | -317.0 | -237.4 | |
| 13 | 86 | 9 | 60 | 19.10 | 316.00 | -43.19 | 66.69 | 0.7066 | -1041.9 | -399.7 | |
| 0 | 24 | 0 | 16 | 17.80 | 316.41 | -42.79 | 68.36 | 0.6981 | -853.0 | -576.5 | |
| 10 | -9 | 7 | -9 | 18.74 | 315.48 | -43.71 | 67.34 | 0.7115 | -682.6 | 999999 | |
| 0 | 3 | 0 | 2 | 20.51 | 314.21 | -44.98 | 65.36 | 0.7307 | -519.0 | -467.4 | |
| 0 | 5 | 0 | 4 | 19.75 | 313.90 | -45.30 | 66.48 | 0.7319 | -665.0 | -585.9 | |
| 0 | 5 | 0 | 4 | 18.92 | 313.17 | -46.03 | 67.78 | 0.7377 | 513.0 | 339.3 | |
| 0 | 4 | 0 | 3 | 18.24 | 312.68 | -46.52 | 68.82 | 0.7413 | 556.0 | 515.3 | |
| 0 | 1 | 0 | 1 | 18.02 | 312.45 | -46.75 | 69.17 | 0.7433 | 150.0 | 51.4 | |
| 0 | 4 | 0 | 3 | 21.05 | 310.64 | -48.56 | 65.73 | 0.7697 | 655.0 | 492.0 | |
| 0 | 3 | 0 | 2 | 19.65 | 311.04 | -48.16 | 67.41 | 0.7622 | 500.0 | 530.6 | |
| 0 | 3 | 0 | 3 | 19.96 | 310.72 | -48.48 | 67.09 | 0.7663 | 731.0 | 626.3 | |
| 0 | 3 | 0 | 2 | 17.00 | 311.64 | -47.56 | 70.72 | 0.7500 | -681.0 | -630.6 | |
| 5 | 1643 | 4 | 1333 | 18.31 | 310.03 | -49.17 | 69.37 | 0.7698 | -1616.7 | -439.6 | |
| 59 | -21 | 46 | -21 | 18.87 | 309.62 | -49.58 | 68.75 | 0.7752 | 706.9 | 999999 | |
| 0 | 8 | 0 | 6 | 20.93 | 308.39 | -50.81 | 66.45 | 0.7919 | 428.0 | 342.2 | |
| 6 | -21 | 4 | -21 | 18.00 | 309.44 | -49.75 | 69.90 | 0.7753 | -2042.1 | 999999 | |
| 19 | -21 | 15 | -21 | 15.53 | 310.00 | -49.20 | 72.97 | 0.7651 | -1559.5 | 999999 | |
| 30 | -21 | 23 | -21 | 16.79 | 309.25 | -49.95 | 71.47 | 0.7752 | -1328.9 | 999999 | |
| 9 | -21 | 7 | -21 | 15.99 | 309.53 | -49.67 | 72.45 | 0.7709 | -1135.4 | 999999 | |
| 12 | -21 | 9 | -21 | 16.31 | 309.29 | -49.91 | 72.09 | 0.7739 | -1083.1 | 999999 | |
| 5 | -21 | 4 | -21 | 18.92 | 308.15 | -51.05 | 69.01 | 0.7902 | 677.6 | 999999 | |
| 6 | -21 | 5 | -21 | 15.53 | 309.30 | -49.90 | 73.09 | 0.7726 | -524.4 | 999999 | |
| 17 | -21 | 13 | -21 | 18.37 | 307.84 | -51.35 | 69.76 | 0.7922 | -589.0 | 999999 | |
| 8 | -21 | 6 | -21 | 18.03 | 307.65 | -51.55 | 70.22 | 0.7936 | -942.7 | 999999 | |
| 26 | -21 | 22 | -21 | 19.22 | 306.72 | -52.47 | 68.93 | 0.8048 | 893.9 | 999999 | |
| 5 | -21 | 4 | -21 | 18.07 | 306.95 | -52.24 | 70.30 | 0.8006 | 43.4 | 999999 | |
| 13 | -21 | 11 | -21 | 18.03 | 306.21 | -52.99 | 70.48 | 0.8078 | -526.4 | 999999 | |
| 0 | 2 | 0 | 2 | 14.58 | 307.46 | -51.74 | 74.58 | 0.7905 | -262.0 | -195.5 | |
| 0 | 5 | 0 | 4 | 14.96 | 307.00 | -52.20 | 74.16 | 0.7957 | -27.0 | 2.6 | |
| 0 | 6 | 0 | 5 | 14.43 | 307.04 | -52.16 | 74.82 | 0.7946 | 51.0 | 171.4 | |
| 0 | 4 | 0 | 3 | 13.95 | 307.07 | -52.13 | 75.42 | 0.7939 | 678.0 | 531.5 | |
| 3 | 16 | 2 | 13 | 15.96 | 305.95 | -53.25 | 73.07 | 0.8075 | -769.8 | -621.3 | |
| 18 | -21 | 16 | -21 | 18.83 | 304.13 | -55.07 | 69.87 | 0.8286 | -84.8 | 999999 | |
| 3 | 17 | 2 | 14 | 16.12 | 304.98 | -54.22 | 73.02 | 0.8171 | -559.6 | -246.5 | |
| 10 | -21 | 9 | -21 | 18.44 | 303.80 | -55.40 | 70.39 | 0.8311 | -356.2 | 999999 | |
| 17 | -21 | 15 | -21 | 17.75 | 303.98 | -55.22 | 71.19 | 0.8285 | -1061.9 | 999999 | |
| 15 | -21 | 13 | -21 | 16.84 | 303.95 | -55.25 | 72.28 | 0.8277 | -619.7 | 999999 | |
| -45 | -21 | -45 | -21 | 17.12 | 303.75 | -55.44 | 71.98 | 0.8298 | 999999 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
