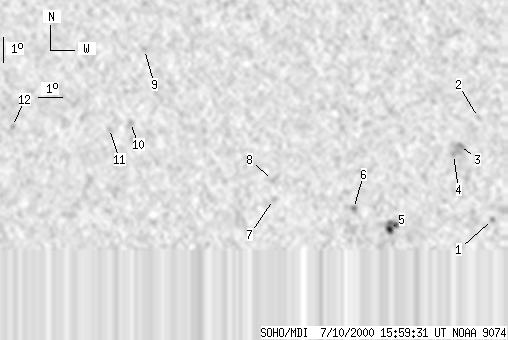

SOHO MDI 2000-07-10 15:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3 | 81 | 1 | 42 | 13.54 | 350.54 | -7.78 | 34.37 | 0.2223 | 437.2 | 321.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-10 15:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | 11.84 | 356.95 | -1.37 | 9.70 | 0.1394 | 1068.0 | 846.0 | |
| 0 | 5 | 0 | 3 | 15.93 | 356.34 | -1.97 | 9.06 | 0.2108 | 747.0 | 636.0 | |
| 0 | 12 | 0 | 6 | 14.80 | 355.58 | -2.74 | 13.81 | 0.1943 | 1023.0 | 938.1 | |
| 0 | 5 | 0 | 2 | 14.44 | 355.34 | -2.98 | 15.49 | 0.1893 | 1075.0 | 835.1 | |
| 3 | 23 | 1 | 12 | 11.42 | 352.78 | -5.54 | 36.06 | 0.1613 | 1333.5 | 855.9 | |
| 0 | 4 | 0 | 2 | 12.25 | 351.29 | -7.02 | 39.60 | 0.1882 | -1009.0 | -831.7 | |
| 0 | 5 | 0 | 3 | 12.57 | 348.00 | -10.31 | 49.24 | 0.2317 | -704.0 | -649.4 | |
| 0 | 7 | 0 | 4 | 13.33 | 347.93 | -10.38 | 46.98 | 0.2410 | -652.0 | -619.9 | |
| 0 | 2 | 0 | 1 | 18.55 | 342.15 | -16.16 | 46.06 | 0.3680 | -753.0 | -609.2 | |
| 0 | 8 | 0 | 4 | 15.58 | 341.82 | -16.50 | 53.31 | 0.3426 | -601.0 | -396.1 | |
| 0 | 3 | 0 | 1 | 15.32 | 340.94 | -17.38 | 55.27 | 0.3520 | -601.0 | -494.1 | |
| 0 | 4 | 0 | 2 | 15.30 | 336.71 | -21.60 | 60.48 | 0.4098 | 735.0 | 546.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
