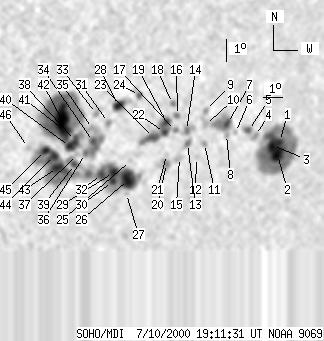

SOHO MDI 2000-07-10 19:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 219 | 1224 | 140 | 799 | -18.06 | 31.12 | 34.57 | 235.75 | 0.6523 | 351.8 | 47.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-10 19:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6 | 237 | 4 | 171 | -18.17 | 38.05 | 41.50 | 240.20 | 0.7278 | -1102.4 | -411.9 | |
| 14 | -1 | 10 | -1 | -18.72 | 38.10 | 41.56 | 239.54 | 0.7312 | -1042.8 | 999999 | |
| 9 | -1 | 7 | -1 | -18.32 | 37.71 | 41.16 | 239.82 | 0.7250 | -1438.8 | 999999 | |
| 0 | 8 | 0 | 5 | -17.84 | 36.63 | 40.09 | 239.83 | 0.7113 | -865.0 | -660.0 | |
| 4 | 11 | 3 | 8 | -17.61 | 36.19 | 39.64 | 239.87 | 0.7054 | -890.3 | -687.2 | |
| 0 | 3 | 0 | 2 | -17.66 | 35.51 | 38.96 | 239.40 | 0.6983 | -481.0 | -488.1 | |
| 6 | 39 | 4 | 27 | -17.26 | 34.98 | 38.43 | 239.61 | 0.6904 | -1020.4 | -831.1 | |
| 0 | 4 | 0 | 3 | -17.73 | 35.04 | 38.49 | 239.04 | 0.6937 | -461.0 | -422.8 | |
| 0 | 5 | 0 | 4 | -16.65 | 33.68 | 37.13 | 239.62 | 0.6726 | -856.0 | -815.0 | |
| 0 | 12 | 0 | 8 | -17.25 | 33.81 | 37.27 | 238.91 | 0.6776 | -871.0 | -813.8 | |
| 0 | 6 | 0 | 4 | -18.06 | 33.96 | 37.41 | 237.93 | 0.6839 | -787.0 | -560.8 | |
| 0 | 3 | 0 | 2 | -18.65 | 33.69 | 37.14 | 237.00 | 0.6844 | -670.0 | -541.2 | |
| 2 | 7 | 1 | 5 | -18.02 | 33.06 | 36.51 | 237.40 | 0.6739 | -702.6 | -590.1 | |
| 2 | 15 | 2 | 10 | -17.46 | 32.88 | 36.33 | 238.02 | 0.6685 | -1089.8 | -842.0 | |
| 0 | 9 | 0 | 6 | -18.61 | 32.79 | 36.24 | 236.45 | 0.6746 | 232.0 | 243.5 | |
| 2 | 6 | 1 | 4 | -16.80 | 32.27 | 35.72 | 238.50 | 0.6577 | 173.0 | -41.8 | |
| 0 | 6 | 0 | 4 | -17.44 | 32.31 | 35.76 | 237.67 | 0.6621 | -816.0 | -666.4 | |
| 0 | 6 | 0 | 4 | -16.28 | 31.90 | 35.35 | 238.97 | 0.6504 | -811.0 | -608.9 | |
| 5 | 66 | 3 | 43 | -17.03 | 31.76 | 35.21 | 237.84 | 0.6534 | -1277.9 | -849.1 | |
| 0 | 23 | 0 | 15 | -18.84 | 32.17 | 35.63 | 235.73 | 0.6694 | -397.0 | -338.1 | |
| 0 | 2 | 0 | 1 | -18.45 | 32.08 | 35.53 | 236.17 | 0.6659 | 446.0 | 434.7 | |
| 4 | -19 | 2 | -19 | -17.50 | 31.76 | 35.21 | 237.21 | 0.6564 | -949.2 | 999999 | |
| 8 | -19 | 5 | -19 | -17.69 | 31.24 | 34.69 | 236.59 | 0.6519 | -1177.9 | 999999 | |
| 3 | 12 | 2 | 7 | -15.87 | 30.17 | 33.62 | 238.33 | 0.6280 | 572.7 | 437.5 | |
| 0 | 2 | 0 | 1 | -18.63 | 30.29 | 33.74 | 234.64 | 0.6477 | 253.0 | 107.5 | |
| 27 | 347 | 18 | 222 | -19.45 | 30.38 | 33.83 | 233.62 | 0.6543 | 1176.9 | 204.4 | |
| 0 | 3 | 0 | 2 | -20.06 | 30.43 | 33.88 | 232.87 | 0.6590 | 387.0 | 394.9 | |
| 9 | 24 | 6 | 15 | -16.25 | 29.20 | 32.65 | 237.07 | 0.6194 | 900.9 | 346.8 | |
| 8 | -26 | 5 | -26 | -19.12 | 29.55 | 33.00 | 233.42 | 0.6431 | -1132.0 | 999999 | |
| 5 | -26 | 3 | -26 | -19.50 | 29.59 | 33.04 | 232.94 | 0.6462 | -824.9 | 999999 | |
| 0 | 5 | 0 | 3 | -16.96 | 28.85 | 32.30 | 235.81 | 0.6201 | 397.0 | 393.0 | |
| 8 | -26 | 5 | -26 | -19.18 | 28.96 | 32.41 | 232.88 | 0.6372 | -1041.5 | 999999 | |
| 0 | 5 | 0 | 3 | -16.55 | 28.18 | 31.63 | 235.85 | 0.6097 | 460.0 | 485.5 | |
| 5 | 45 | 3 | 28 | -17.74 | 28.26 | 31.72 | 234.26 | 0.6192 | 654.7 | 61.0 | |
| 0 | 13 | 0 | 8 | -17.18 | 28.11 | 31.56 | 234.90 | 0.6134 | 775.0 | 532.6 | |
| 2 | -34 | 1 | -34 | -18.24 | 27.97 | 31.42 | 233.33 | 0.6196 | 674.2 | 999999 | |
| 0 | 2 | 0 | 1 | -18.27 | 27.59 | 31.04 | 232.97 | 0.6156 | 570.0 | 586.3 | |
| 5 | 294 | 3 | 181 | -17.66 | 27.37 | 30.82 | 233.62 | 0.6086 | 994.1 | 812.7 | |
| 4 | -26 | 3 | -26 | -18.69 | 27.53 | 30.98 | 232.34 | 0.6181 | 744.3 | 999999 | |
| 6 | -38 | 4 | -38 | -17.91 | 27.13 | 30.58 | 233.07 | 0.6078 | 1054.9 | 999999 | |
| 48 | -38 | 29 | -38 | -17.26 | 26.81 | 30.27 | 233.71 | 0.5994 | 1773.8 | 999999 | |
| -41 | -38 | -41 | -38 | -16.79 | 26.59 | 30.04 | 234.18 | 0.5932 | 999999 | 999999 | |
| 13 | -26 | 8 | -26 | -18.79 | 26.72 | 30.17 | 231.51 | 0.6101 | 1103.2 | 999999 | |
| 8 | -26 | 5 | -26 | -18.27 | 26.47 | 29.92 | 232.00 | 0.6033 | 1248.5 | 999999 | |
| 6 | -26 | 3 | -26 | -18.04 | 26.00 | 29.45 | 231.90 | 0.5963 | 1418.3 | 999999 | |
| 0 | 4 | 0 | 2 | -17.88 | 25.16 | 28.61 | 231.35 | 0.5857 | 245.0 | 212.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
