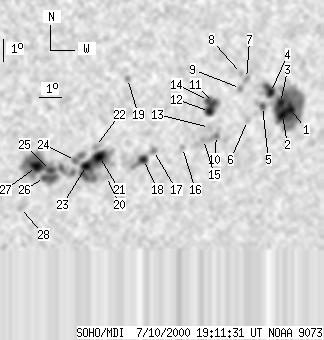

SOHO MDI 2000-07-10 19:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89 | 622 | 52 | 358 | -19.75 | 15.94 | 19.39 | 217.64 | 0.5126 | 64.5 | 26.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-10 19:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10 | 188 | 6 | 111 | -18.62 | 21.54 | 24.99 | 226.62 | 0.5529 | -1226.7 | -668.2 | |
| 10 | -1 | 6 | -1 | -18.87 | 21.21 | 24.66 | 225.91 | 0.5518 | -1328.2 | 999999 | |
| 5 | -1 | 3 | -1 | -18.35 | 21.04 | 24.49 | 226.44 | 0.5450 | -1698.0 | 999999 | |
| 6 | -1 | 3 | -1 | -17.90 | 20.51 | 23.96 | 226.47 | 0.5352 | -1422.8 | 999999 | |
| 3 | 13 | 2 | 8 | -18.49 | 20.23 | 23.69 | 225.31 | 0.5380 | -1006.6 | -811.2 | |
| 0 | 4 | 0 | 3 | -19.08 | 19.64 | 23.09 | 223.79 | 0.5376 | -411.0 | -534.4 | |
| 0 | 6 | 0 | 3 | -17.27 | 19.34 | 22.79 | 225.98 | 0.5164 | -1112.0 | -890.6 | |
| 0 | 4 | 0 | 2 | -17.05 | 19.09 | 22.54 | 225.99 | 0.5115 | -852.0 | -644.3 | |
| 0 | 5 | 0 | 3 | -17.69 | 19.12 | 22.58 | 225.10 | 0.5183 | -897.0 | -714.8 | |
| 0 | 15 | 0 | 9 | -19.69 | 18.32 | 21.77 | 221.34 | 0.5307 | -229.0 | -394.1 | |
| 4 | 34 | 2 | 20 | -18.26 | 17.98 | 21.44 | 222.85 | 0.5123 | 826.2 | 964.0 | |
| 7 | -11 | 4 | -11 | -18.64 | 17.86 | 21.31 | 222.16 | 0.5150 | 1036.5 | 999999 | |
| 0 | 6 | 0 | 3 | -19.33 | 17.95 | 21.40 | 221.34 | 0.5233 | -868.0 | -723.2 | |
| 3 | -11 | 2 | -11 | -18.17 | 17.75 | 21.20 | 222.67 | 0.5089 | 1358.9 | 999999 | |
| 0 | 14 | 0 | 8 | -19.84 | 17.75 | 21.20 | 220.40 | 0.5269 | -1086.0 | -772.7 | |
| 0 | 5 | 0 | 3 | -20.17 | 16.85 | 20.30 | 218.79 | 0.5219 | -736.0 | -646.6 | |
| 0 | 7 | 0 | 4 | -20.27 | 15.56 | 19.01 | 216.88 | 0.5112 | -1154.0 | -964.4 | |
| 6 | 17 | 4 | 10 | -20.65 | 15.16 | 18.61 | 215.84 | 0.5121 | -1198.8 | -721.5 | |
| 0 | 4 | 0 | 2 | -17.14 | 14.06 | 17.51 | 218.82 | 0.4606 | -739.0 | -614.0 | |
| 0 | 6 | 0 | 3 | -21.35 | 13.60 | 17.05 | 212.71 | 0.5074 | -226.0 | -389.7 | |
| 10 | 112 | 6 | 64 | -20.47 | 13.19 | 16.64 | 213.11 | 0.4931 | 1311.0 | 278.2 | |
| 0 | 6 | 0 | 3 | -20.03 | 12.96 | 16.41 | 213.28 | 0.4858 | 935.0 | 778.4 | |
| 8 | -21 | 5 | -21 | -20.85 | 12.66 | 16.11 | 211.83 | 0.4935 | 1065.0 | 999999 | |
| 0 | 14 | 0 | 8 | -20.63 | 12.15 | 15.60 | 211.28 | 0.4866 | 1370.0 | 1100.9 | |
| 3 | 153 | 2 | 86 | -21.04 | 11.09 | 14.54 | 209.10 | 0.4838 | 1548.2 | 858.2 | |
| 2 | -25 | 1 | -25 | -21.34 | 10.86 | 14.31 | 208.39 | 0.4861 | 1011.1 | 999999 | |
| 12 | -25 | 6 | -25 | -20.86 | 10.46 | 13.91 | 208.24 | 0.4767 | 1715.4 | 999999 | |
| 0 | 9 | 0 | 5 | -22.65 | 9.93 | 13.38 | 205.56 | 0.4971 | 644.0 | 628.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
