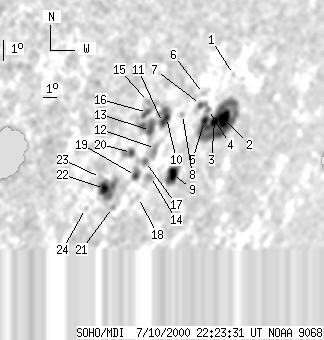

SOHO MDI 2000-07-10 22:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50 | 406 | 49 | 385 | -18.51 | 49.30 | 54.51 | 245.25 | 0.8516 | -337.7 | -127.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-10 22:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 2 | 0 | 2 | -15.99 | 52.14 | 57.36 | 248.98 | 0.8692 | -419.0 | -415.7 | |
| 12 | 162 | 13 | 162 | -17.85 | 52.34 | 57.56 | 246.97 | 0.8749 | -500.7 | -158.6 | |
| 6 | -2 | 6 | -2 | -17.94 | 51.61 | 56.83 | 246.66 | 0.8693 | -696.1 | 999999 | |
| 0 | 5 | 0 | 5 | -17.39 | 50.89 | 56.11 | 247.06 | 0.8622 | -310.0 | -326.9 | |
| 5 | -2 | 4 | -2 | -17.85 | 50.81 | 56.03 | 246.52 | 0.8626 | -771.4 | 999999 | |
| 0 | 4 | 0 | 4 | -16.67 | 50.19 | 55.41 | 247.66 | 0.8547 | -641.0 | -648.6 | |
| 0 | 11 | 0 | 11 | -17.13 | 50.18 | 55.40 | 247.13 | 0.8557 | -727.0 | -565.3 | |
| 0 | 4 | 0 | 4 | -17.49 | 49.03 | 54.25 | 246.37 | 0.8470 | -464.0 | -406.4 | |
| 11 | 29 | 11 | 27 | -20.07 | 49.55 | 54.77 | 243.64 | 0.8583 | -559.4 | -391.6 | |
| 3 | 30 | 3 | 27 | -17.55 | 47.93 | 53.15 | 245.93 | 0.8377 | -359.4 | -136.8 | |
| 2 | -10 | 2 | -10 | -17.75 | 47.74 | 52.95 | 245.64 | 0.8366 | -250.8 | 999999 | |
| 0 | 15 | 0 | 14 | -18.85 | 47.74 | 52.95 | 244.38 | 0.8398 | -207.0 | -241.5 | |
| 0 | 30 | 0 | 26 | -18.05 | 47.04 | 52.25 | 245.05 | 0.8313 | -197.0 | -20.8 | |
| 0 | 12 | 0 | 11 | -20.07 | 47.96 | 53.18 | 243.09 | 0.8453 | -648.0 | -497.1 | |
| 0 | 3 | 0 | 3 | -16.79 | 46.39 | 51.61 | 246.29 | 0.8218 | 366.0 | 327.1 | |
| 0 | 9 | 0 | 8 | -17.26 | 46.51 | 51.72 | 245.78 | 0.8242 | 782.0 | 639.4 | |
| 0 | 7 | 0 | 7 | -19.38 | 47.28 | 52.50 | 243.62 | 0.8375 | -61.0 | 53.9 | |
| 0 | 3 | 0 | 3 | -20.95 | 47.55 | 52.77 | 241.95 | 0.8446 | 145.0 | 141.6 | |
| 2 | 14 | 2 | 13 | -19.96 | 46.86 | 52.08 | 242.81 | 0.8357 | -550.1 | -353.7 | |
| 0 | 14 | 0 | 12 | -18.93 | 46.12 | 51.34 | 243.71 | 0.8260 | 582.0 | 561.5 | |
| 0 | 3 | 0 | 3 | -21.29 | 45.92 | 51.14 | 240.95 | 0.8321 | 297.0 | 200.9 | |
| 9 | 46 | 8 | 40 | -20.41 | 44.97 | 50.19 | 241.56 | 0.8209 | 633.7 | 43.0 | |
| 0 | 2 | 0 | 2 | -19.91 | 44.49 | 49.70 | 241.94 | 0.8148 | 691.0 | 643.0 | |
| 0 | 1 | 0 | 1 | -21.23 | 44.09 | 49.31 | 240.27 | 0.8161 | 353.0 | 369.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
