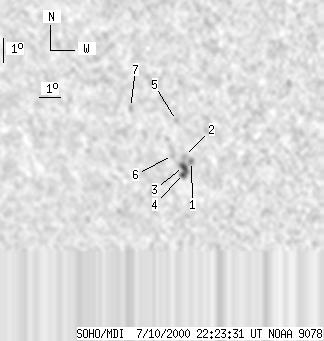

SOHO MDI 2000-07-10 22:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5 | 48 | 3 | 28 | -12.38 | 325.35 | -29.44 | 119.66 | 0.5547 | -852.4 | -725.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-10 22:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -12.64 | 326.07 | -28.71 | 120.68 | 0.5471 | -1093.0 | -908.9 | |
| 0 | 5 | 0 | 3 | -12.44 | 325.77 | -29.01 | 120.11 | 0.5496 | -1089.0 | -981.7 | |
| 2 | 19 | 1 | 11 | -12.86 | 325.67 | -29.11 | 120.69 | 0.5537 | -955.6 | -832.0 | |
| 3 | -3 | 2 | -3 | -13.15 | 325.64 | -29.15 | 121.12 | 0.5562 | -819.0 | 999999 | |
| 0 | 3 | 0 | 2 | -10.97 | 325.57 | -29.21 | 117.53 | 0.5424 | -556.0 | -404.7 | |
| 0 | 12 | 0 | 7 | -12.42 | 325.22 | -29.57 | 119.61 | 0.5564 | -754.0 | -561.6 | |
| 0 | 5 | 0 | 3 | -10.52 | 323.47 | -31.31 | 115.23 | 0.5670 | -587.0 | -548.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
