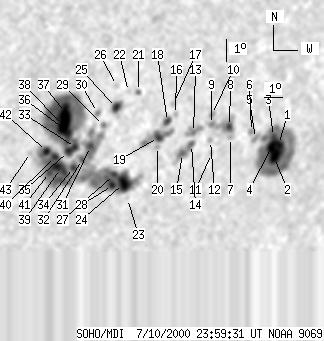

SOHO MDI 2000-07-10 23:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 192 | 1179 | 130 | 794 | -18.06 | 30.83 | 36.93 | 237.34 | 0.6778 | 326.1 | 96.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-10 23:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41 | 240 | 31 | 181 | -18.25 | 38.29 | 44.39 | 241.55 | 0.7578 | -1049.1 | -303.8 | |
| -1 | -1 | -1 | -1 | -18.80 | 38.23 | 44.33 | 240.85 | 0.7597 | 999999 | 999999 | |
| 4 | -1 | 3 | -1 | -17.89 | 37.88 | 43.98 | 241.80 | 0.7521 | -1049.6 | 999999 | |
| -1 | -1 | -1 | -1 | -18.32 | 37.90 | 44.00 | 241.28 | 0.7542 | 999999 | 999999 | |
| 0 | 8 | 0 | 6 | -17.93 | 36.85 | 42.95 | 241.25 | 0.7418 | -569.0 | -599.8 | |
| 0 | 6 | 0 | 4 | -17.61 | 36.53 | 42.63 | 241.47 | 0.7370 | -785.0 | -700.3 | |
| 0 | 4 | 0 | 3 | -17.81 | 35.41 | 41.51 | 240.64 | 0.7263 | -562.0 | -511.9 | |
| 5 | 17 | 4 | 12 | -17.34 | 35.22 | 41.32 | 241.14 | 0.7220 | -942.0 | -827.0 | |
| 0 | 12 | 0 | 8 | -17.20 | 34.19 | 40.29 | 240.75 | 0.7104 | -996.0 | -799.6 | |
| 0 | 5 | 0 | 4 | -16.77 | 34.08 | 40.18 | 241.24 | 0.7070 | -683.0 | -662.6 | |
| 0 | 3 | 0 | 2 | -18.45 | 34.54 | 40.64 | 239.35 | 0.7204 | -424.0 | -356.1 | |
| 0 | 4 | 0 | 3 | -17.89 | 34.33 | 40.42 | 239.94 | 0.7153 | -471.0 | -483.0 | |
| 0 | 20 | 0 | 14 | -17.50 | 33.30 | 39.40 | 239.85 | 0.7023 | -1052.0 | -851.6 | |
| 2 | 30 | 2 | 21 | -18.01 | 33.32 | 39.42 | 239.21 | 0.7053 | -867.0 | -403.9 | |
| 5 | -14 | 3 | -14 | -18.38 | 32.94 | 39.04 | 238.51 | 0.7032 | -513.2 | 999999 | |
| 0 | 5 | 0 | 3 | -16.69 | 32.13 | 38.23 | 240.23 | 0.6852 | -78.0 | -80.2 | |
| 0 | 4 | 0 | 3 | -16.21 | 31.92 | 38.02 | 240.73 | 0.6802 | -428.0 | -413.9 | |
| 5 | 10 | 3 | 7 | -16.96 | 31.78 | 37.88 | 239.65 | 0.6828 | -922.3 | -589.2 | |
| 6 | 44 | 4 | 30 | -17.63 | 31.47 | 37.57 | 238.58 | 0.6832 | -1119.2 | -768.3 | |
| 0 | 3 | 0 | 2 | -18.01 | 31.51 | 37.61 | 238.10 | 0.6859 | -673.0 | -535.5 | |
| 0 | 5 | 0 | 3 | -15.62 | 29.98 | 36.08 | 240.33 | 0.6550 | 437.0 | 443.1 | |
| 0 | 2 | 0 | 2 | -15.60 | 29.47 | 35.57 | 240.03 | 0.6490 | 547.0 | 432.3 | |
| 0 | 2 | 0 | 1 | -20.20 | 30.51 | 36.60 | 234.64 | 0.6885 | 435.0 | 408.2 | |
| 15 | 433 | 10 | 282 | -19.54 | 30.12 | 36.22 | 235.22 | 0.6803 | 1244.9 | 199.6 | |
| 5 | 19 | 3 | 12 | -16.25 | 28.99 | 35.09 | 238.81 | 0.6475 | 1011.9 | 551.4 | |
| 0 | 3 | 0 | 2 | -15.32 | 28.81 | 34.91 | 239.98 | 0.6397 | 417.0 | 389.7 | |
| 4 | -24 | 2 | -24 | -19.12 | 29.54 | 35.64 | 235.35 | 0.6716 | -867.4 | 999999 | |
| 4 | -24 | 3 | -24 | -19.60 | 29.56 | 35.66 | 234.75 | 0.6748 | -573.6 | 999999 | |
| 0 | 5 | 0 | 3 | -16.99 | 28.49 | 34.59 | 237.45 | 0.6464 | 684.0 | 504.5 | |
| 0 | 5 | 0 | 3 | -16.43 | 28.07 | 34.17 | 237.93 | 0.6381 | 822.0 | 580.1 | |
| 5 | -24 | 3 | -24 | -17.86 | 28.02 | 34.12 | 235.93 | 0.6469 | 745.8 | 999999 | |
| 3 | -24 | 2 | -24 | -18.41 | 27.74 | 33.84 | 234.99 | 0.6474 | 695.3 | 999999 | |
| 4 | 286 | 3 | 181 | -17.88 | 27.27 | 33.37 | 235.35 | 0.6387 | 955.8 | 775.2 | |
| 4 | -24 | 2 | -24 | -18.73 | 27.36 | 33.46 | 234.27 | 0.6455 | 840.0 | 999999 | |
| 6 | -33 | 4 | -33 | -18.03 | 26.96 | 33.06 | 234.90 | 0.6363 | 1062.1 | 999999 | |
| 45 | -33 | 29 | -33 | -17.22 | 26.79 | 32.89 | 235.88 | 0.6288 | 1667.1 | 999999 | |
| -36 | -33 | -36 | -33 | -16.36 | 26.47 | 32.57 | 236.84 | 0.6193 | 999999 | 999999 | |
| -36 | -33 | -36 | -33 | -16.91 | 26.48 | 32.58 | 236.07 | 0.6232 | 999999 | 999999 | |
| 17 | -24 | 11 | -24 | -18.75 | 26.72 | 32.81 | 233.75 | 0.6386 | 1111.1 | 999999 | |
| 4 | -24 | 3 | -24 | -18.22 | 26.35 | 32.45 | 234.17 | 0.6309 | 1195.0 | 999999 | |
| 4 | -24 | 2 | -24 | -18.90 | 26.20 | 32.30 | 233.14 | 0.6342 | 551.6 | 999999 | |
| 4 | -24 | 3 | -24 | -17.99 | 25.86 | 31.96 | 234.09 | 0.6238 | 1446.7 | 999999 | |
| 0 | 4 | 0 | 2 | -18.00 | 25.08 | 31.18 | 233.43 | 0.6153 | 731.0 | 583.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
