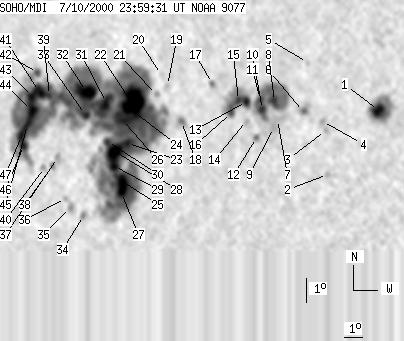

SOHO MDI 2000-07-10 23:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 353 | 2382 | 250 | 1704 | 17.96 | 309.05 | -44.85 | 68.62 | 0.7207 | -287.2 | -353.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-10 23:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15 | 77 | 9 | 46 | 18.92 | 322.79 | -31.11 | 61.38 | 0.5590 | 1368.6 | 729.2 | |
| 0 | 3 | 0 | 2 | 16.23 | 320.82 | -33.08 | 66.99 | 0.5716 | 442.0 | 534.7 | |
| 0 | 4 | 0 | 2 | 18.01 | 320.36 | -33.54 | 64.29 | 0.5854 | 740.0 | 568.7 | |
| 0 | 5 | 0 | 3 | 18.37 | 320.13 | -33.77 | 63.84 | 0.5900 | 762.0 | 578.4 | |
| 0 | 2 | 0 | 2 | 20.76 | 318.78 | -35.12 | 60.85 | 0.6183 | 315.0 | 386.9 | |
| 0 | 16 | 0 | 10 | 18.74 | 319.08 | -34.82 | 63.80 | 0.6049 | 914.0 | 552.9 | |
| 0 | 11 | 0 | 7 | 18.36 | 317.83 | -36.07 | 65.00 | 0.6188 | -617.0 | -530.0 | |
| 12 | 140 | 7 | 89 | 19.09 | 317.50 | -36.41 | 64.04 | 0.6260 | -1237.8 | -601.7 | |
| 0 | 11 | 0 | 7 | 18.03 | 317.71 | -36.19 | 65.57 | 0.6190 | -617.0 | -709.0 | |
| 5 | -8 | 3 | -8 | 18.74 | 316.96 | -36.94 | 64.82 | 0.6312 | -1402.5 | 999999 | |
| 6 | -8 | 4 | -8 | 19.14 | 316.75 | -37.15 | 64.31 | 0.6354 | -968.4 | 999999 | |
| 0 | 5 | 0 | 3 | 17.59 | 316.93 | -36.97 | 66.59 | 0.6270 | -1017.0 | -831.9 | |
| 7 | 77 | 4 | 50 | 19.03 | 316.04 | -37.87 | 64.80 | 0.6436 | -1033.7 | -366.5 | |
| 0 | 5 | 0 | 3 | 18.26 | 316.24 | -37.66 | 65.87 | 0.6381 | -755.0 | -677.9 | |
| 5 | -13 | 3 | -13 | 19.05 | 315.60 | -38.30 | 64.95 | 0.6489 | -825.8 | 999999 | |
| 5 | -13 | 3 | -13 | 18.55 | 315.36 | -38.54 | 65.80 | 0.6498 | -809.0 | 999999 | |
| 0 | 6 | 0 | 4 | 19.69 | 314.01 | -39.89 | 64.69 | 0.6702 | -676.0 | -642.8 | |
| 0 | 11 | 0 | 7 | 18.07 | 312.77 | -41.13 | 67.48 | 0.6792 | 439.0 | 324.1 | |
| 0 | 3 | 0 | 2 | 19.50 | 311.55 | -42.35 | 65.89 | 0.6980 | 598.0 | 500.6 | |
| 0 | 2 | 0 | 2 | 19.93 | 311.06 | -42.84 | 65.46 | 0.7050 | 588.0 | 424.0 | |
| 0 | 5 | 0 | 3 | 19.10 | 311.05 | -42.85 | 66.61 | 0.7025 | 696.0 | 575.3 | |
| 64 | 1962 | 45 | 1435 | 18.67 | 309.80 | -44.10 | 67.60 | 0.7154 | 825.0 | -388.2 | |
| 5 | -22 | 3 | -22 | 17.04 | 310.02 | -43.88 | 69.78 | 0.7086 | -1714.3 | 999999 | |
| -22 | -22 | -22 | -22 | 18.50 | 309.56 | -44.34 | 67.91 | 0.7176 | 999999 | 999999 | |
| 15 | -22 | 10 | -22 | 15.50 | 310.17 | -43.73 | 71.90 | 0.7032 | -1640.1 | 999999 | |
| 25 | -22 | 18 | -22 | 18.00 | 309.43 | -44.47 | 68.63 | 0.7177 | -1498.5 | 999999 | |
| 13 | -22 | 9 | -22 | 15.05 | 310.23 | -43.67 | 72.51 | 0.7015 | -1532.4 | 999999 | |
| 24 | -22 | 17 | -22 | 16.68 | 309.37 | -44.53 | 70.45 | 0.7152 | -1376.8 | 999999 | |
| 11 | -22 | 8 | -22 | 16.08 | 309.55 | -44.35 | 71.24 | 0.7118 | -1162.5 | 999999 | |
| 6 | -22 | 4 | -22 | 17.07 | 308.85 | -45.05 | 70.06 | 0.7221 | -949.5 | 999999 | |
| 23 | -22 | 17 | -22 | 18.64 | 308.27 | -45.63 | 68.09 | 0.7324 | 696.1 | 999999 | |
| 30 | -22 | 22 | -22 | 19.03 | 306.91 | -46.99 | 67.94 | 0.7481 | 1014.1 | 999999 | |
| 6 | -22 | 5 | -22 | 18.09 | 307.19 | -46.71 | 69.10 | 0.7429 | 240.3 | 999999 | |
| 0 | 7 | 0 | 5 | 14.03 | 308.30 | -45.60 | 74.34 | 0.7222 | -414.0 | -357.6 | |
| 0 | 8 | 0 | 6 | 14.31 | 307.45 | -46.45 | 74.11 | 0.7324 | 782.0 | 409.6 | |
| 0 | 3 | 0 | 2 | 14.65 | 307.06 | -46.84 | 73.72 | 0.7375 | -306.0 | -386.7 | |
| 0 | 9 | 0 | 7 | 16.27 | 306.08 | -47.82 | 71.76 | 0.7513 | -627.0 | -575.2 | |
| 0 | 5 | 0 | 4 | 15.94 | 305.88 | -48.02 | 72.24 | 0.7528 | -675.0 | -517.8 | |
| 3 | -22 | 2 | -22 | 18.75 | 304.69 | -49.21 | 68.85 | 0.7710 | -882.8 | 999999 | |
| 0 | 5 | 0 | 3 | 15.83 | 305.42 | -48.48 | 72.47 | 0.7577 | -533.0 | -433.0 | |
| 16 | -22 | 13 | -22 | 18.88 | 303.99 | -49.91 | 68.84 | 0.7785 | -255.6 | 999999 | |
| 4 | -22 | 3 | -22 | 19.64 | 303.54 | -50.36 | 67.98 | 0.7846 | 715.5 | 999999 | |
| 8 | -22 | 7 | -22 | 18.65 | 303.62 | -50.28 | 69.21 | 0.7818 | 315.5 | 999999 | |
| 16 | -22 | 13 | -22 | 18.09 | 303.79 | -50.11 | 69.89 | 0.7790 | -1018.5 | 999999 | |
| 10 | -22 | 7 | -22 | 17.51 | 303.75 | -50.15 | 70.64 | 0.7783 | -1140.8 | 999999 | |
| 8 | -22 | 6 | -22 | 16.65 | 303.81 | -50.09 | 71.72 | 0.7763 | -908.7 | 999999 | |
| 11 | -22 | 8 | -22 | 17.04 | 303.53 | -50.37 | 71.27 | 0.7798 | -716.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
