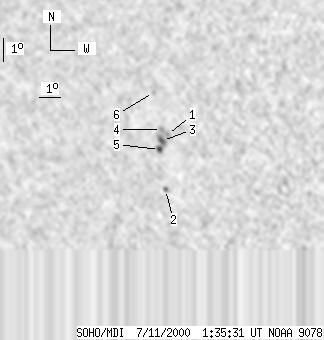

SOHO MDI 2000-07-11 01:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2 | 28 | 1 | 16 | -13.03 | 325.71 | -27.31 | 122.57 | 0.5326 | -651.3 | -640.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-11 01:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -12.69 | 326.00 | -27.02 | 122.29 | 0.5263 | -1045.0 | -869.5 | |
| 0 | 4 | 0 | 2 | -14.99 | 325.61 | -27.40 | 125.59 | 0.5488 | 606.0 | 404.7 | |
| 0 | 9 | 0 | 5 | -12.95 | 325.74 | -27.28 | 122.47 | 0.5315 | -1117.0 | -855.8 | |
| 0 | 4 | 0 | 3 | -12.49 | 325.75 | -27.27 | 121.73 | 0.5280 | -1018.0 | -944.8 | |
| 2 | 5 | 1 | 3 | -13.33 | 325.56 | -27.46 | 122.92 | 0.5366 | -679.3 | -587.7 | |
| 0 | 2 | 0 | 1 | -10.98 | 325.55 | -27.47 | 119.00 | 0.5198 | -543.0 | -434.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
