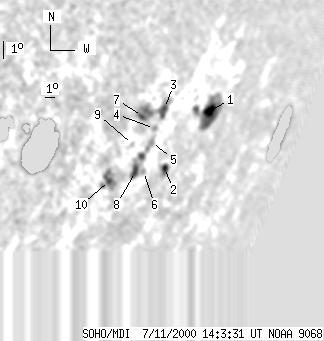

SOHO MDI 2000-07-11 14:03:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25 | 255 | 32 | 312 | -18.68 | 49.20 | 63.06 | 247.44 | 0.9151 | -370.8 | -25.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-11 14:03:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14 | 93 | 19 | 128 | -17.93 | 52.51 | 66.37 | 249.03 | 0.9350 | -386.1 | -41.5 | |
| 3 | 12 | 4 | 16 | -20.16 | 49.68 | 63.54 | 246.04 | 0.9213 | -513.4 | -319.9 | |
| 0 | 25 | 0 | 29 | -17.54 | 47.93 | 61.79 | 248.40 | 0.9054 | -172.0 | -140.6 | |
| 0 | 4 | 0 | 4 | -18.36 | 47.54 | 61.40 | 247.42 | 0.9042 | -229.0 | -275.0 | |
| 0 | 13 | 0 | 15 | -18.96 | 47.65 | 61.51 | 246.81 | 0.9061 | 142.0 | 114.3 | |
| 0 | 4 | 0 | 5 | -20.21 | 47.77 | 61.63 | 245.50 | 0.9091 | -466.0 | -433.9 | |
| 2 | 31 | 2 | 34 | -17.76 | 46.16 | 60.02 | 247.71 | 0.8933 | 196.0 | 262.4 | |
| 5 | 36 | 6 | 41 | -20.16 | 47.03 | 60.89 | 245.36 | 0.9041 | -595.8 | -254.9 | |
| 0 | 2 | 0 | 2 | -18.94 | 46.00 | 59.86 | 246.39 | 0.8945 | 350.0 | 357.3 | |
| 1 | 35 | 1 | 38 | -20.42 | 44.99 | 58.85 | 244.51 | 0.8904 | 410.0 | 237.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
