groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

9070 178 1173 142 942 17.65 35.47 51.28 289.40 0.7883 190.0 273.4


previous   or   next   observation for the same group / back to the solar disc

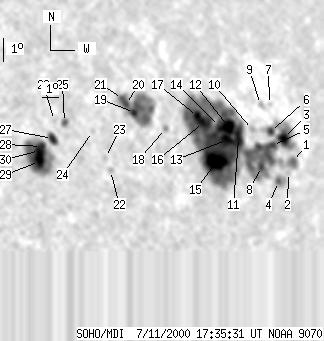

SOHO MDI 2000-07-11 17:35:31 UT
No observation available


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 4 16 3 14 16.44 41.05 56.86 286.96 0.8417 862.8 611.0
2 0 3 0 3 16.02 40.56 56.37 286.52 0.8369 311.0 381.4
3 11 838 10 699 17.40 40.81 56.62 288.12 0.8406 653.0 427.0
4 3 17 3 15 15.70 39.69 55.50 286.24 0.8284 -235.6 87.3
5 4 -3 4 -3 17.16 39.88 55.69 287.97 0.8318 856.3 999999
6 5 -3 4 -3 17.73 40.00 55.81 288.64 0.8335 702.8 999999
7 0 2 0 1 18.82 40.46 56.27 289.86 0.8391 419.0 363.9
8 4 -3 4 -3 16.37 38.73 54.54 287.17 0.8201 17.3 999999
9 0 5 0 4 18.86 39.80 55.61 290.01 0.8332 536.0 386.7
10 0 5 0 5 17.89 38.75 54.56 289.01 0.8222 470.0 459.1
11 18 -3 15 -3 17.62 37.63 53.44 288.86 0.8112 768.9 999999
12 15 -3 13 -3 18.10 37.14 52.95 289.53 0.8071 959.2 999999
13 12 -3 10 -3 17.58 36.85 52.66 288.94 0.8035 1598.8 999999
14 8 -3 6 -3 18.13 36.53 52.34 289.68 0.8013 1055.6 999999
15 33 -3 26 -3 16.74 35.77 51.58 288.07 0.7914 -700.6 999999
16 9 -3 7 -3 18.35 35.54 51.35 290.14 0.7918 1255.8 999999
17 6 -3 5 -3 18.62 35.25 51.06 290.53 0.7893 1198.2 999999
18 0 6 0 4 18.24 33.01 48.82 290.53 0.7656 -370.0 -308.7
19 4 123 3 91 18.99 31.35 47.16 291.90 0.7495 -602.8 132.1
20 4 -19 3 -19 19.34 30.92 46.73 292.47 0.7458 -354.1 999999
21 3 -19 2 -19 19.59 30.84 46.64 292.83 0.7455 -172.3 999999
22 0 5 0 3 16.71 29.14 44.95 289.42 0.7197 -656.0 -576.8
23 0 4 0 3 17.25 29.01 44.82 290.19 0.7195 -580.0 -537.1
24 0 3 0 2 18.34 28.59 44.40 291.79 0.7176 -493.0 -510.3
25 2 9 2 6 18.78 27.11 42.92 292.85 0.7020 -727.0 -490.0
26 0 3 0 2 18.89 26.58 42.38 293.18 0.6961 -383.0 -451.5
27 8 15 6 10 18.16 26.24 42.05 292.27 0.6900 -668.7 -411.7
28 12 119 8 80 17.86 25.54 41.35 292.08 0.6808 -1139.5 -683.1
29 13 -28 8 -28 17.26 25.26 41.07 291.31 0.6757 -1541.6 999999
30 -28 -28 -28 -28 17.71 25.38 41.19 291.91 0.6785 999999 999999


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
