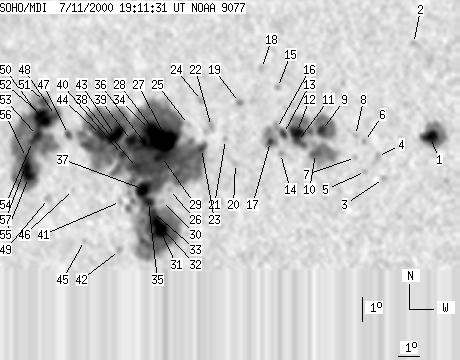

SOHO MDI 2000-07-11 19:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 417 | 2633 | 259 | 1614 | 17.87 | 309.49 | -33.82 | 64.43 | 0.5875 | -184.5 | -343.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-11 19:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21 | 77 | 11 | 42 | 18.89 | 322.51 | -20.80 | 52.29 | 0.4264 | 1490.2 | 707.1 | |
| 0 | 5 | 0 | 3 | 22.75 | 321.16 | -22.15 | 46.95 | 0.4777 | 739.0 | 633.0 | |
| 0 | 4 | 0 | 2 | 17.16 | 320.63 | -22.68 | 57.87 | 0.4369 | 769.0 | 752.3 | |
| 0 | 7 | 0 | 4 | 18.05 | 320.24 | -23.07 | 56.50 | 0.4486 | 709.0 | 597.6 | |
| 0 | 4 | 0 | 2 | 17.42 | 319.78 | -23.53 | 58.19 | 0.4500 | 699.0 | 637.9 | |
| 0 | 4 | 0 | 2 | 18.65 | 319.56 | -23.75 | 56.04 | 0.4619 | 894.0 | 696.0 | |
| 0 | 4 | 0 | 2 | 17.98 | 319.25 | -24.06 | 57.62 | 0.4611 | 470.0 | 405.6 | |
| 0 | 4 | 0 | 2 | 18.88 | 319.11 | -24.19 | 56.04 | 0.4694 | 529.0 | 558.0 | |
| 6 | 185 | 4 | 106 | 19.04 | 317.52 | -25.79 | 57.24 | 0.4911 | -1311.7 | -633.5 | |
| 6 | 77 | 3 | 43 | 18.09 | 317.39 | -25.92 | 59.09 | 0.4862 | -1370.6 | -810.0 | |
| 4 | -9 | 2 | -9 | 18.55 | 316.48 | -26.83 | 59.01 | 0.5012 | -1338.8 | 999999 | |
| 17 | -9 | 9 | -9 | 18.92 | 316.37 | -26.94 | 58.44 | 0.5050 | -1356.7 | 999999 | |
| 6 | 9 | 3 | 5 | 18.86 | 315.76 | -27.54 | 59.04 | 0.5124 | -1059.3 | -801.2 | |
| 0 | 5 | 0 | 3 | 18.04 | 315.77 | -27.54 | 60.50 | 0.5072 | -739.0 | -821.5 | |
| 0 | 4 | 0 | 3 | 20.74 | 315.12 | -28.19 | 56.32 | 0.5330 | 376.0 | 319.4 | |
| 0 | 8 | 0 | 5 | 19.05 | 315.40 | -27.91 | 58.98 | 0.5183 | -793.0 | -618.7 | |
| 5 | 33 | 3 | 19 | 18.51 | 315.21 | -28.10 | 60.08 | 0.5173 | -846.4 | -395.1 | |
| 0 | 4 | 0 | 2 | 21.50 | 314.18 | -29.13 | 55.82 | 0.5495 | -483.0 | -551.6 | |
| 0 | 6 | 0 | 4 | 20.06 | 313.42 | -29.89 | 58.75 | 0.5496 | 651.0 | 573.0 | |
| 0 | 4 | 0 | 2 | 17.56 | 313.72 | -29.59 | 62.81 | 0.5314 | 367.0 | 203.8 | |
| 0 | 4 | 0 | 2 | 18.52 | 313.05 | -30.26 | 61.59 | 0.5453 | 714.0 | 572.9 | |
| 0 | 20 | 0 | 12 | 19.03 | 312.27 | -31.04 | 61.25 | 0.5581 | 931.0 | 673.5 | |
| 5 | 1641 | 3 | 1004 | 18.12 | 311.97 | -31.34 | 62.97 | 0.5571 | 326.0 | -344.4 | |
| 0 | 8 | 0 | 5 | 20.08 | 311.55 | -31.76 | 60.00 | 0.5730 | 754.0 | 583.2 | |
| 0 | 4 | 0 | 2 | 19.07 | 311.13 | -32.18 | 61.89 | 0.5728 | 393.0 | 539.2 | |
| 0 | 3 | 0 | 2 | 16.40 | 310.73 | -32.57 | 66.56 | 0.5651 | -948.0 | -843.2 | |
| 85 | -23 | 52 | -23 | 18.66 | 309.97 | -33.34 | 63.23 | 0.5854 | 1377.1 | 999999 | |
| -27 | -23 | -27 | -23 | 18.29 | 310.05 | -33.26 | 63.78 | 0.5826 | 999999 | 999999 | |
| 15 | -23 | 9 | -23 | 17.72 | 310.08 | -33.23 | 64.71 | 0.5796 | -2024.2 | 999999 | |
| 0 | 2 | 0 | 1 | 15.90 | 310.44 | -32.87 | 67.56 | 0.5670 | -749.0 | -832.1 | |
| 18 | -23 | 11 | -23 | 14.73 | 310.59 | -32.72 | 69.49 | 0.5602 | -1919.0 | 999999 | |
| 13 | -23 | 8 | -23 | 15.12 | 310.28 | -33.03 | 68.95 | 0.5659 | -1461.3 | 999999 | |
| 6 | -23 | 4 | -23 | 15.44 | 310.08 | -33.23 | 68.51 | 0.5699 | -1307.1 | 999999 | |
| -27 | -23 | -27 | -23 | 18.79 | 309.24 | -34.07 | 63.42 | 0.5953 | 999999 | 999999 | |
| 11 | -23 | 7 | -23 | 15.83 | 309.81 | -33.50 | 67.97 | 0.5750 | -1415.8 | 999999 | |
| 11 | -23 | 7 | -23 | 18.22 | 309.17 | -34.14 | 64.38 | 0.5935 | 1089.0 | 999999 | |
| 20 | -23 | 12 | -23 | 16.35 | 309.46 | -33.85 | 67.27 | 0.5817 | -1611.8 | 999999 | |
| 22 | -23 | 14 | -23 | 17.23 | 308.93 | -34.38 | 66.09 | 0.5922 | -1556.9 | 999999 | |
| 12 | -23 | 8 | -23 | 18.31 | 308.43 | -34.88 | 64.60 | 0.6032 | 1037.5 | 999999 | |
| 7 | -23 | 4 | -23 | 17.72 | 308.11 | -35.20 | 65.68 | 0.6047 | 587.6 | 999999 | |
| 0 | 5 | 0 | 3 | 15.82 | 308.41 | -34.90 | 68.61 | 0.5934 | -234.0 | -167.1 | |
| 0 | 5 | 0 | 3 | 13.85 | 308.73 | -34.58 | 71.75 | 0.5825 | -537.0 | -486.6 | |
| 24 | -23 | 15 | -23 | 18.48 | 307.57 | -35.74 | 64.75 | 0.6147 | 1258.4 | 999999 | |
| 14 | -23 | 9 | -23 | 18.49 | 306.79 | -36.52 | 65.10 | 0.6244 | 928.4 | 999999 | |
| 0 | 4 | 0 | 2 | 14.18 | 306.91 | -36.40 | 71.85 | 0.6077 | -644.0 | -421.6 | |
| 0 | 2 | 0 | 2 | 16.21 | 305.93 | -37.38 | 68.99 | 0.6268 | -625.0 | -508.8 | |
| 4 | 10 | 3 | 7 | 18.42 | 305.13 | -38.18 | 65.93 | 0.6446 | -948.2 | -708.3 | |
| 6 | 473 | 4 | 313 | 19.17 | 304.23 | -39.08 | 65.20 | 0.6583 | -1187.7 | -420.0 | |
| 0 | 8 | 0 | 5 | 15.79 | 304.71 | -38.60 | 70.07 | 0.6408 | -751.0 | -565.3 | |
| 13 | -48 | 9 | -48 | 18.86 | 303.72 | -39.59 | 65.86 | 0.6632 | -1250.5 | 999999 | |
| 8 | -48 | 5 | -48 | 19.71 | 303.47 | -39.84 | 64.72 | 0.6693 | 872.3 | 999999 | |
| 15 | -48 | 10 | -48 | 19.17 | 303.41 | -39.90 | 65.52 | 0.6680 | 452.9 | 999999 | |
| 9 | -48 | 6 | -48 | 18.31 | 303.49 | -39.82 | 66.74 | 0.6641 | -1329.3 | 999999 | |
| 4 | -48 | 3 | -48 | 18.05 | 303.29 | -40.02 | 67.19 | 0.6656 | -1004.4 | 999999 | |
| 25 | -48 | 17 | -48 | 16.59 | 303.45 | -39.86 | 69.29 | 0.6589 | -1253.8 | 999999 | |
| 5 | -48 | 4 | -48 | 17.39 | 303.14 | -40.17 | 68.21 | 0.6653 | -1034.6 | 999999 | |
| -55 | -48 | -55 | -48 | 17.03 | 303.18 | -40.13 | 68.73 | 0.6636 | 999999 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
