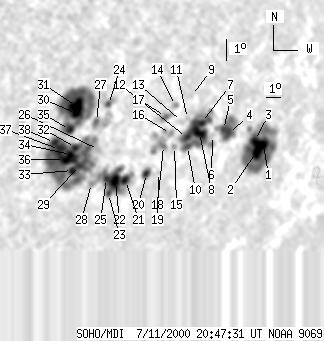

SOHO MDI 2000-07-11 20:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 191 | 1154 | 159 | 953 | -17.99 | 31.27 | 48.84 | 243.59 | 0.7981 | 167.8 | 43.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-11 20:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9 | 202 | 9 | 200 | -18.53 | 39.32 | 56.90 | 245.98 | 0.8716 | -365.0 | -177.4 | |
| 13 | -1 | 13 | -1 | -18.80 | 38.93 | 56.50 | 245.56 | 0.8691 | -713.8 | 999999 | |
| 9 | -1 | 8 | -1 | -18.31 | 38.53 | 56.10 | 245.98 | 0.8647 | -899.2 | 999999 | |
| 10 | 57 | 9 | 53 | -17.88 | 36.42 | 54.00 | 245.78 | 0.8463 | -630.7 | -394.4 | |
| 5 | -4 | 4 | -4 | -17.69 | 35.98 | 53.56 | 245.86 | 0.8420 | -897.8 | 999999 | |
| 0 | 3 | 0 | 2 | -17.90 | 35.31 | 52.88 | 245.38 | 0.8367 | -553.0 | -471.3 | |
| 5 | 137 | 4 | 120 | -17.29 | 34.30 | 51.87 | 245.73 | 0.8261 | -1000.5 | -629.0 | |
| 17 | -7 | 15 | -7 | -17.72 | 34.34 | 51.91 | 245.26 | 0.8277 | -834.5 | 999999 | |
| 0 | 2 | 0 | 2 | -16.09 | 33.18 | 50.75 | 246.74 | 0.8121 | -519.0 | -378.1 | |
| 5 | -7 | 4 | -7 | -18.28 | 33.76 | 51.33 | 244.40 | 0.8243 | -423.9 | 999999 | |
| 0 | 2 | 0 | 2 | -17.06 | 33.28 | 50.85 | 245.63 | 0.8161 | -498.0 | -480.7 | |
| 7 | -7 | 6 | -7 | -17.88 | 33.53 | 51.10 | 244.77 | 0.8210 | -1032.1 | 999999 | |
| 0 | 5 | 0 | 4 | -17.17 | 32.92 | 50.50 | 245.38 | 0.8131 | -421.0 | -398.7 | |
| 0 | 4 | 0 | 4 | -16.46 | 32.27 | 49.85 | 245.97 | 0.8048 | 409.0 | 462.5 | |
| 0 | 4 | 0 | 4 | -18.23 | 32.87 | 50.45 | 244.13 | 0.8161 | -608.0 | -482.1 | |
| 0 | 10 | 0 | 8 | -17.65 | 32.39 | 49.96 | 244.61 | 0.8097 | -47.0 | -287.2 | |
| 2 | 12 | 1 | 10 | -16.89 | 31.79 | 49.36 | 245.27 | 0.8016 | -679.3 | -486.5 | |
| 0 | 38 | 0 | 32 | -18.14 | 32.12 | 49.70 | 243.93 | 0.8090 | 218.0 | -455.3 | |
| 0 | 3 | 0 | 2 | -19.30 | 32.26 | 49.84 | 242.64 | 0.8143 | -125.0 | -179.8 | |
| 7 | 13 | 6 | 11 | -19.30 | 31.49 | 49.06 | 242.33 | 0.8072 | 292.9 | 100.4 | |
| 6 | 97 | 5 | 78 | -19.53 | 30.24 | 47.82 | 241.53 | 0.7967 | 632.5 | 206.0 | |
| 11 | -21 | 9 | -21 | -19.54 | 29.62 | 47.19 | 241.25 | 0.7909 | 1010.9 | 999999 | |
| 3 | -21 | 3 | -21 | -20.04 | 29.38 | 46.96 | 240.55 | 0.7907 | -169.7 | 999999 | |
| 2 | 11 | 2 | 9 | -16.18 | 28.05 | 45.63 | 244.60 | 0.7622 | 591.6 | 396.4 | |
| 4 | -21 | 4 | -21 | -19.38 | 29.00 | 46.58 | 241.16 | 0.7844 | -41.0 | 999999 | |
| 0 | 4 | 0 | 3 | -18.09 | 28.06 | 45.63 | 242.27 | 0.7700 | -299.0 | -285.8 | |
| 0 | 33 | 0 | 25 | -16.87 | 27.55 | 45.13 | 243.52 | 0.7599 | 834.0 | 276.0 | |
| 0 | 6 | 0 | 4 | -19.55 | 28.15 | 45.73 | 240.57 | 0.7770 | -395.0 | -446.5 | |
| 4 | 316 | 3 | 236 | -18.72 | 27.14 | 44.72 | 241.08 | 0.7636 | 570.8 | 343.4 | |
| 24 | 195 | 18 | 144 | -16.47 | 26.27 | 43.84 | 243.43 | 0.7450 | 1394.3 | 651.1 | |
| -30 | -30 | -30 | -30 | -16.17 | 26.18 | 43.76 | 243.76 | 0.7428 | 999999 | 999999 | |
| 4 | -29 | 3 | -29 | -17.93 | 26.65 | 44.22 | 241.80 | 0.7552 | 834.9 | 999999 | |
| 4 | -29 | 3 | -29 | -18.92 | 26.80 | 44.37 | 240.67 | 0.7611 | 591.0 | 999999 | |
| 4 | -29 | 3 | -29 | -18.22 | 26.45 | 44.02 | 241.35 | 0.7545 | 1058.9 | 999999 | |
| 8 | -30 | 6 | -30 | -17.13 | 26.06 | 43.63 | 242.50 | 0.7457 | 1210.5 | 999999 | |
| 9 | -29 | 7 | -29 | -18.41 | 26.16 | 43.74 | 240.97 | 0.7525 | 1104.6 | 999999 | |
| 12 | -29 | 9 | -29 | -17.97 | 25.74 | 43.31 | 241.31 | 0.7461 | 1261.2 | 999999 | |
| 7 | -29 | 5 | -29 | -17.65 | 25.35 | 42.93 | 241.51 | 0.7408 | 1292.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
