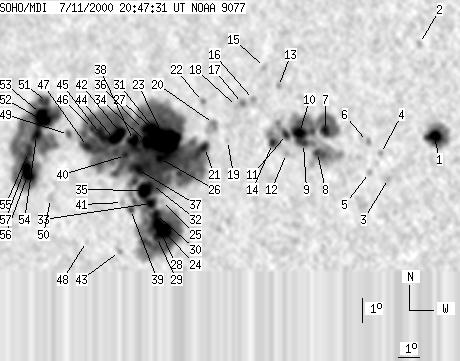

SOHO MDI 2000-07-11 20:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 403 | 2659 | 247 | 1613 | 17.84 | 309.40 | -33.02 | 64.05 | 0.5772 | -190.3 | -343.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-11 20:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18 | 73 | 10 | 39 | 18.92 | 322.52 | -19.90 | 51.11 | 0.4155 | 1555.6 | 755.6 | |
| 0 | 6 | 0 | 3 | 22.74 | 321.30 | -21.13 | 45.73 | 0.4662 | 955.0 | 702.9 | |
| 0 | 6 | 0 | 3 | 17.15 | 320.69 | -21.74 | 56.89 | 0.4242 | 817.0 | 793.6 | |
| 0 | 4 | 0 | 2 | 18.16 | 320.20 | -22.22 | 55.39 | 0.4385 | 815.0 | 648.1 | |
| 0 | 4 | 0 | 2 | 17.38 | 319.81 | -22.62 | 57.38 | 0.4375 | 591.0 | 604.0 | |
| 0 | 5 | 0 | 3 | 18.64 | 319.55 | -22.88 | 55.17 | 0.4506 | 873.0 | 636.8 | |
| 9 | 335 | 5 | 190 | 19.03 | 317.56 | -24.86 | 56.41 | 0.4790 | -1357.8 | -632.4 | |
| 4 | -7 | 2 | -7 | 18.12 | 317.34 | -25.09 | 58.31 | 0.4755 | -1271.0 | 999999 | |
| 4 | -7 | 2 | -7 | 18.47 | 316.64 | -25.79 | 58.29 | 0.4870 | -1493.0 | 999999 | |
| 15 | -7 | 8 | -7 | 18.91 | 316.38 | -26.05 | 57.70 | 0.4934 | -1436.5 | 999999 | |
| 5 | -7 | 3 | -7 | 18.81 | 315.79 | -26.64 | 58.39 | 0.5004 | -1109.2 | 999999 | |
| 0 | 5 | 0 | 3 | 18.04 | 315.92 | -26.51 | 59.70 | 0.4936 | -945.0 | -880.7 | |
| 0 | 4 | 0 | 2 | 20.77 | 315.05 | -27.38 | 55.60 | 0.5232 | 436.0 | 340.6 | |
| 6 | -7 | 3 | -7 | 18.43 | 315.20 | -27.23 | 59.57 | 0.5055 | -847.1 | 999999 | |
| 0 | 5 | 0 | 3 | 21.54 | 314.22 | -28.21 | 55.03 | 0.5387 | -637.0 | -500.3 | |
| 0 | 4 | 0 | 3 | 20.20 | 313.96 | -28.46 | 57.46 | 0.5327 | -687.0 | -542.1 | |
| 0 | 7 | 0 | 4 | 20.02 | 313.47 | -28.96 | 58.14 | 0.5376 | 733.0 | 572.0 | |
| 0 | 2 | 0 | 1 | 19.88 | 313.21 | -29.22 | 58.57 | 0.5401 | 543.0 | 540.7 | |
| 0 | 3 | 0 | 2 | 18.48 | 313.05 | -29.38 | 61.08 | 0.5336 | 706.0 | 621.1 | |
| 0 | 20 | 0 | 12 | 19.15 | 312.24 | -30.18 | 60.49 | 0.5479 | 900.0 | 714.9 | |
| 7 | 1683 | 4 | 1021 | 18.16 | 312.00 | -30.42 | 62.34 | 0.5454 | 502.7 | -334.6 | |
| 0 | 6 | 0 | 3 | 20.03 | 311.52 | -30.91 | 59.52 | 0.5621 | 759.0 | 545.8 | |
| 60 | -21 | 36 | -21 | 18.37 | 310.05 | -32.38 | 63.16 | 0.5717 | 1442.3 | 999999 | |
| 18 | -21 | 11 | -21 | 14.69 | 310.69 | -31.74 | 69.11 | 0.5467 | -1971.6 | 999999 | |
| 0 | 3 | 0 | 2 | 15.89 | 310.34 | -32.09 | 67.19 | 0.5564 | -894.0 | -769.6 | |
| 5 | -21 | 3 | -21 | 17.63 | 309.91 | -32.52 | 64.47 | 0.5699 | -1865.8 | 999999 | |
| -23 | -21 | -23 | -21 | 18.57 | 309.71 | -32.72 | 63.04 | 0.5770 | 999999 | 999999 | |
| 11 | -21 | 7 | -21 | 15.00 | 310.25 | -32.18 | 68.78 | 0.5539 | -1420.3 | 999999 | |
| 4 | -21 | 2 | -21 | 14.48 | 310.34 | -32.09 | 69.66 | 0.5507 | -1284.9 | 999999 | |
| 7 | -21 | 4 | -21 | 15.36 | 310.14 | -32.29 | 68.21 | 0.5568 | -1404.8 | 999999 | |
| 20 | -21 | 12 | -21 | 18.88 | 309.34 | -33.08 | 62.74 | 0.5832 | 1308.2 | 999999 | |
| 4 | -21 | 2 | -21 | 16.56 | 309.72 | -32.70 | 66.36 | 0.5674 | -1901.6 | 999999 | |
| 8 | -21 | 5 | -21 | 15.79 | 309.82 | -32.61 | 67.62 | 0.5629 | -1421.7 | 999999 | |
| 9 | -21 | 6 | -21 | 18.26 | 309.13 | -33.30 | 63.87 | 0.5829 | 1112.5 | 999999 | |
| 19 | -21 | 11 | -21 | 16.31 | 309.43 | -33.00 | 66.94 | 0.5703 | -1588.5 | 999999 | |
| -31 | -21 | -31 | -21 | 18.78 | 308.86 | -33.56 | 63.17 | 0.5888 | 999999 | 999999 | |
| 19 | -21 | 12 | -21 | 17.14 | 308.92 | -33.51 | 65.80 | 0.5806 | -1671.1 | 999999 | |
| 13 | -21 | 8 | -21 | 18.31 | 308.47 | -33.96 | 64.13 | 0.5916 | 1031.0 | 999999 | |
| 1 | -21 | 1 | -21 | 15.52 | 308.89 | -33.54 | 68.53 | 0.5743 | -716.0 | 999999 | |
| 5 | -21 | 3 | -21 | 17.69 | 308.20 | -34.23 | 65.28 | 0.5922 | 604.4 | 999999 | |
| 0 | 6 | 0 | 3 | 15.78 | 308.44 | -33.99 | 68.28 | 0.5812 | -433.0 | -237.8 | |
| 7 | -21 | 4 | -21 | 18.61 | 307.74 | -34.69 | 64.03 | 0.6021 | 1312.1 | 999999 | |
| 0 | 4 | 0 | 2 | 13.81 | 308.64 | -33.78 | 71.53 | 0.5715 | -758.0 | -589.4 | |
| 14 | -21 | 9 | -21 | 18.32 | 307.50 | -34.93 | 64.62 | 0.6038 | 1239.0 | 999999 | |
| 16 | -21 | 10 | -21 | 18.45 | 306.80 | -35.62 | 64.75 | 0.6131 | 930.6 | 999999 | |
| 3 | -21 | 2 | -21 | 18.72 | 306.27 | -36.15 | 64.59 | 0.6208 | 555.3 | 999999 | |
| 11 | -21 | 7 | -21 | 17.98 | 306.19 | -36.23 | 65.77 | 0.6187 | -915.4 | 999999 | |
| 0 | 3 | 0 | 2 | 14.14 | 306.94 | -35.48 | 71.60 | 0.5954 | -496.0 | -420.4 | |
| 3 | 7 | 2 | 5 | 18.42 | 305.09 | -37.33 | 65.57 | 0.6342 | -1006.4 | -815.5 | |
| 0 | 8 | 0 | 5 | 15.80 | 304.77 | -37.65 | 69.73 | 0.6289 | -792.0 | -629.3 | |
| 4 | 456 | 3 | 298 | 19.72 | 303.57 | -38.86 | 64.31 | 0.6577 | 903.4 | -431.4 | |
| 14 | -51 | 9 | -51 | 18.90 | 303.69 | -38.74 | 65.46 | 0.6531 | -1274.0 | 999999 | |
| 15 | -51 | 10 | -51 | 19.22 | 303.38 | -39.04 | 65.12 | 0.6579 | 446.8 | 999999 | |
| 11 | -51 | 8 | -51 | 18.31 | 303.42 | -39.01 | 66.43 | 0.6542 | -1311.5 | 999999 | |
| 12 | -51 | 8 | -51 | 17.60 | 303.18 | -39.25 | 67.57 | 0.6547 | -1111.0 | 999999 | |
| 22 | -51 | 15 | -51 | 16.67 | 303.36 | -39.07 | 68.90 | 0.6494 | -1374.5 | 999999 | |
| -56 | -51 | -56 | -51 | 17.03 | 303.16 | -39.26 | 68.43 | 0.6530 | 999999 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
