SOHO MDI 2000-07-11 20:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 25 | 0 | 14 | -12.91 | 324.58 | -17.85 | 134.32 | 0.4184 | -355.2 | -352.4 | |
|
previous
or next observation for the same group /

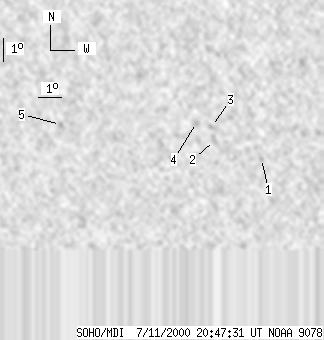

back to the solar disc SOHO MDI 2000-07-11 20:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -13.88 | 327.41 | -15.02 | 140.60 | 0.3980 | -837.0 | -661.7 | |
| 0 | 8 | 0 | 4 | -13.17 | 325.47 | -16.96 | 135.97 | 0.4104 | -716.0 | -639.0 | |
| 0 | 3 | 0 | 2 | -12.59 | 325.38 | -17.05 | 134.80 | 0.4049 | -780.0 | -580.8 | |
| 0 | 7 | 0 | 4 | -12.44 | 324.75 | -17.67 | 133.50 | 0.4105 | -335.0 | -295.6 | |
| 0 | 4 | 0 | 2 | -12.68 | 318.83 | -23.60 | 125.91 | 0.4841 | 892.0 | 644.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
