groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

9070 188 1141 166 1002 17.65 35.64 54.98 288.74 0.8239 265.3 246.4


previous   or   next   observation for the same group / back to the solar disc

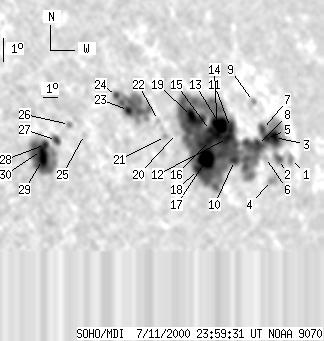

SOHO MDI 2000-07-11 23:59:31 UT
No observation available


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0 11 0 12 16.40 41.95 61.29 286.45 0.8793 759.0 548.1
2 3 13 3 13 16.45 41.04 60.38 286.60 0.8719 802.9 662.5
3 11 824 11 749 17.35 41.10 60.44 287.62 0.8731 546.6 371.7
4 0 11 0 11 15.66 39.98 59.32 285.77 0.8625 88.0 47.2
5 6 -3 6 -3 17.35 40.43 59.77 287.69 0.8676 894.1 999999
6 0 7 0 7 16.60 39.95 59.29 286.87 0.8630 736.0 545.9
7 5 -3 5 -3 17.73 40.31 59.64 288.14 0.8669 652.1 999999
8 7 -3 7 -3 17.12 39.57 58.91 287.51 0.8602 674.0 999999
9 0 5 0 5 18.90 40.22 59.56 289.49 0.8672 139.0 219.6
10 5 -3 5 -3 16.62 37.52 56.86 287.16 0.8418 -65.0 999999
11 10 -3 9 -3 17.96 37.86 57.20 288.70 0.8463 297.2 999999
12 12 -3 11 -3 17.53 37.42 56.76 288.25 0.8419 1282.4 999999
13 28 -3 26 -3 18.17 37.12 56.46 289.04 0.8399 813.0 999999
14 9 -3 8 -3 17.65 36.72 56.06 288.49 0.8357 1480.4 999999
15 4 -3 4 -3 17.92 36.33 55.67 288.87 0.8324 1075.2 999999
16 7 -3 6 -3 17.53 36.07 55.41 288.43 0.8296 1532.3 999999
17 27 -3 23 -3 16.78 35.52 54.85 287.60 0.8235 -608.0 999999
18 10 -3 8 -3 16.41 34.79 54.13 287.26 0.8161 -1222.1 999999
19 10 -3 9 -3 18.57 35.24 54.58 289.80 0.8232 1128.5 999999
20 0 5 0 4 17.94 33.89 53.22 289.27 0.8095 250.0 329.8
21 0 4 0 4 17.86 33.09 52.43 289.31 0.8016 -352.0 -134.3
22 0 6 0 5 18.53 32.90 52.24 290.17 0.8007 -257.0 -230.3
23 5 116 4 92 19.04 31.10 50.43 291.17 0.7837 -693.3 74.1
24 3 -23 2 -23 19.69 30.58 49.92 292.11 0.7798 -458.5 999999
25 0 4 0 3 18.22 27.96 47.30 290.83 0.7492 -567.0 -542.4
26 0 5 0 4 18.67 27.21 46.54 291.61 0.7420 -728.0 -466.9
27 5 12 4 9 18.06 26.21 45.55 291.07 0.7296 -648.0 -455.0
28 3 118 2 84 17.93 25.51 44.85 291.08 0.7215 -766.2 -606.9
29 18 -28 13 -28 17.33 25.15 44.49 290.36 0.7158 -1443.9 999999
30 -29 -28 -29 -28 17.70 25.20 44.54 290.85 0.7174 999999 999999


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
