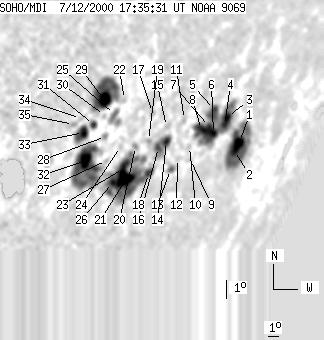

SOHO MDI 2000-07-12 17:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 152 | 964 | 179 | 1091 | -18.17 | 31.78 | 60.83 | 247.32 | 0.8973 | 87.2 | 8.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-12 17:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9 | 307 | 14 | 429 | -18.64 | 39.68 | 68.73 | 248.72 | 0.9490 | -360.2 | -183.8 | |
| 10 | -1 | 16 | -1 | -19.00 | 39.42 | 68.47 | 248.30 | 0.9480 | -575.0 | 999999 | |
| 7 | -1 | 10 | -1 | -17.42 | 37.38 | 66.43 | 249.53 | 0.9350 | -456.8 | 999999 | |
| 6 | -1 | 8 | -1 | -17.80 | 37.35 | 66.39 | 249.13 | 0.9353 | -307.3 | 999999 | |
| 3 | -1 | 4 | -1 | -17.02 | 35.78 | 64.83 | 249.62 | 0.9249 | -423.2 | 999999 | |
| 8 | -1 | 10 | -1 | -18.07 | 36.41 | 65.46 | 248.64 | 0.9302 | -463.8 | 999999 | |
| 4 | -1 | 5 | -1 | -17.73 | 35.77 | 64.82 | 248.86 | 0.9258 | -696.5 | 999999 | |
| 11 | -1 | 14 | -1 | -17.81 | 35.04 | 64.09 | 248.61 | 0.9214 | -709.2 | 999999 | |
| 0 | 4 | 0 | 5 | -19.07 | 34.86 | 63.90 | 247.23 | 0.9221 | -249.0 | -265.4 | |
| 0 | 3 | 0 | 3 | -18.48 | 34.35 | 63.40 | 247.74 | 0.9180 | -373.0 | -364.7 | |
| 0 | 6 | 0 | 7 | -17.26 | 33.12 | 62.17 | 248.75 | 0.9079 | -211.0 | -272.4 | |
| 0 | 3 | 0 | 4 | -18.94 | 33.54 | 62.59 | 247.06 | 0.9136 | -319.0 | -293.3 | |
| 1 | 8 | 1 | 10 | -19.38 | 33.20 | 62.25 | 246.50 | 0.9121 | -411.8 | -368.7 | |
| 7 | 40 | 8 | 45 | -18.12 | 32.04 | 61.09 | 247.56 | 0.9020 | -760.7 | -562.0 | |
| 0 | 5 | 0 | 6 | -17.46 | 31.66 | 60.70 | 248.17 | 0.8980 | -289.0 | -367.5 | |
| 4 | -14 | 5 | -14 | -18.33 | 31.48 | 60.53 | 247.18 | 0.8984 | -687.7 | 999999 | |
| 0 | 5 | 0 | 5 | -16.77 | 30.12 | 59.17 | 248.52 | 0.8854 | -260.0 | -190.4 | |
| 5 | 222 | 6 | 235 | -19.43 | 31.29 | 60.34 | 245.94 | 0.8992 | 3.0 | -32.9 | |
| 0 | 5 | 0 | 6 | -17.97 | 30.43 | 59.48 | 247.29 | 0.8902 | -44.0 | -102.7 | |
| 0 | 6 | 0 | 6 | -18.16 | 29.47 | 58.52 | 246.82 | 0.8835 | -352.0 | -89.3 | |
| 15 | -18 | 16 | -18 | -19.57 | 29.46 | 58.51 | 245.28 | 0.8864 | 860.2 | 999999 | |
| 0 | 5 | 0 | 5 | -16.06 | 27.59 | 56.64 | 248.61 | 0.8640 | 96.0 | 227.1 | |
| 14 | -18 | 15 | -18 | -19.07 | 29.01 | 58.06 | 245.69 | 0.8820 | 868.4 | 999999 | |
| 0 | 3 | 0 | 3 | -18.08 | 28.25 | 57.29 | 246.55 | 0.8739 | -245.0 | -260.9 | |
| 0 | 22 | 0 | 21 | -16.66 | 27.10 | 56.15 | 247.79 | 0.8615 | 438.0 | 127.7 | |
| 4 | -18 | 5 | -18 | -19.63 | 28.45 | 57.50 | 244.91 | 0.8791 | -624.2 | 999999 | |
| 0 | 3 | 0 | 3 | -18.63 | 27.45 | 56.50 | 245.70 | 0.8690 | -83.0 | -57.8 | |
| 0 | 6 | 0 | 5 | -17.57 | 26.85 | 55.90 | 246.70 | 0.8616 | 434.0 | 346.0 | |
| 15 | 111 | 14 | 104 | -15.96 | 26.07 | 55.12 | 248.26 | 0.8511 | 1130.4 | 531.6 | |
| 0 | 2 | 0 | 2 | -16.65 | 26.36 | 55.41 | 247.57 | 0.8553 | 169.0 | 286.0 | |
| 3 | 8 | 3 | 8 | -16.99 | 25.71 | 54.76 | 246.99 | 0.8507 | 633.5 | 547.5 | |
| 16 | 154 | 16 | 146 | -18.52 | 25.83 | 54.88 | 245.30 | 0.8557 | 1055.6 | 343.6 | |
| 10 | 29 | 9 | 27 | -17.29 | 25.12 | 54.17 | 246.46 | 0.8465 | 956.1 | 610.3 | |
| 0 | 3 | 0 | 2 | -16.67 | 24.65 | 53.70 | 247.01 | 0.8407 | 810.0 | 691.9 | |
| 0 | 4 | 0 | 4 | -16.90 | 24.25 | 53.30 | 246.62 | 0.8379 | 130.0 | 302.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
